OptoLink Handling instructions

Follow these instructions carefully to ensure correct use of your OptoLink connector and penetrator harnesses.

Assembly

OptoLink A-CCP to OptoLink A-FCR, BCR or CCR receptacle

Step 1:
Inspect the connector face and O-rings
Grease the O-rings with Molykote 111

Step 2:
Inspect the connector surface. If the connector surface is dirty, follow the OptoLink maintenance instructions overleaf

Step 3:

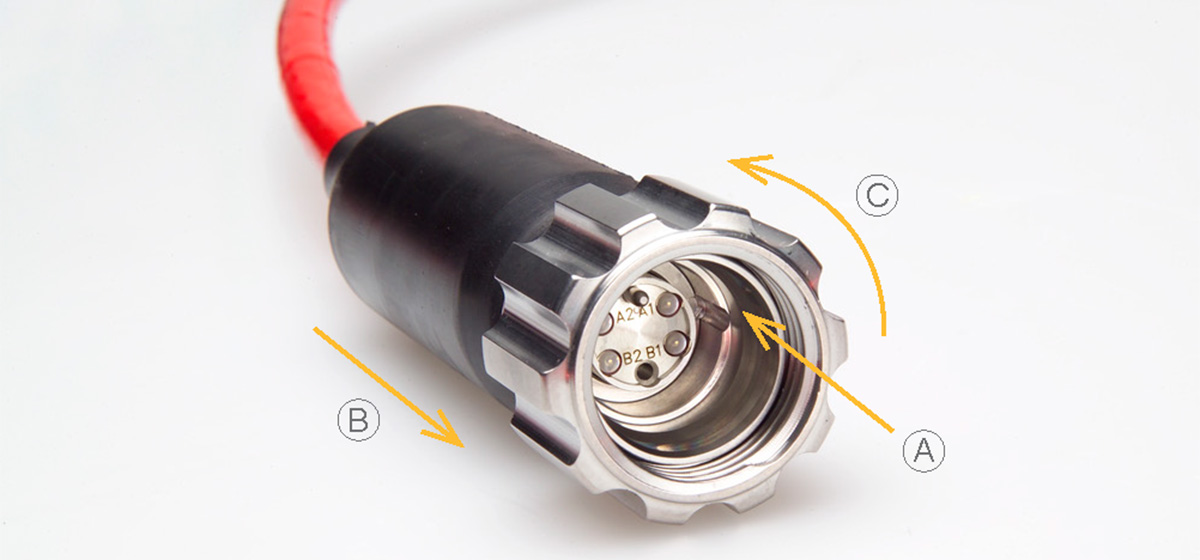

Visually align the key way on the CCP connector with the key pin tip on the receptacle before mating (illustration A)
Do not twist the connector to align it during mating

Step 4:
Push to mate the connector (illustration B)

Step 5:
Whilst turning the locking sleeve (illustration C)

Note: The connector must be hand tightened

Maintenance

OptoLink A-CCP, A-FCR, BCR or CCR receptacle

If the optical lenses are dirty, clean with a dry cotton swab and isopropyl alcohol
If the optical lenses are greasy, clean with an isopropyl alcohol soaked cotton swab followed by a dry cotton swab
Repeat the cleaning process if necessary
O-rings must be checked before mating/mounting and will require replacing if they show signs of damage
Always grease O-rings with Molykote 111

Note: Always install dust caps when connectors are unmated

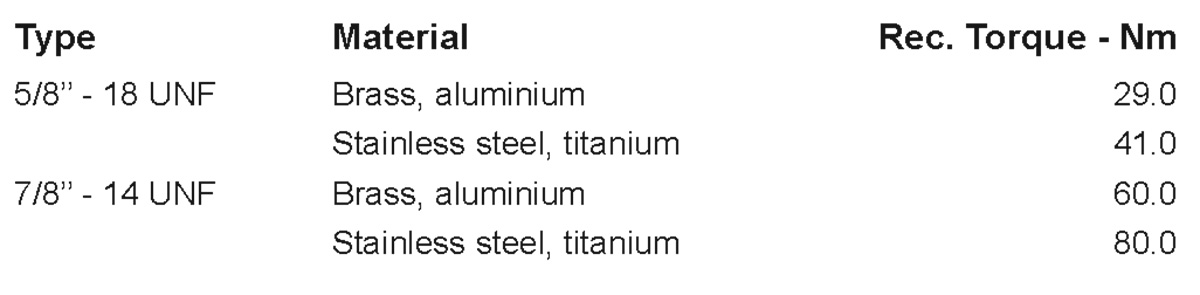

OptoLink Penetrator harnesses
