SubConn Circular - 6, 8 and 10 contacts

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating: 600 V DC/AC rms
• Current rating: 10 A per contact (max 50 A per connector)
• Insulation resistance: > 200 MΩ
• Contact resistance: < 0.01 Ω
• Wet matings: > 500
• Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 1,400 bar, 20,300 psi (mated), 800 bar, 11,600 psi (open face)
• Depth rating PEEK: 300 bar, 4,350 psi

Material specifications

• Connector body: Chloroprene rubber
• Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
• Contacts: Gold plated brass UNS - C36000
• Location pin: Stainless steel AISI 303
• O-rings: Nitrile
• Locking sleeves: POM or stainless steel
• Snap rings: Stainless steel AISI 302
• 6 and 8 conductor inline cable (2 ft, 60 cm or 16 ft, 5 m): 16 AWG, 1.31 mm2 synthetic rubber
• 10 conductor inline cable (2 ft, 60 cm or 16 ft, 5 m): 18 AWG, 0.82 mm2 synthetic rubber
• Bulkhead and PBOF leads (1 ft, 30 cm): 18 AWG, 0.82 mm2 coloured PTFE
• OM leads (3", 7 cm): 18 AWG, 0.82 mm2 coloured PTFE

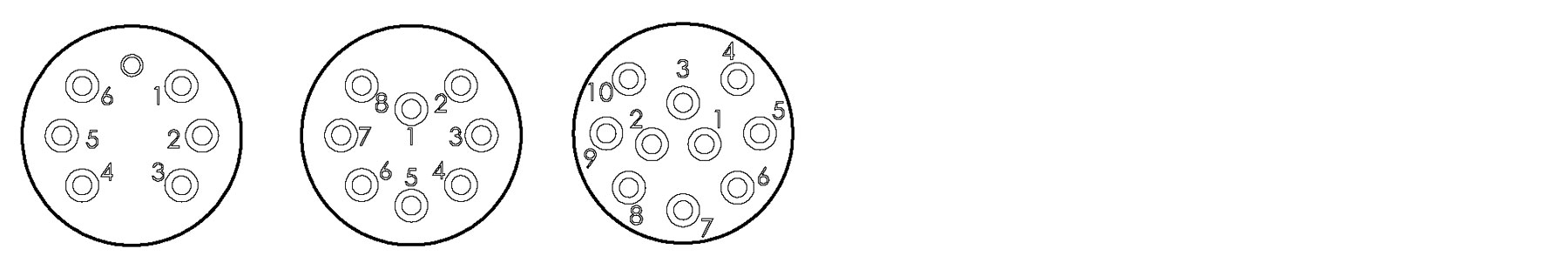

Face view (male)

Inline cable colour code

1: Black
2: White
3: Red
4: Green
5: Orange
6: Blue
7: White/black
8: Red/black
9: Green/black
10: Orange/black
