SubConn Circular - Mini 1 contact

Request a quote for: SubConn Circular - Mini 1 contact

Get your non-binding quote today and see how we can help.

Request a quote

Please complete the form below, and we will contact you shortly to discuss a solution to your challenge and provide you with a quote.

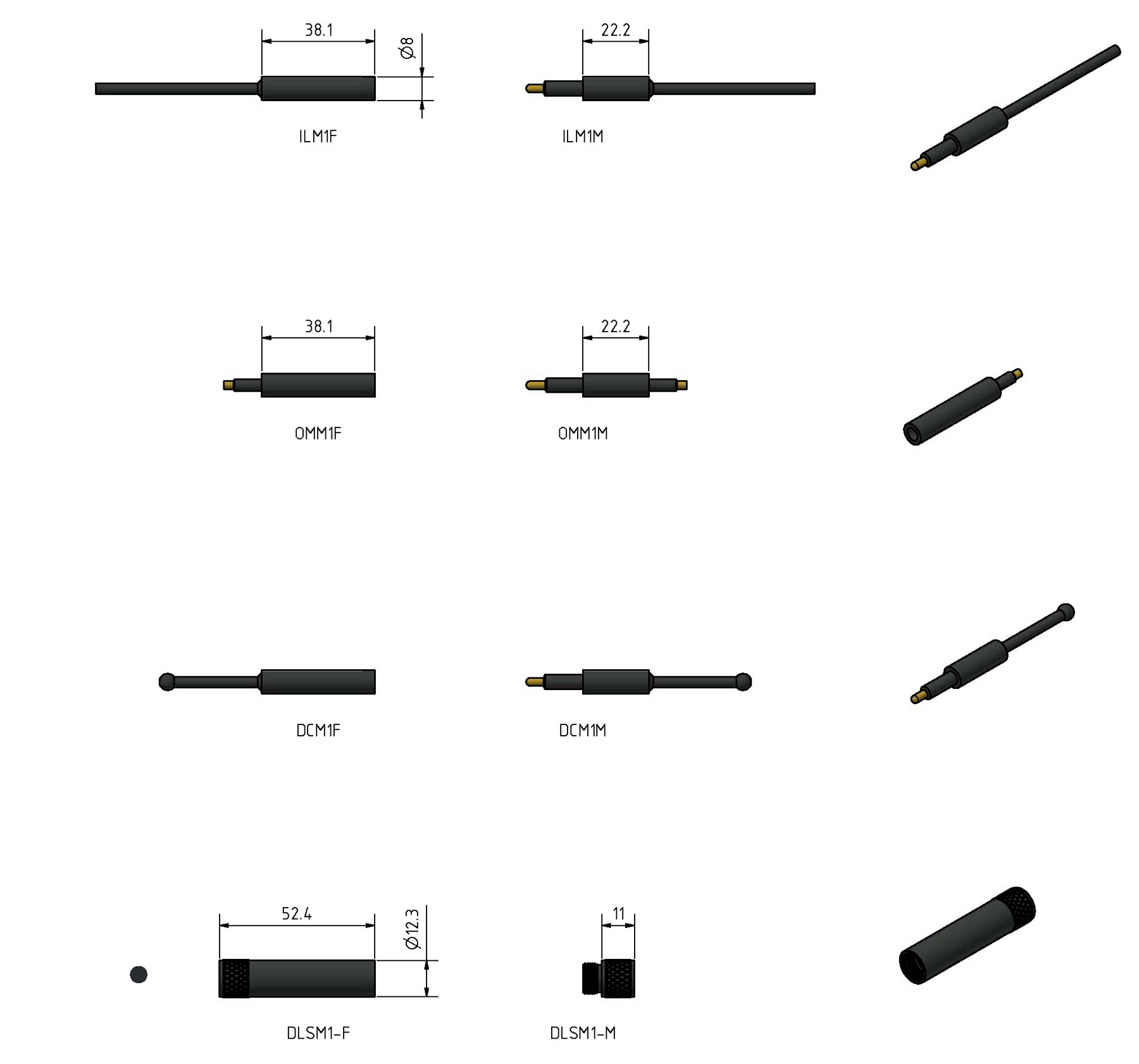

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 600 V DC/AC rms
  • Current rating: 10 A
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Design depth rating: 1,400 bar, 20,000 psi
  • Qualified pressure tested: 800 bar, 11,600 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Contacts: Gold plated brass UNS - C36000
  • Locking sleeves: POM
  • Inline cable (2 ft, 60 cm): 18 AWG, 0.82 mm2 synthetic rubber


Inline cable colour code

1: Black


Nominal cable outside diameter (OD)

Chloroprene rubber cable 0.142", 3.6 mm

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

AT6F.stp AT6M.stp AT8F.stp AT8M.stp AT12M.stp AT12F.stp AT16F.stp AT16M.stp AT25F.stp AT25M.stp
BH10M.stp BH12F 3-4 SS.stp BH12F.stp BH12M 3-4 SS.stp BH12M.stp BH16F 3-4 SS.stp BH16M 3-4 SS.stp BH25M.stp BH2M.stp BH3F.stp BH3M.stp BH4F.stp BH4M.stp BH5F.stp BH6F.stp BH6M.stp BH8F.stp BH25F.stp BH8M.stp BH5M.stp BH10F.stp BH2F.stp
DC10F.stp DC10M.stp DC12F.stp DC12M.stp DC16F.stp DC16M.stp DC25F.stp DC25M.stp DC2F.stp DC2M.stp DC3F.stp DC3M.stp DC4F.stp DC4M.stp DC5F.stp DC5M.stp DC6F.stp DC6M.stp DC8F.stp DC8M.stp DCM1F.stp DCM1M.stp
IL10F.stp IL10M.stp IL12F.stp IL12M.stp IL16F.stp IL16M.stp IL25F.stp IL25M.stp IL2F.stp IL2M.stp IL3F.stp IL3M.stp IL4F.stp IL4M.stp IL5F.stp IL5M.stp IL6F.stp IL6M.stp IL8F.stp IL8M.stp ILM1F.stp ILM1M.stp
OM10F.stp OM10M.stp OM12F.stp OM12M.stp OM16F.stp OM16M.stp OM2F.stp OM2M.stp OM3F.stp OM3M.stp OM4F.stp OM4M.stp OM5F.stp OM5M.stp OM6F.stp OM6M.stp OM8F.stp OM8M.stp OMM1F.stp OMM1M.stp
PBOF10F.stp PBOF10M.stp PBOF12F.stp PBOF12M.stp PBOF16F.stp PBOF16M.stp PBOF25F.stp PBOF25M.stp PBOF2F.stp PBOF2M.stp PBOF3F.stp PBOF3M.stp PBOF4F.stp PBOF4M.stp PBOF5F.stp PBOF5M.stp PBOF6F.stp PBOF6M.stp PBOF8F.stp PBOF8M.stp
ILRA10F.stp ILRA10M.stp ILRA6F.stp ILRA6M.stp ILRA8F.stp ILRA8M.stp
DCS2M.stp DCS2M-1.stp ILS2M.stp ILS2M-1.stp

X_B files

AT12F.x_b AT12M.x_b AT16F.x_b AT16M.x_b AT25F.x_b AT25M.x_b AT6F.x_b AT6M.x_b AT8F.x_b AT8M.x_b
BH10F.x_b BH10M.x_b BH12F 3-4 SS.x_b BH12F.x_b BH12M 3-4 SS.x_b BH12M.x_b BH16F 3-4 SS.x_b BH16M 3-4 SS.x_b BH25F.x_b BH25M.x_b BH2F.x_b BH2M.x_b BH3F.x_b BH3M.x_b BH4F.x_b BH4M.x_b BH5F.x_b BH5M.x_b BH6F.x_b BH6M.x_b BH8F.x_b BH8M.x_b
DC10F.x_b DC10M.x_b DC12F.x_b DC12M.x_b DC16F.x_b DC16M.x_b DC25F.x_b DC25M.x_b DC2F.x_b DC2M.x_b DC3F.x_b DC3M.x_b DC4F.x_b DC4M.x_b DC5F.x_b DC5M.x_b DC6F.x_b DC6M.x_b DC8F.x_b DC8M.x_b DCM1F.x_b DCM1M.x_b
IL10F.x_b IL10M.x_b IL12F.x_b IL12M.x_b IL16F.x_b IL16M.x_b IL25F.x_b IL25M.x_b IL2F.x_b IL2M.x_b IL3F.x_b IL3M.x_b IL4F.x_b IL4M.x_b IL5F.x_b IL5M.x_b IL6F.x_b IL6M.x_b IL8F.x_b IL8M.x_b ILM1F.x_b ILM1M.x_b
OM10F.x_b OM10M.x_b OM12F.x_b OM12M.x_b OM16F.x_b OM16M.x_b OM2F.x_b OM2M.x_b OM3F.x_b OM3M.x_b OM4F.x_b OM4M.x_b OM5F.x_b OM5M.x_b OM6F.x_b OM6M.x_b OM8F.x_b OM8M.x_b OMM1F.x_b OMM1M.x_b
PBOF10F.x_b PBOF10M.x_b PBOF12F.x_b PBOF12M.x_b PBOF16F.x_b PBOF16M.x_b PBOF25F.x_b PBOF25M.x_b PBOF2F.x_b PBOF2M.x_b PBOF3F.x_b PBOF3M.x_b PBOF4F.x_b PBOF4M.x_b PBOF5F.x_b PBOF5M.x_b PBOF6F.x_b PBOF6M.x_b PBOF8F.x_b PBOF8M.x_b
ILRA10F.x_b ILRA10M.x_b ILRA6F.x_b ILRA6M.x_b ILRA8F.x_b ILRA8M.x_b
DCS2M.x_b DCS2M-1.x_b ILS2M.x_b ILS2M-1.x_b

Related files

Circular Mini - 1 contact.pdf
