SubConn Circular Splitconn - 2 contacts

Request a quote for: SubConn Circular Splitconn - 2 contacts

Get your non-binding quote today and see how we can help.

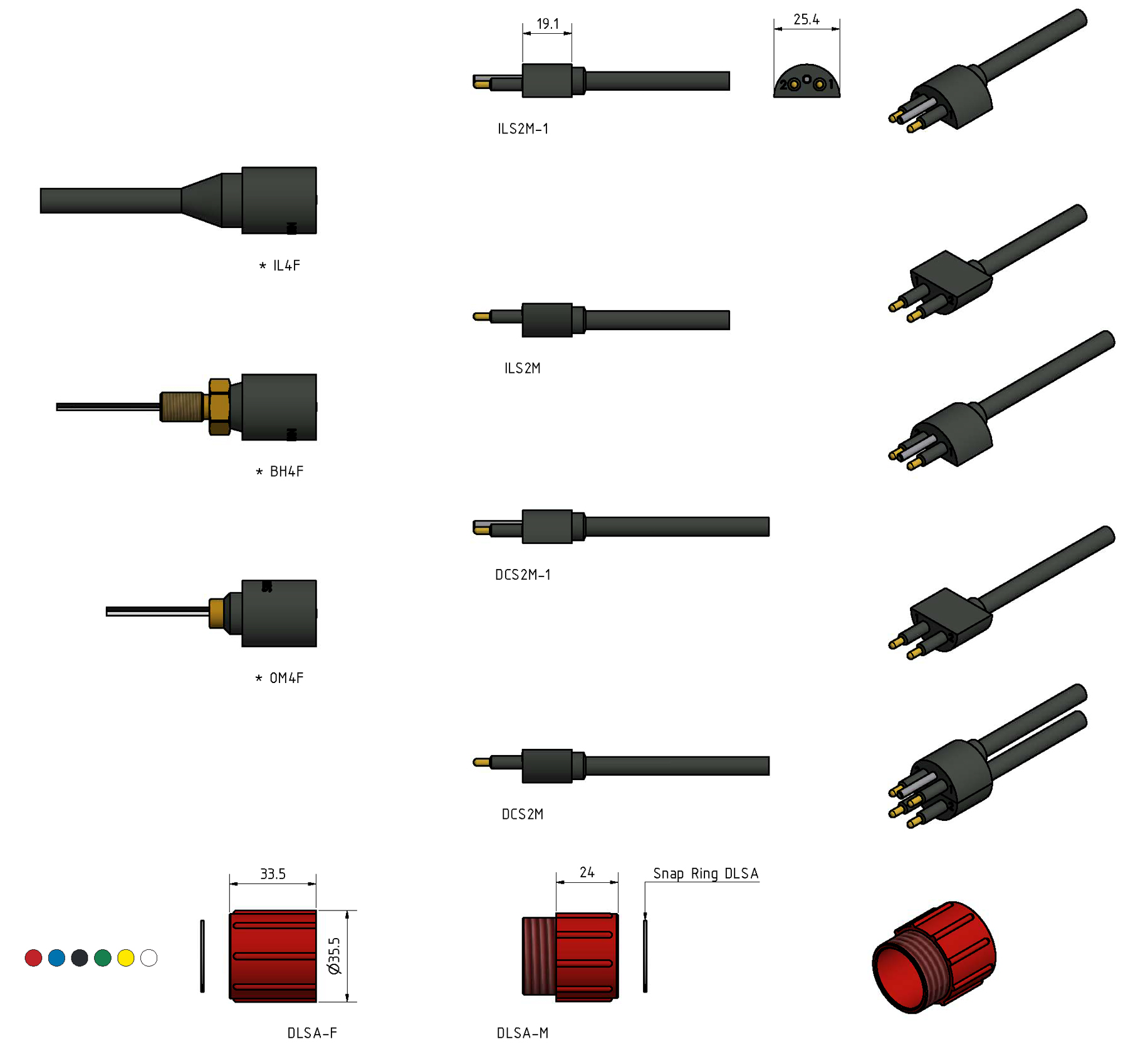

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 600 V DC/AC rms
  • 2 contacts current rating: 10 A per contact (max 20 A per connector)
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Design depth rating: 1,400 bar, 20,000 psi
  • Qualified pressure tested: 800 bar, 11,600 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Contacts: Gold plated brass UNS - C36000
  • Location pin: Stainless steel AISI 303
  • Locking sleeves: POM
  • Snap rings: Stainless steel AISI 302
  • 2 conductor inline cable (2 ft, 60 cm): 18 AWG, 0.82 mm2 synthetic rubber

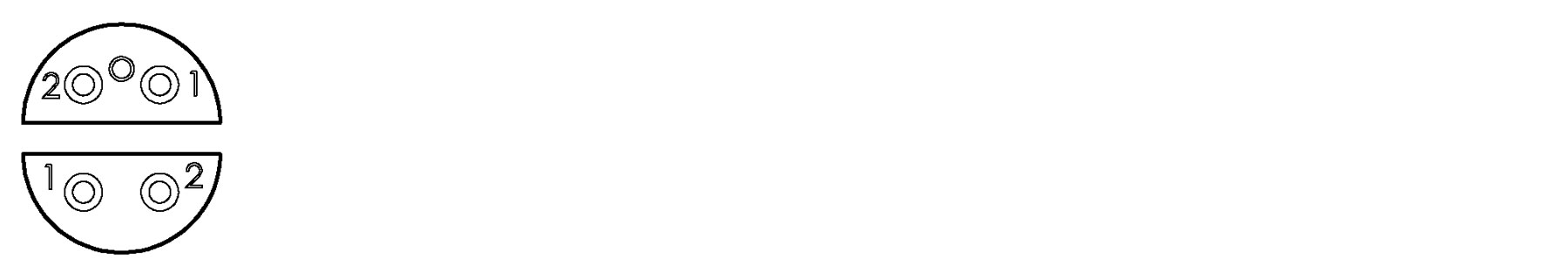

Face view (male)


Inline cable colour code

1: Black
2: White


Nominal cable outside diameter (OD)

2 conductor cable 0.276’’, 7 mm

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.
