SubConn HF Coax - 50 ohm Coax

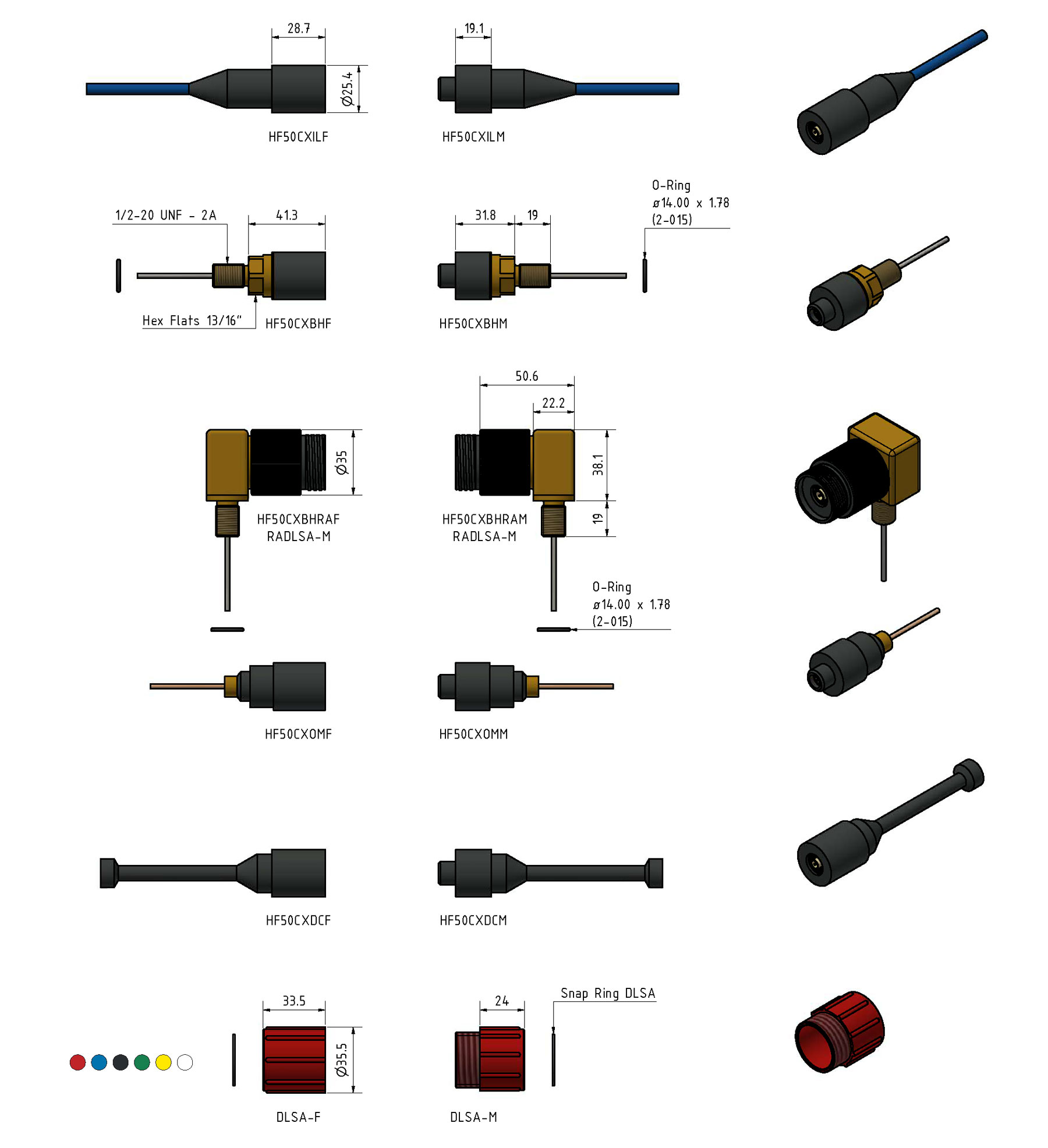

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating on coax insert only: 800 V, max nominal voltage acc. to MIL

Frequency*: 0.3 GHz / 0.6 GHz / 0.9 GHz / 1.2 GHz / 1.5 GHz / 1.8 GHz / 2.1 GHz / 2.4 GHz / 2.7 GHz / 3.0 GHz
Attenuation*: 5.0 dB / 7.7 dB / 9.9 dB / 11.6 dB / 13.4 dB / 15.3 dB / 17.3 dB / 19.3 dB / 21 dB / 22.5 dB

• Recommended max frequency: 3.0 GHz
• Insulation resistance: > 200 Mohm
• Contact resistance: < 0.01 ohm
• Wet matings: N/A (dry mating only)
• Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 600 bar, 8,700 psi

Material specifications

• Connector body: Chloroprene rubber
• Bulkhead body: Brass, stainless steel, titanium or anodised aluminium
• Coax contacts: Gold plated contacts
• O-rings: Nitrile
• Locking sleeves: POM or stainless steel
• Snap rings: Stainless steel AISI 302
• Inline cable (2 ft, 60 cm): PUR jacket cable with RG58 coax
• Coax bulkhead leads (3.3 ft, 100 cm): RG316 coax

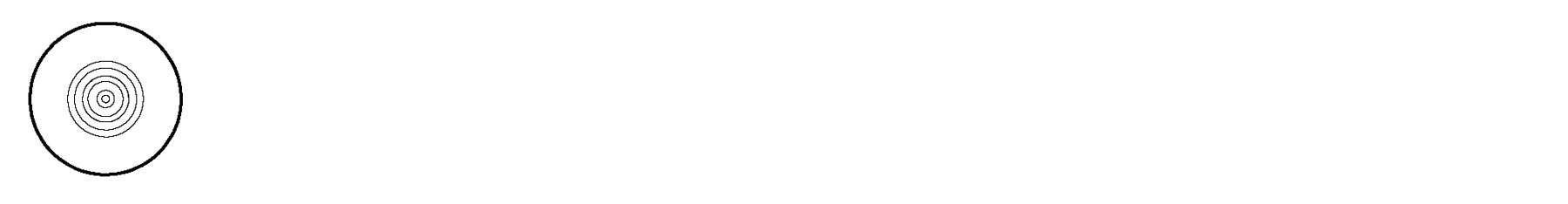

Face view (male)

Nominal cable outside diameter (OD)

RG58 PUR cable 0.220'', 5.59 mm
