SubConn HF Coax - 50 ohm Coax/Electric

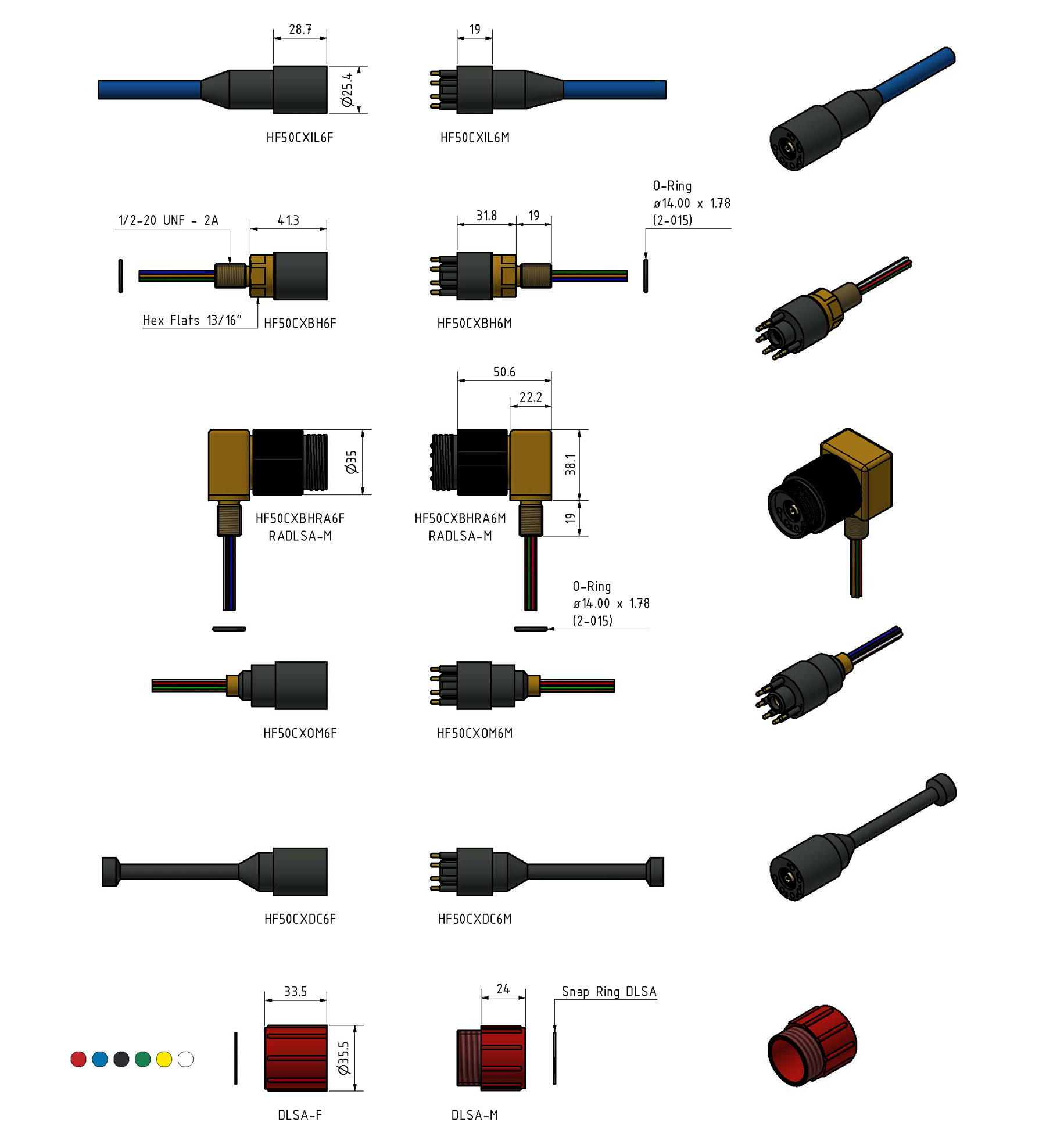

Drawing information
Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)
Connector specifications
- Voltage rating on electric contacts 300 V DC/AC rms
- Current rating on electric contacts 5 A per contact (max 20 A per connector)
- Voltage rating on coax 800 V, max nominal voltage
Frequency*: 0.3 GHz / 0.6 GHz / 0.9 GHz / 1.2 GHz / 1.5 GHz / 1.8 GHz / 2.1 GHz / 2.4 GHz / 2.7 GHz / 3.0 GHz
Attenuation*: 5.0 dB / 7.7 dB / 9.9 dB / 11.6 dB / 13.4 dB / 15.3 dB / 17.3 dB / 19.3 dB / 21 dB / 22.5 dB
- Recommended max frequency: 3.0 GHz
- Insulation resistance: > 200 MΩ
- Contact resistance: < 0.01 Ω
- Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
- Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
- Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
- Qualified pressure tested: 600 bar, 8,700 psi (mated)
Material specifications
- Connector body: Chloroprene rubber
- Bulkhead body: Brass, stainless steel, titanium or anodised aluminium
- Bulkhead body (RA): Brass, stainless steel, titanium or anodised aluminium
- Power contacts: Female sockets in gold plated brass UNS - C36000, Male contacts in gold plated beryllium copper
- Coax contacts: Gold plated contacts
- O-rings: Nitrile
- Locking sleeves: POM or stainless steel
- Locking sleeves (RA): RADLSA-M (black POM)
- Snap rings: Stainless steel AISI 302
- Inline cable (2 ft, 60 cm): RG58 coax and 6 x 20 AWG, 0.52 mm2 conductors
- Coax and 6-contact bulkhead leads (3.3 ft, 100 cm): RG316 coax and 6 x 20 AWG, 0.52 mm2 coloured PTFE

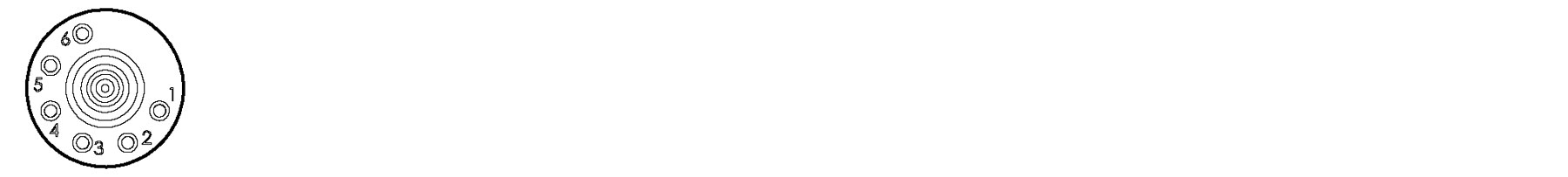

Face view (male)
Inline cable colour code
1: Black
2: White
3: Red
4: Green
5: Orange
6: Blue
Additional information
* All frequency and attenuation values are based on a 10 meter cable assembly test including 2 bulkhead connectors (50 Ω).
BNC connector for RG316 coax leads use Amphenol 031-315-RFX or equivalent.
BNC connector for RG58 coax cable use Amphenol 112116 or equivalent.
Recommended SMB termination for Coax, check in Technical Information chapter.
SubConn® Coax connectors are designed for dry mating only. The Coax series is not suitable for open-face pressure or waterblock applications. Locking sleeves are required. Avoid greasing the actual coax part.
Additional information
*All frequency and attenuation values are based on a 10 meter cable assembly test including 2 bulkhead connectors (50 ohm).
BNC connector for RG316 coax leads use Amphenol 031-315-RFX or equivalent.
BNC connector for RG58 coax cable use Amphenol 112116 or equivalent.
Recommended SMB termination for Coax, see SubConn - Technical information.
Important! Dry mating only!
SubConn® Coax connectors are designed for dry mating only. The Coax series is not suitable for open-face pressure or waterblock applications. Locking sleeves are required. Avoid greasing the actual coax part.
The minimum bending radius for inline cables is 100 mm.
