SubConn Ethernet Circular - 8 contacts

Request a quote for: SubConn Ethernet Circular - 8 contacts

Get your non-binding quote today and see how we can help.

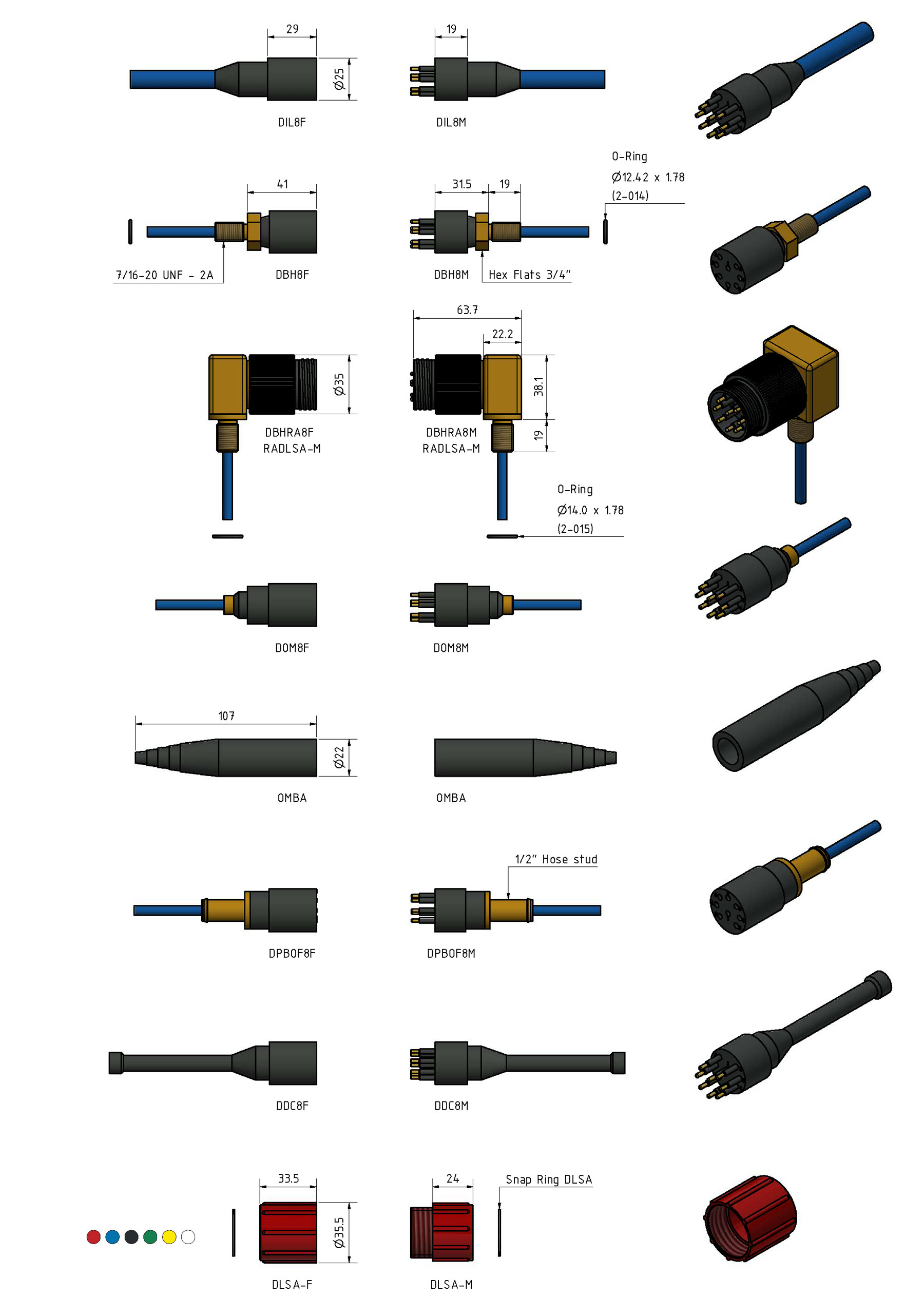

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 250 V DC/AC rms
  • Data rate: 1 Gbit/s (up to 75 m)
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 600 bar, 8,700 psi
  • Depth rating PEEK: 300 bar, 4,350 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
  • Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
  • O-rings: Nitrile
  • Locking sleeves: POM or stainless steel
  • Snap rings: Stainless steel AISI 302
  • Inline cable (3.3 ft, 100 cm): 4 pair 24 AWG, 0.20 mm2 PUR
  • Bulkhead and PBOF leads (3.3 ft, 100 cm): CAT 5E patch cable incl. RJ 45 connector (not installed)
  • OM leads (3") , 7 cm: CAT 5E patch cable

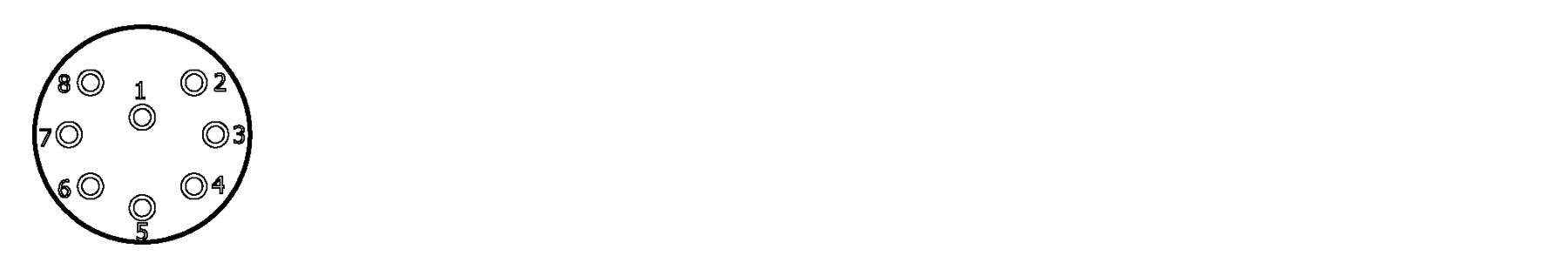

Face view (male)



Inline cable colour code

1-2: Brown, Brown/white*
3-4: Blue, Blue/white*
5-6: Orange, Orange/white*
7-8: Green, Green/white*

* Twisted pairs


Nominal cable outside diameter (OD)

PUR  cable 0.410”, 10.4 mm


Additional information

Inline connector is available in shallow water version.
Standard RJ45 cannot be mounted on inline cable and will require a RJ45 Phoenix connector or equivalent.
