SubConn Ethernet Low Profile - 9 contacts

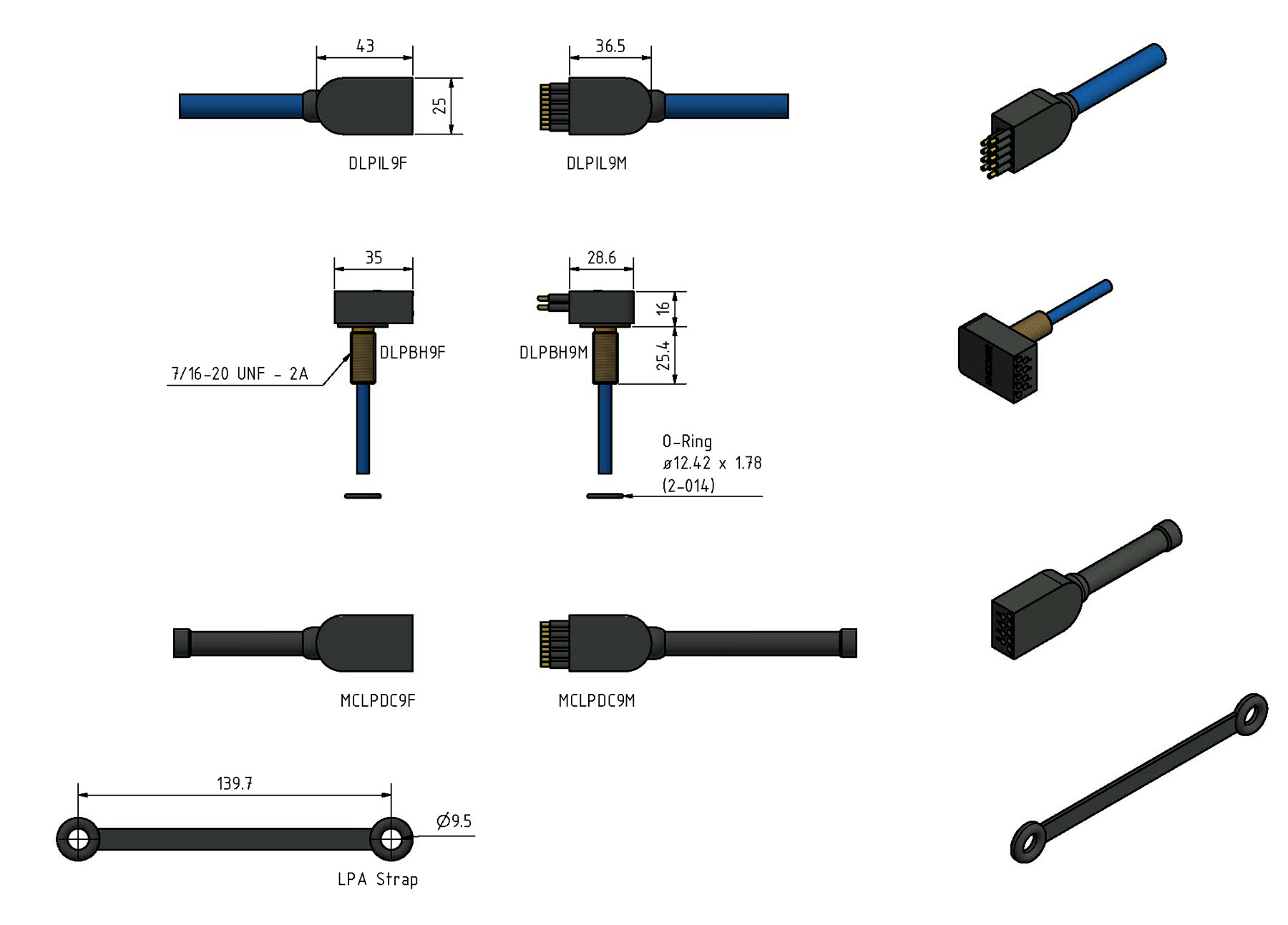

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating: 250 V DC/AC rms
• Data rate: 1 Gbit/s (up to 75 m)
• Insulation resistance: > 200 MΩ
• Contact resistance: < 0.01 Ω
• Wet matings: > 500
• Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 600 bar, 8,700 psi (open face)
• Depth rating PEEK: 300 bar, 4,350 psi

Material specifications

• Connector body: Chloroprene rubber
• Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
• Contacts: Female sockets in gold plated brass UNS - C36000, Male contacts in gold plated beryllium copper
• O-rings: Nitrile
• Locking straps: Chloroprene rubber
• Inline cable (3.3 ft, 100 cm): 4 pair 24 AWG, 0.20 mm2 PUR, Screen: Tinned copper braid
• Bulkhead leads (3.3 ft, 100 cm): CAT 5E patch cable incl. RJ 45 connector (not installed)

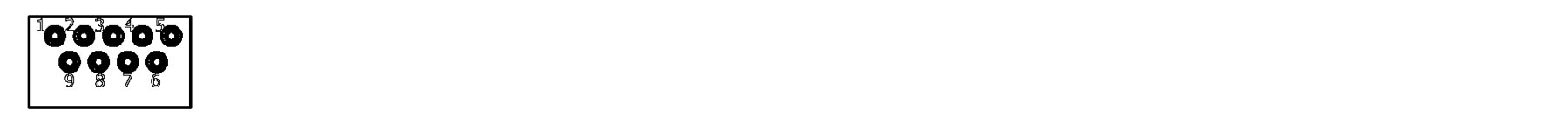

Face view (male)


Inline cable colour code

1-2: Brown, Brown/white*
3-4: Blue, Blue/white*
5-6: Orange, Orange/white*
7-8: Green, Green/white*
9: Screen (black wire on bulkhead)

* Twisted pairs

Additional information

Standard RJ45 cannot be mounted on inline cable and will require a RJ45 Phoenix connector or equivalent.
