SubConn Ethernet Metal Shell 2000 - 13 contacts

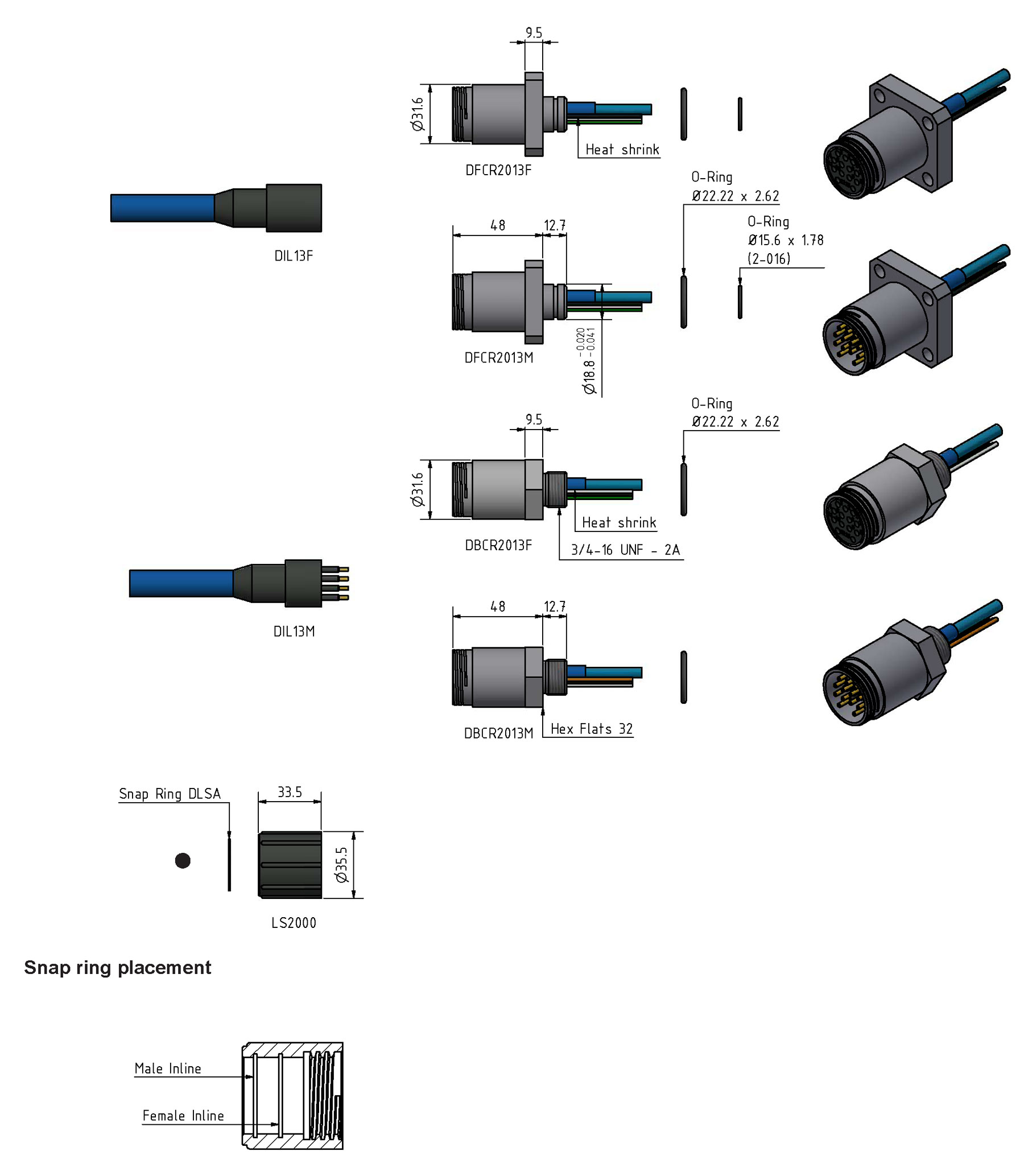

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating: 600 V DC/AC rms
• Voltage rating on data wire: 250 V DC/AC rms
• Current rating on power wire: 4 A per contact (max 16 A per connector)
• Data rate: 1 Gbit/s
• Insulation resistance: > 200 MΩ
• Contact resistance: < 0.01 Ω
• Wet matings: > 500
• Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 600 bar, 8,700 psi (open face)

Material specifications

• Connector body: Chloroprene rubber
• Connector housing: Stainless steel AISI 316 (other materials on request)
• Contacts: Female sockets in gold plated brass UNS - C36000, Male contacts in gold plated beryllium copper
• O-rings: Nitrile
• Locking sleeves: POM or stainless steel
• Snap rings: Stainless steel AISI 302
• Bulkhead leads (3.3 ft, 100 cm): CAT 5E patch cable, 4 x 20 AWG, 0.52 mm2 coloured PTFE incl. RJ 45 connector (not installed)

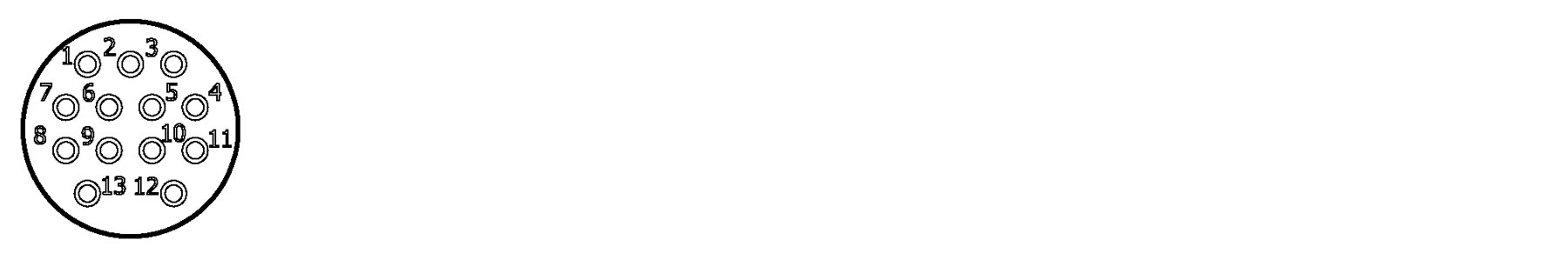

Face view (male)


Inline cable colour code

1: Black
2: Screen (orange wire on bulkhead)
3: White
4-5: Brown, Brown/white*
6-7: Blue, Blue/white*
8-9: Orange, Orange/white*
10-11: Green, Green/white*
12: Red
13: Green

* Twisted pairs
