SubConn Ethernet Metal Shell 2000 - 8 contacts

Request a quote for: SubConn Ethernet Metal Shell 2000 - 8 contacts

Get your non-binding quote today and see how we can help.

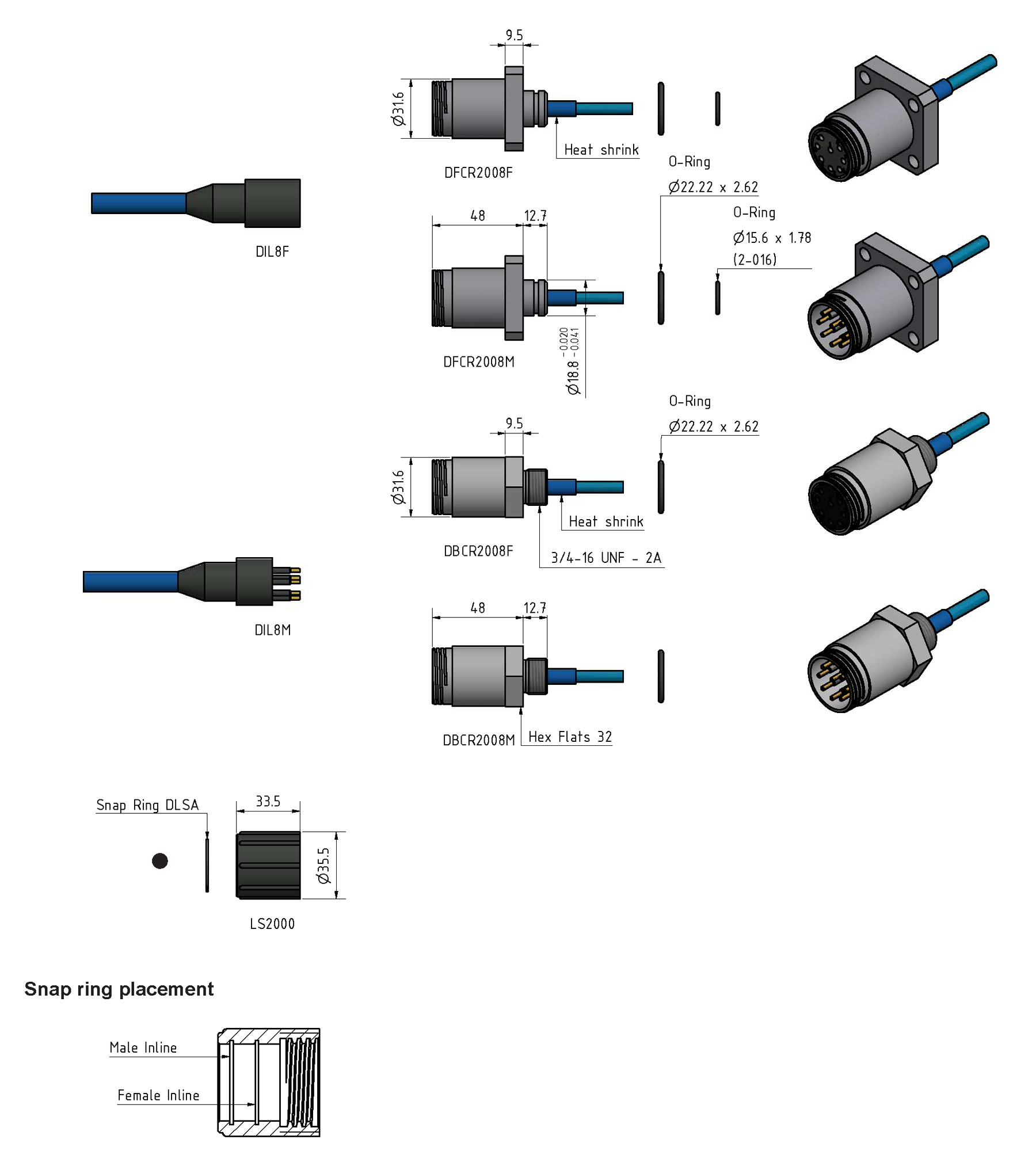

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 250 V DC/AC rms
  • Data rate: 1 Gbit/s (up to 75 m)
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 600 bar, 8,700 psi



Material specifications

  • Connector body: Chloroprene rubber
  • Connector housing: Stainless steel AISI 316 (other materials on request)
  • Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
  • O-rings: Nitrile
  • Locking sleeves: POM or stainless steel
  • Snap rings: Stainless steel AISI 302
  • Bulkhead leads (3.3 ft, 100 cm): CAT 5E patch cable incl. RJ 45 connector (not installed)

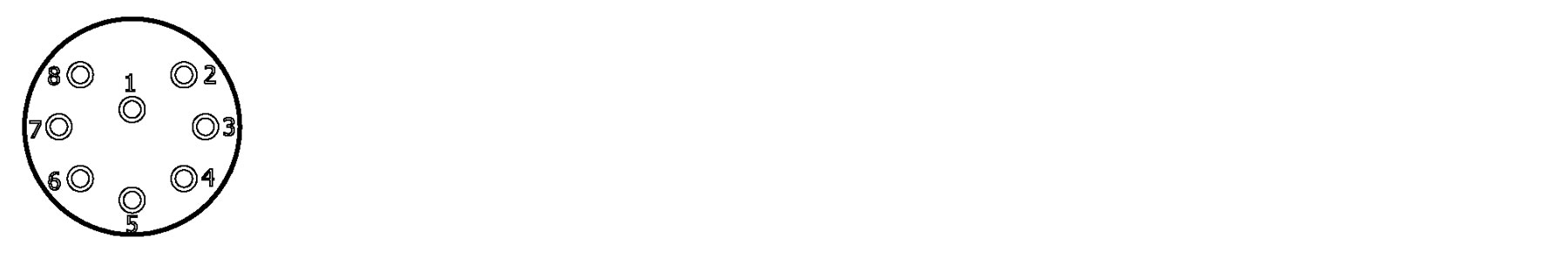

Face view (male)




Inline cable colour code

1-2: Brown, Brown/white*
3-4: Blue, Blue/white*
5-6: Orange, Orange/white*
7-8: Green, Green/white*

* Twisted pairs

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
