SubConn Power Ethernet Circular - 13 contacts

Request a quote for: SubConn Power Ethernet Circular - 13 contacts

Get your non-binding quote today and see how we can help.

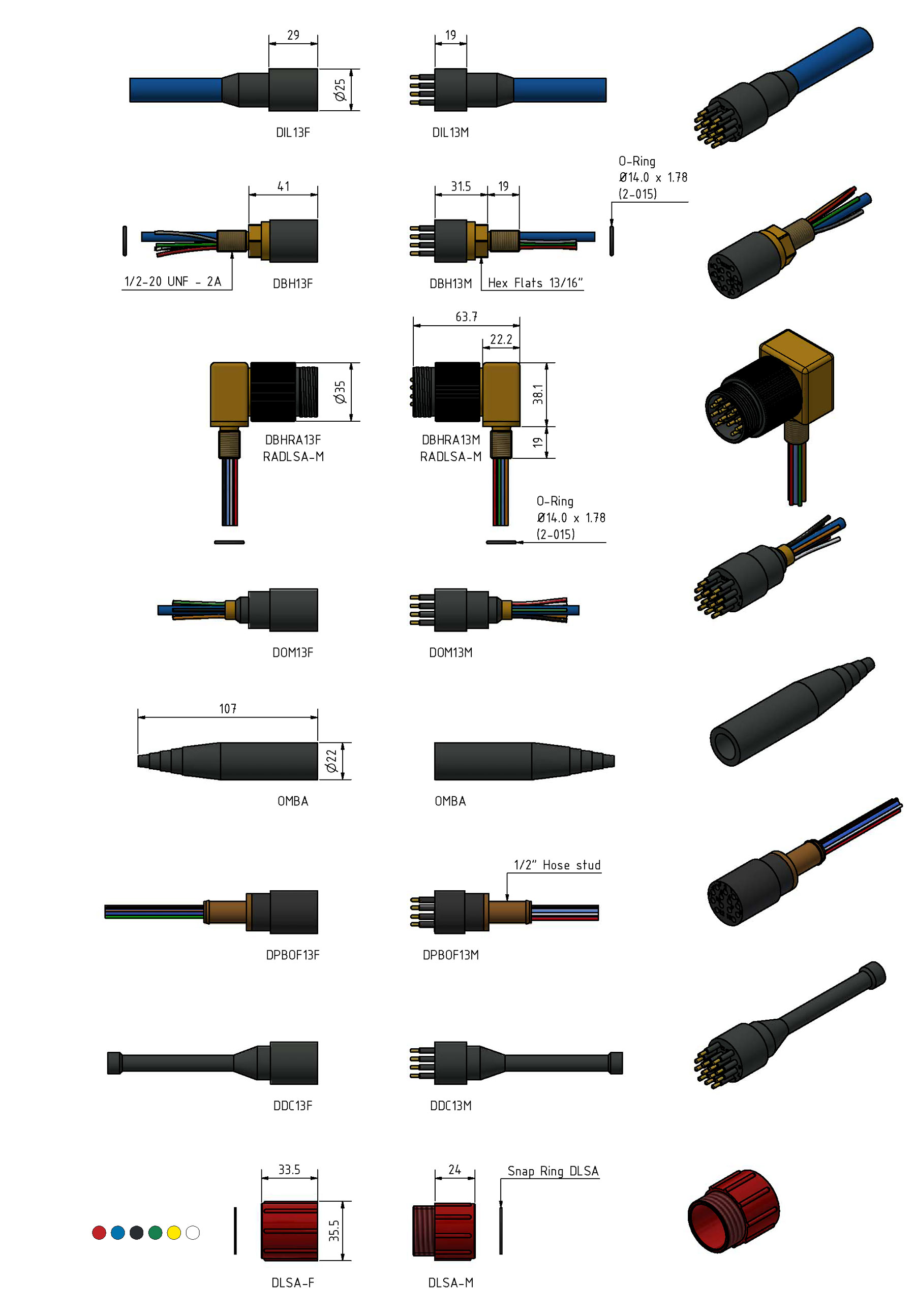

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)



Connector specifications

  • Voltage rating: 600 V DC/AC rms
  • Voltage rating on data wire: 250 V DC/AC rms
  • Current rating on power wire: 4 A per contact (max 16 A per connector)
  • Data rate: 1 Gbit/s (up to 75 m)
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 600 bar, 8,700 psi
  • Depth rating: PEEK 300 bar, 4,350 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
  • Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
  • O-rings: Nitrile
  • Locking sleeves: POM or stainless steel
  • Snap rings: Stainless steel AISI 302
  • Inline cable (3.3 ft, 100 cm): 4 pair 24 AWG, 0.20 mm2 PUR, Power conductors 4 x 18 AWG, 0.82 mm2, Screen: Tinned copper braid
  • Bulkhead and PBOF leads (3.3 ft, 100 cm): CAT 5E patch cable, 5 x 20 AWG, 0.52 mm2 coloured PTFE incl. RJ 45 connector (not installed)
  • OM leads (3", 7 cm): CAT 5E patch cable, 5 x 20 AWG, 0.52 mm2 coloured PTFE

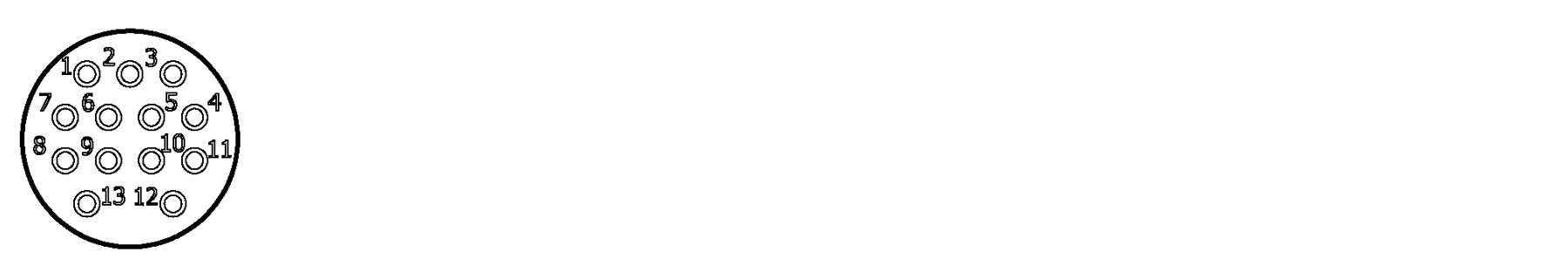

Face view (male)




Inline cable colour code

1: Black
2: Screen (orange wire on bulkhead)
3: White
4-5: Brown, Brown/white*
6-7: Blue, Blue/white*
8-9: Orange, Orange/white*
10-11: Green, Green/white*
12: Red
13: Green

* Twisted pairs


Nominal cable outside diameter (OD)

PUR cable 0.550'', 13.97 mm


Additional information

Standard RJ45 cannot be mounted on inline cable and will require a RJ45 Phoenix connector or equivalent.

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
