SubConn Low Profile - 5 contacts

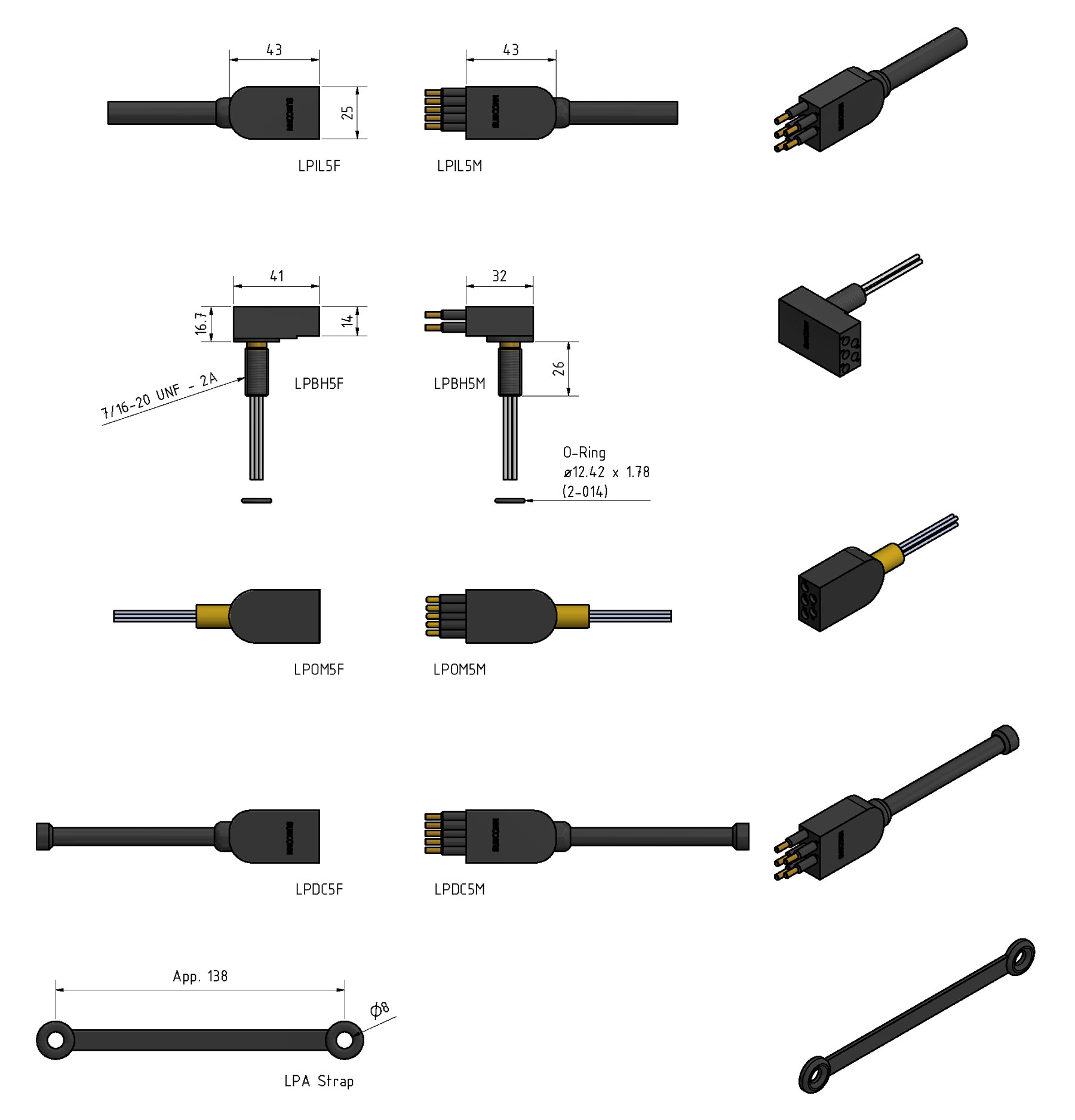

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating: 600 V DC/AC rms
• Current rating: 10 A per contact (max 40 A per connector)
• Insulation resistance: > 200 Mohm
• Contact resistance: < 0.01 ohm
• Wet matings: > 500 (open face rated)
• Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 800 bar, 11,600 psi
• Depth rating PEEK: 300 bar, 4,350 psi

Material specifications

• Connector body: Chloroprene rubber
• Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
• Contacts: Gold plated brass UNS - C36000
• O-rings: Nitrile
• Locking strap: Chloroprene rubber
• Inline cable (2 ft, 60 cm): 18 AWG, 0.82 mm2 synthetic rubber
• Bulkhead leads (1 ft, 30 cm): 18 AWG, 0.82 mm2 coloured PTFE
• OM leads (3", 7 cm): 18 AWG, 0.82 mm2 coloured PTFE

Face view (male)

Inline cable colour code

1: Black
2: White
3: Red
4: Green
5: Orange

Nominal cable outside diameter (OD)

5 conductor cable 0.465’’, 11.8 mm
