SubConn Metal Shell 2000 - 10 and 12 contacts

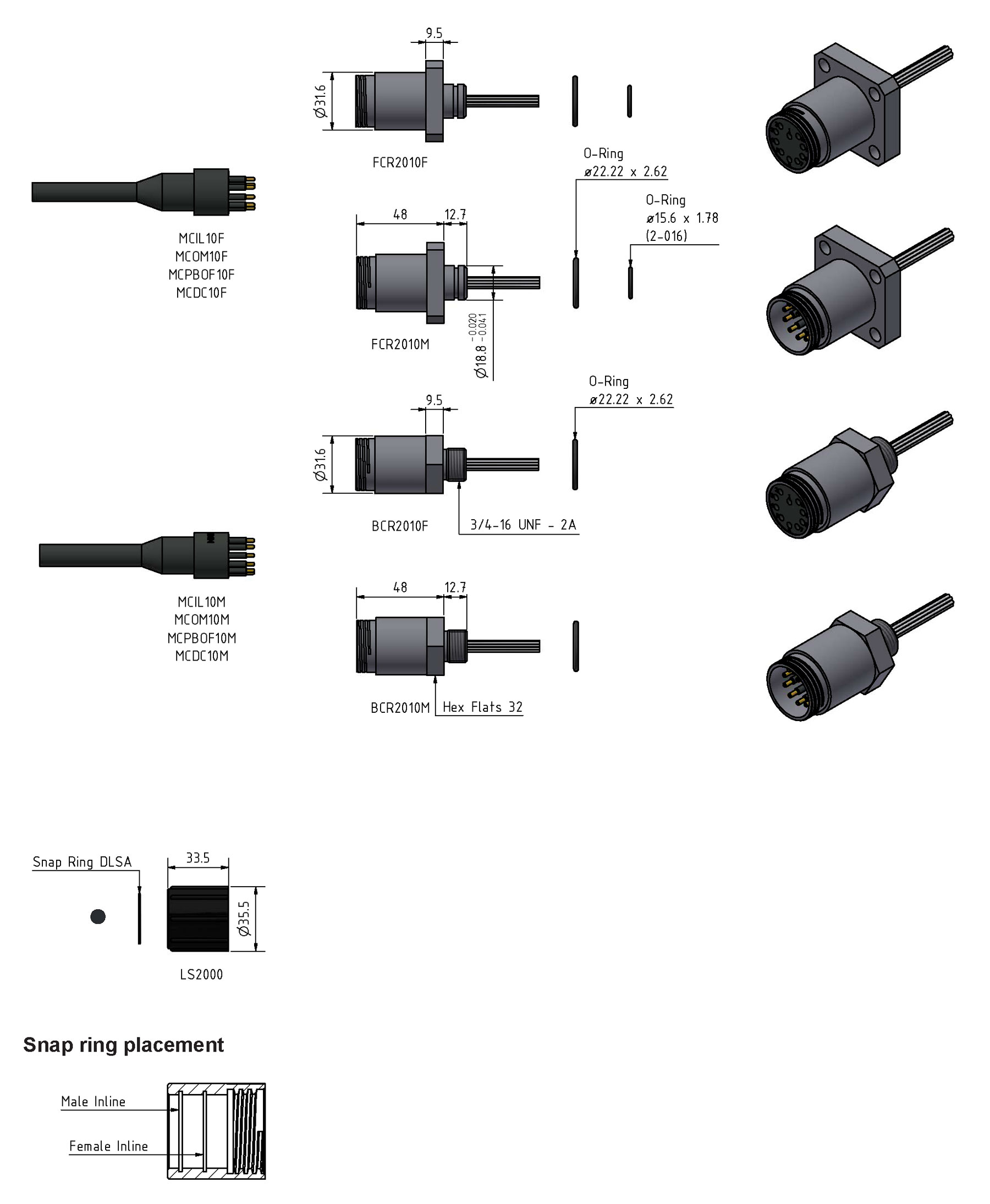

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

10 and 12 contacts voltage rating: 300 V DC/AC rms
10 and 12 contacts current rating: 5 A per contact (max 30 A per connector)
Insulation resistance: > 200 MΩ
Contact resistance: < 0.01 Ω
Wet matings: > 500
Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
Qualified pressure tested: 1,400 bar, 20,300 psi (mated), 800 bar, 11,600 psi (open face)

Material specifications

Connector body: Chloroprene rubber
Connector housing: Stainless steel AISI 316 (other materials on request)
10 and 12 contacts: Female sockets in gold plated brass UNS - C36000, Male contacts in gold plated beryllium copper
Location pin: Stainless steel AISI 303
O-rings: Nitrile
Locking sleeves: POM or stainless steel
Snap rings: Stainless steel AISI 302
10 and 12 contact bulkhead leads (1 ft, 30 cm): 20 AWG, 0.52 mm2 white tagged PTFE

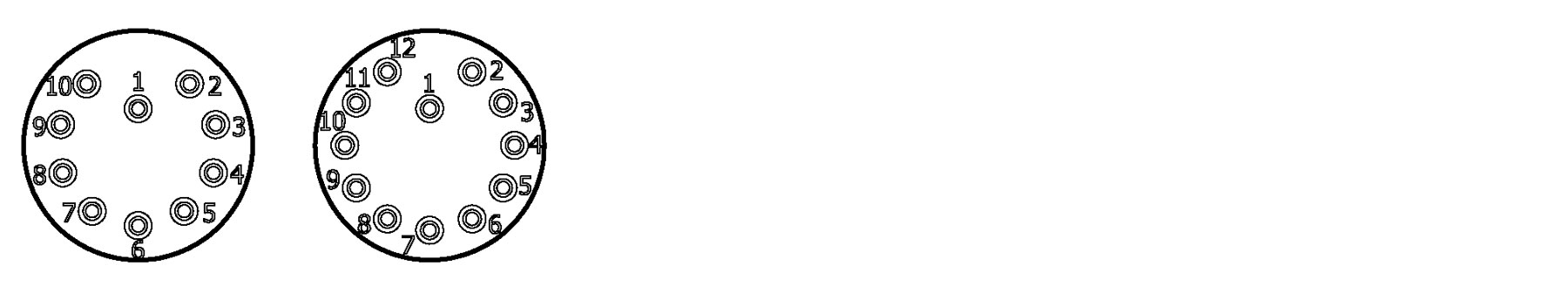

Face view (male)

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.
