SubConn Micro Circular - 1 contact

Request a quote for: SubConn Micro Circular - 1 contact

Get your non-binding quote today and see how we can help.

Request a quote

Please complete the form below, and we will contact you shortly to discuss a solution to your challenge and provide you with a quote.

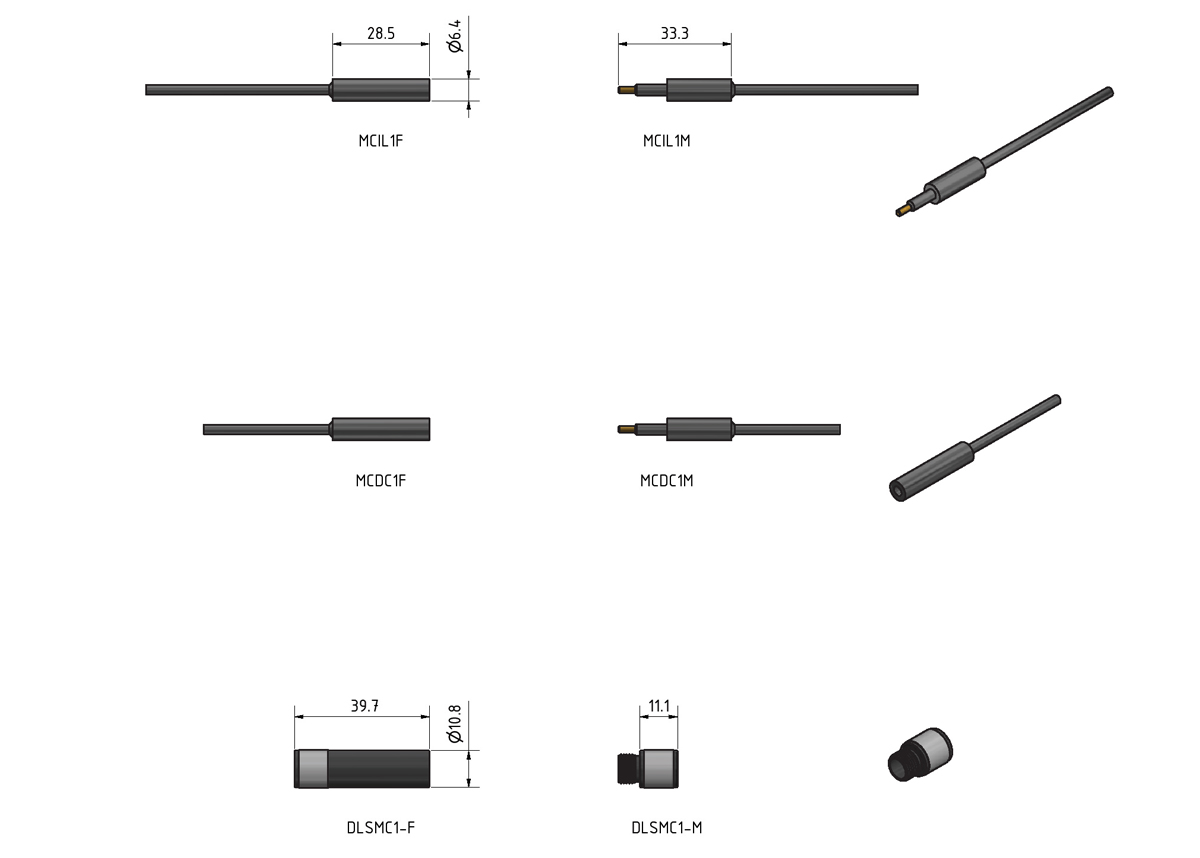

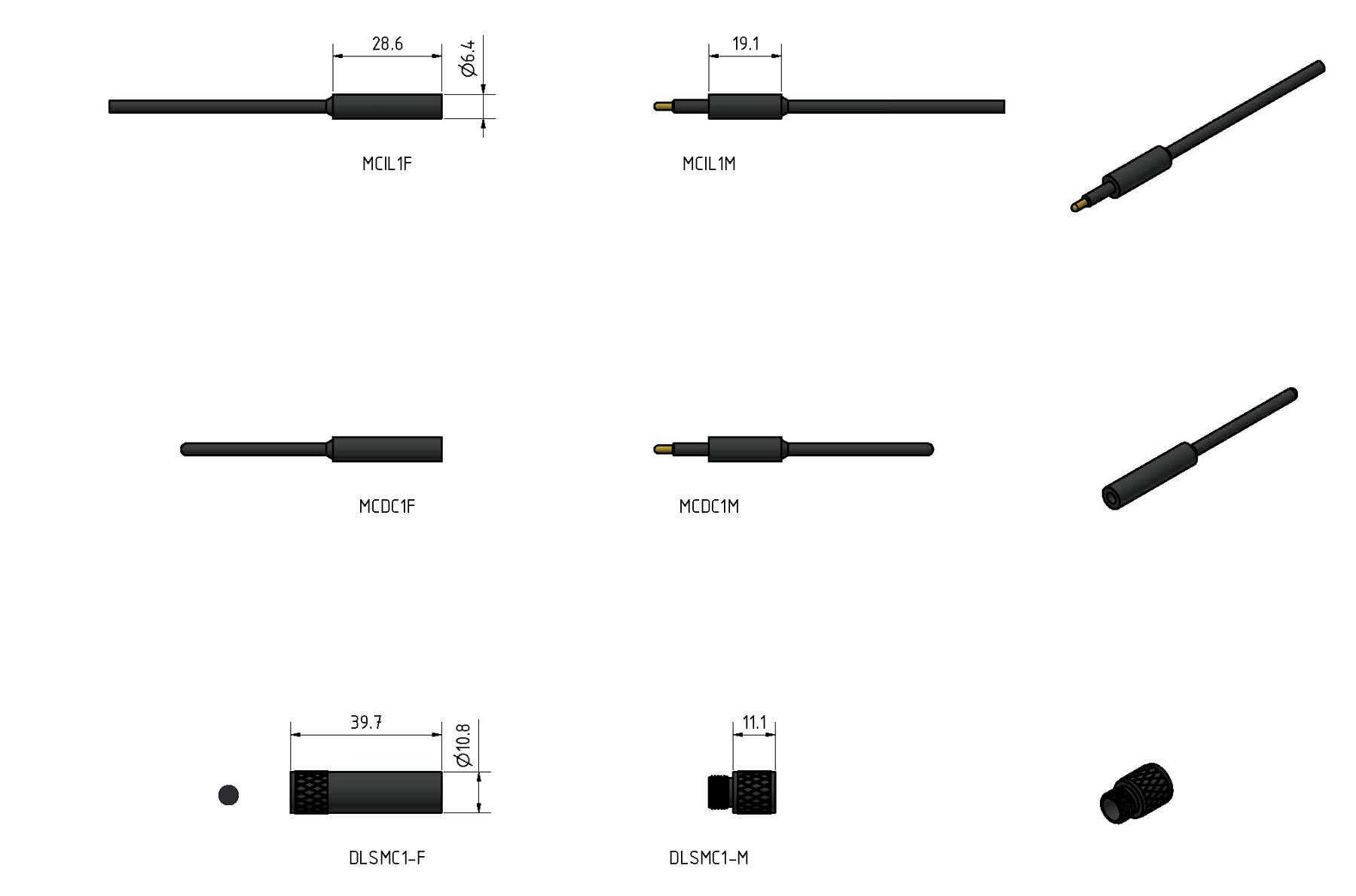

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 300 V DC/AC rms
  • Current rating: 5 A
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 800 bar, 11,600 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Contacts: Female socket in gold plated brass UNS - C36000, Male pin in gold plated beryllium copper
  • Inline cable (2 ft, 60 cm): 18 AWG, 0.82 mm2 synthetic rubber


Inline cable colour code

1: Black


Nominal cable outside diameter (OD)

Synthetic rubber cable 0.100", 2.54 mm

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

MCBH10F 2 O-ring 22mm Hex.stp MCBH10F.stp MCBH10M 2 O-ring 22mm Hex.stp MCBH10M.stp MCBH12F 2 O-ring 22mm Hex.stp MCBH12F.stp MCBH12M 2 O-ring 22mm Hex.stp MCBH12M.stp MCBH16F 2 O-ring 22mm Hex.stp MCBH16F.stp MCBH16M 2 O-ring 22mm Hex.stp MCBH16M.stp MCBH21F.stp MCBH21M.stp MCBH2F 2 O-ring 20mm Hex.stp MCBH2F 2 O-ring 22mm Hex.stp MCBH2F-G2 w 2 o-ring 20mm Hex.stp MCBH2F-G2 w 2 o-ring 22mm Hex.stp MCBH2F-G2-WB.stp MCBH2F-G2.stp MCBH2F.stp MCBH2FNM.stp MCBH2M 2 O-ring 20mm Hex.stp MCBH2M 2 O-ring 22mm Hex.stp MCBH2M-G2 w 2 o-ring 20mm Hex.stp MCBH2M-G2 w 2 o-ring 22mm Hex.stp MCBH2M-G2-WB.stp MCBH2M-G2.stp MCBH2M.stp MCBH2MNM.stp MCBH3F 2 O-ring 20mm Hex.stp MCBH3F 2 O-ring 22mm Hex.stp MCBH3F-G2 w 2 o-ring 20mm Hex.stp MCBH3F-G2 w 2 o-ring 22mm Hex.stp MCBH3F-G2-WB.stp MCBH3F-G2.stp MCBH3F.stp MCBH3M 2 O-ring 20mm Hex.stp MCBH3M 2 O-ring 22mm Hex.stp MCBH3M-G2 w 2 o-ring 20mm Hex.stp MCBH3M-G2 w 2 o-ring 22mm Hex.stp MCBH3M-G2-WB.stp MCBH3M-G2.stp MCBH3M.stp MCBH4F 2 O-ring 20mm Hex.stp MCBH4F 2 O-ring 22mm Hex.stp MCBH4F-G2 w 2 o-ring 20mm Hex.stp MCBH4F-G2 w 2 o-ring 22mm Hex.stp MCBH4F-G2-WB.stp MCBH4F-G2.stp MCBH4F.stp MCBH4M 2 O-ring 20mm Hex.stp MCBH4M 2 O-ring 22mm Hex.stp MCBH4M-G2 w 2 o-ring 20mm Hex.stp MCBH4M-G2 w 2 o-ring 22mm Hex.stp MCBH4M-G2-WB.stp MCBH4M-G2.stp MCBH4M.stp MCBH5F 2 O-ring 20mm Hex.stp MCBH5F 2 O-ring 22mm Hex.stp MCBH5F-WB.stp MCBH5F.stp MCBH5M 2 O-ring 20mm Hex.stp MCBH5M 2 O-ring 22mm Hex.stp MCBH5M WB.stp MCBH5M.stp MCBH6F 2 O-ring 20mm Hex.stp MCBH6F 2 O-ring 22mm Hex.stp MCBH6F-WB.stp MCBH6F.stp MCBH6M 2 O-ring 20mm Hex.stp MCBH6M 2 O-ring 22mm Hex.stp MCBH6M WB.stp MCBH6M.stp MCBH8F 2 O-ring 20mm Hex.stp MCBH8F 2 O-ring 22mm Hex.stp MCBH8F WB.stp MCBH8F.stp MCBH8M 2 O-ring 20mm Hex.stp MCBH8M 2 O-ring 22mm Hex.stp MCBH8M WB.stp MCBH8M.stp
MCDC10F.stp MCDC10M.stp MCDC12F.stp MCDC12M.stp MCDC16F.stp MCDC16M.stp MCDC1F.stp MCDC1M.stp MCDC21F.stp MCDC21M.stp MCDC2F-G2.stp MCDC2F.stp MCDC2M-G2.stp MCDC2M.stp MCDC3F-G2.stp MCDC3F.stp MCDC3M-G2.stp MCDC3M.stp MCDC4F-G2.stp MCDC4F.stp MCDC4M-G2.stp MCDC4M.stp MCDC5F.stp MCDC5M.stp MCDC6F.stp MCDC6M.stp MCDC8F.stp MCDC8M.stp
MCIL10F.stp MCIL10M.stp MCIL12F.stp MCIL12M.stp MCIL16F.stp MCIL16M.stp MCIL1F.stp MCIL1M.stp MCIL21F.stp MCIL21M.stp MCIL2F-G2.stp MCIL2F.stp MCIL2M-G2.stp MCIL2M.stp MCIL3F-G2.stp MCIL3F.stp MCIL3M-G2.stp MCIL3M.stp MCIL4F-G2.stp MCIL4F.stp MCIL4M.stp MCIL4M_G2.stp MCIL5F.stp MCIL5M.stp MCIL6F.stp MCIL6M.stp MCIL8F.stp MCIL8M.stp
MCOM10F.stp MCOM10M.stp MCOM12F.stp MCOM12M.stp MCOM16F.stp MCOM16M.stp MCOM21F.stp MCOM21M.stp MCOM2F-G2.stp MCOM2F.stp MCOM2M-G2.stp MCOM2M.stp MCOM3F-G2.stp MCOM3F.stp MCOM3M-G2.stp MCOM3M.stp MCOM4F-G2.stp MCOM4F.stp MCOM4M-G2.stp MCOM4M.stp MCOM5F.stp MCOM5M.stp MCOM6F.stp MCOM6M.stp MCOM8F.stp MCOM8M.stp
MCPBOF10F.stp MCPBOF10M.stp MCPBOF12F.stp MCPBOF12M.stp MCPBOF16F.stp MCPBOF16M.stp MCPBOF2F-G2.stp MCPBOF2F.stp MCPBOF2M-G2.stp MCPBOF2M.stp MCPBOF3F-G2.stp MCPBOF3F.stp MCPBOF3M-G2.stp MCPBOF3M.stp MCPBOF4F-G2.stp MCPBOF4F.stp MCPBOF4M-G2.stp MCPBOF4M.stp MCPBOF5F.stp MCPBOF5M.stp MCPBOF6F.stp MCPBOF6M.stp MCPBOF8F.stp MCPBOF8M.stp MCPBOF21F.stp MCPBOF21M.stp
MCBHRA2F-G2.stp MCBHRA2F.stp MCBHRA2M-G2.stp MCBHRA2M.stp MCBHRA3F-G2.stp MCBHRA3F.stp MCBHRA3M-G2.stp MCBHRA3M.stp MCBHRA4F-G2.stp MCBHRA4F.stp MCBHRA4M-G2.stp MCBHRA4M.stp MCBHRA5F.stp MCBHRA5M.stp MCBHRA6F.stp MCBHRA6M.stp MCBHRA8F.stp MCBHRA8M.stp MCBHRA12F MCBHRA12M MCBHRA16F.stp MCBHRA16M.stp MCBHRA8F 2 O-ring.stp MCBHRA8M 2 O-ring.stp MCBHRA2FAS 2 O-ring.stp MCBHRA2FAS G2 2 O-ring.stp MCBHRA2MAS 2 O-ring.stp MCBHRA2MAS G2 2 O-ring.stp MCBHRA3FAS 2 O-ring.stp MCBHRA3FAS G2 2 O-ring.stp MCBHRA3MAS 2 O-ring.stp MCBHRA3MAS G2 2 O-ring.stp MCBHRA4FAS 2 O-ring.stp MCBHRA4FAS G2 2 O-ring.stp MCBHRA4MAS 2 O-ring.stp MCBHRA4MAS G2 2 O-ring.stp MCBHRA5FAS 2 O-ring.stp MCBHRA5MAS 2 O-ring.stp MCBHRA6FAS 2 O-ring.stp MCBHRA6MAS 2 O-ring.stp MCBHRA8FAS 2 O-ring.stp MCBHRA8MAS 2 O-ring.stp MCBHRA10F RADLSA M MCBHRA10M RADLSA M MCBHRA12F RADLSA M MCBHRA12M RADLSA M MCBHRA16F RADLSA M MCBHRA16M RADLSA M
MCAT10F.stp MCAT10M.stp MCAT12F.stp MCAT12M.stp MCAT16F.stp MCAT16M.stp

X_B files

MCBH10F.x_b MCBH10M.x_b MCBH12F.x_b MCBH12M.x_b MCBH16F.x_b MCBH16M.x_b MCBH21F.x_b MCBH21M.x_b MCBH2F-G2.x_b MCBH2F.x_b MCBH2FNM.x_b MCBH2M-G2.x_b MCBH2M.x_b MCBH2MNM.x_b MCBH3F-G2.x_b MCBH3F.x_b MCBH3M-G2.x_b MCBH3M.x_b MCBH4F-G2.x_b MCBH4F.x_b MCBH4M-G2.x_b MCBH4M.x_b MCBH5F.x_b MCBH5M.x_b MCBH6F.x_b MCBH6M.x_b MCBH8F.x_b MCBH8M.x_b MCBH8F 2 O Ring 20Mm Hex MCBH2M 2 O Ring 20Mm Hex MCBH12F 2 O Ring 22Mm Hex
MCDC10F.x_b MCDC10M.x_b MCDC12F.x_b MCDC12M.x_b MCDC16F.x_b MCDC16M.x_b MCDC1F.x_b MCDC1M.x_b MCDC21F.x_b MCDC21M.x_b MCDC2F-G2.x_b MCDC2F.x_b MCDC2M-G2.x_b MCDC2M.x_b MCDC3F-G2.x_b MCDC3F.x_b MCDC3M-G2.x_b MCDC3M.x_b MCDC4F-G2.x_b MCDC4F.x_b MCDC4M-G2.x_b MCDC4M.x_b MCDC5F.x_b MCDC5M.x_b MCDC6F.x_b MCDC6M.x_b MCDC8F.x_b MCDC8M.x_b
MCIL10F.x_b MCIL10M.x_b MCIL12F.x_b MCIL12M.x_b MCIL16F.x_b MCIL16M.x_b MCIL1F.x_b MCIL1M.x_b MCIL21F.x_b MCIL21M.x_b MCIL2F-G2.x_b MCIL2F.x_b MCIL2M-G2.x_b MCIL2M.x_b MCIL3F-G2.x_b MCIL3F.x_b MCIL3M-G2.x_b MCIL3M.x_b MCIL4F-G2.x_b MCIL4F.x_b MCIL4M.x_b MCIL4M_G2.x_b MCIL5F.x_b MCIL5M.x_b MCIL6F.x_b MCIL6M.x_b MCIL8F.x_b MCIL8M.x_b
MCOM10F.x_b MCOM10M.x_b MCOM12F.x_b MCOM12M.x_b MCOM16F.x_b MCOM16M.x_b MCOM21F.x_b MCOM21M.x_b MCOM2F-G2.x_b MCOM2F.x_b MCOM2M-G2.x_b MCOM2M.x_b MCOM3F-G2.x_b MCOM3F.x_b MCOM3M-G2.x_b MCOM3M.x_b MCOM4F-G2.x_b MCOM4F.x_b MCOM4M-G2.x_b MCOM4M.x_b MCOM5F.x_b MCOM5M.x_b MCOM6F.x_b MCOM6M.x_b MCOM8F.x_b MCOM8M.x_b
MCPBOF10F.x_b MCPBOF10M.x_b MCPBOF12F.x_b MCPBOF12M.x_b MCPBOF16F.x_b MCPBOF16M.x_b MCPBOF2F-G2.x_b MCPBOF2F.x_b MCPBOF2M-G2.x_b MCPBOF2M.x_b MCPBOF3F-G2.x_b MCPBOF3F.x_b MCPBOF3M-G2.x_b MCPBOF3M.x_b MCPBOF4F-G2.x_b MCPBOF4F.x_b MCPBOF4M-G2.x_b MCPBOF4M.x_b MCPBOF5F.x_b MCPBOF5M.x_b MCPBOF6F.x_b MCPBOF6M.x_b MCPBOF8F.x_b MCPBOF8M.x_b MCPBOF21F.x_b MCPBOF21M.x_b
MCBHRA2F-G2.x_b MCBHRA2F.x_b MCBHRA2M-G2.x_b MCBHRA2M.x_b MCBHRA3F-G2.x_b MCBHRA3F.x_b MCBHRA3M-G2.x_b MCBHRA3M.x_b MCBHRA4F-G2.x_b MCBHRA4F.x_b MCBHRA4M-G2.x_b MCBHRA4M.x_b MCBHRA5F.x_b MCBHRA5M.x_b MCBHRA6F.x_b MCBHRA6M.x_b MCBHRA8F.x_b MCBHRA8M.x_b MCBHRA12F MCBHRA12M MCBHRA16F.x_b MCBHRA16M.x_b MCBHRA8F 2 O-ring.x_b MCBHRA8M 2 O-ring.x_b MCBHRA2FAS 2 O-ring.x_b MCBHRA2FAS G2 2 O-ring.x_b MCBHRA2MAS 2 O-ring.x_b MCBHRA2MAS G2 2 O-ring.x_b MCBHRA3FAS 2 O-ring.x_b MCBHRA3FAS G2 2 O-ring.x_b MCBHRA3MAS 2 O-ring.x_b MCBHRA3MAS G2 2 O-ring.x_b MCBHRA4FAS 2 O-ring.x_b MCBHRA4FAS G2 2 O-ring.x_b MCBHRA4MAS 2 O-ring.x_b MCBHRA4MAS G2 2 O-ring.x_b MCBHRA5FAS 2 O-ring.x_b MCBHRA5MAS 2 O-ring.x_b MCBHRA6FAS 2 O-ring.x_b MCBHRA6MAS 2 O-ring.x_b MCBHRA8FAS 2 O-ring.x_b MCBHRA8MAS 2 O-ring.x_b MCBHRA10F RADLSA M MCBHRA10M RADLSA M MCBHRA12F RADLSA M MCBHRA12M RADLSA M MCBHRA16F RADLSA M MCBHRA16M RADLSA M
MCAT10F.x_b MCAT10M.x_b MCAT12F.x_b MCAT12M.x_b MCAT16F.x_b MCAT16M.x_b

Related files

Micro Circular - 1 contact.pdf
