SubConn Micro Circular - 10, 12 and 16 contacts

Request a quote for: SubConn Micro Circular - 10, 12 and 16 contacts

Get your non-binding quote today and see how we can help.

Request a quote

Please complete the form below, and we will contact you shortly to discuss a solution to your challenge and provide you with a quote.

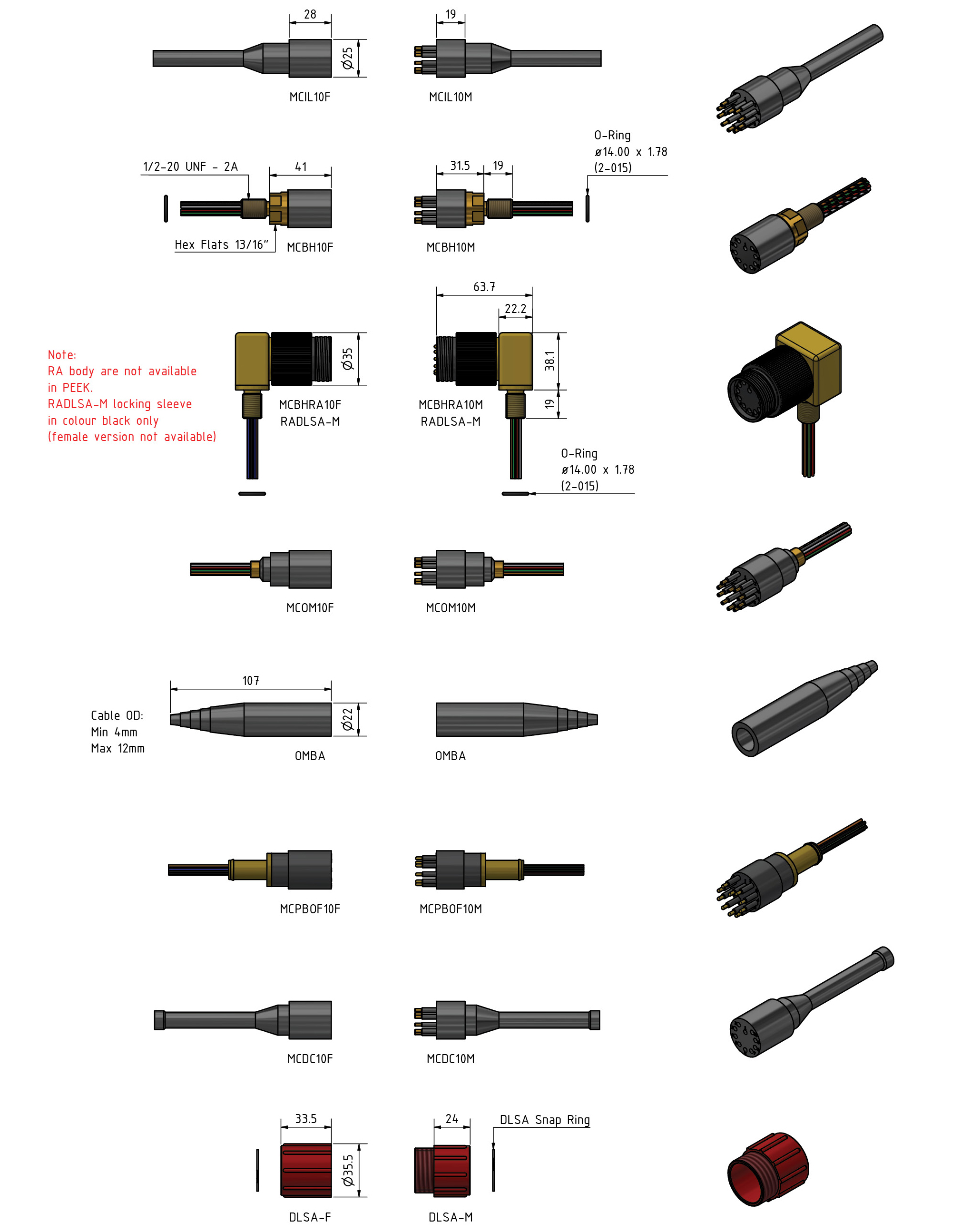

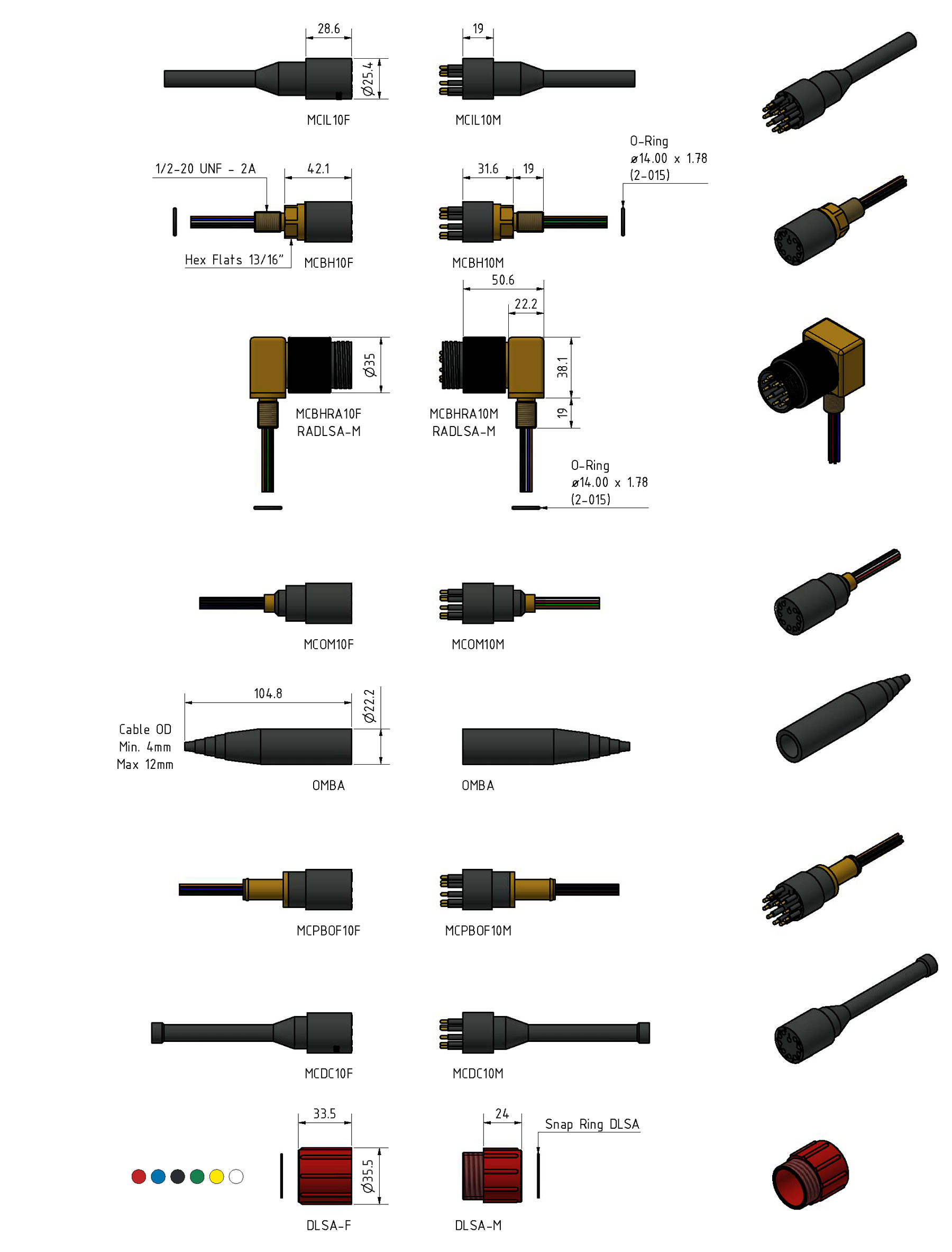

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 300 V DC/AC rms
  • Current rating: 5 A per contact (max 30 A per connector)
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0,01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 800 bar, 11,600 psi
  • Depth rating PEEK: 300 bar, 4,350 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
  • Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
  • O-rings: Nitrile
  • Locking sleeves: POM or stainless steel
  • Snap rings: Stainless steel AISI 302
  • Inline cable (2 ft, 60 cm): 20 AWG, 0.52 mm2 synthetic rubber
  • Bulkhead and PBOF leads (1 ft, 30 cm): 20 AWG, 0.52 mm2 coloured PTFE
  • OM leads (3", 7 cm): 20 AWG, 0.52 mm2 coloured PTFE

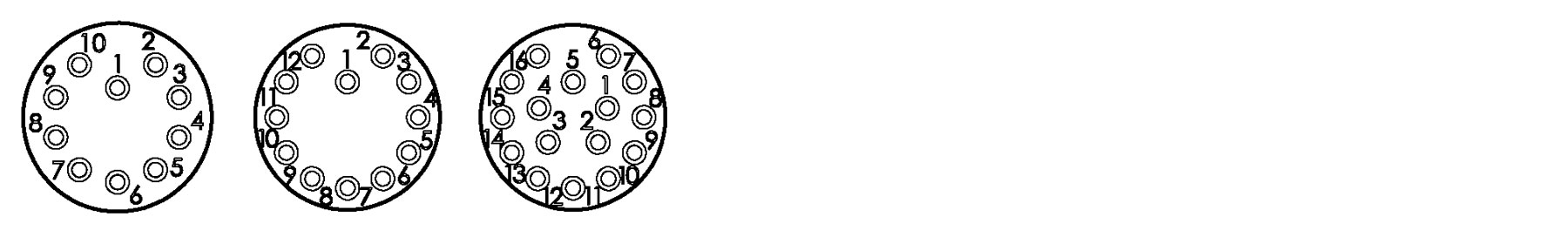

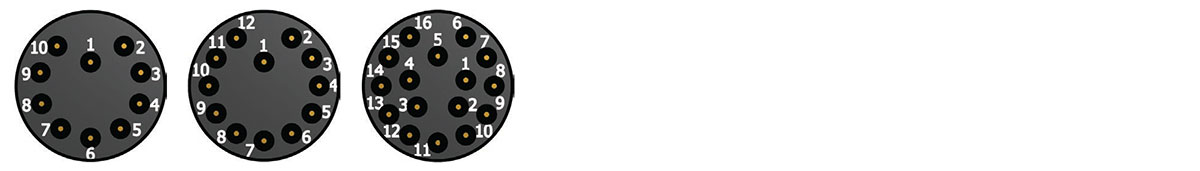

Face view (male)



Inline cable colour code

1: Black
2: White
3: Red
4: Green
5: Orange
6: Blue
7: White/black
8: Red/black
9: Green/black
10: Orange/black
11: Blue/black
12: Black/white
13: Red/white
14: Green/white
15: Blue/white
16: Black/red


Nominal cable outside diameter (OD)

10 conductor cable 0.406’’, 10.3 mm
12 conductor cable 0.436’’, 11.0 mm
16 conductor cable 0.472’’, 12.0 mm

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

MCBH10F 2 O-ring 22mm Hex.stp MCBH10F.stp MCBH10M 2 O-ring 22mm Hex.stp MCBH10M.stp MCBH12F 2 O-ring 22mm Hex.stp MCBH12F.stp MCBH12M 2 O-ring 22mm Hex.stp MCBH12M.stp MCBH16F 2 O-ring 22mm Hex.stp MCBH16F.stp MCBH16M 2 O-ring 22mm Hex.stp MCBH16M.stp MCBH21F.stp MCBH21M.stp MCBH2F 2 O-ring 20mm Hex.stp MCBH2F 2 O-ring 22mm Hex.stp MCBH2F-G2 w 2 o-ring 20mm Hex.stp MCBH2F-G2 w 2 o-ring 22mm Hex.stp MCBH2F-G2-WB.stp MCBH2F-G2.stp MCBH2F.stp MCBH2FNM.stp MCBH2M 2 O-ring 20mm Hex.stp MCBH2M 2 O-ring 22mm Hex.stp MCBH2M-G2 w 2 o-ring 20mm Hex.stp MCBH2M-G2 w 2 o-ring 22mm Hex.stp MCBH2M-G2-WB.stp MCBH2M-G2.stp MCBH2M.stp MCBH2MNM.stp MCBH3F 2 O-ring 20mm Hex.stp MCBH3F 2 O-ring 22mm Hex.stp MCBH3F-G2 w 2 o-ring 20mm Hex.stp MCBH3F-G2 w 2 o-ring 22mm Hex.stp MCBH3F-G2-WB.stp MCBH3F-G2.stp MCBH3F.stp MCBH3M 2 O-ring 20mm Hex.stp MCBH3M 2 O-ring 22mm Hex.stp MCBH3M-G2 w 2 o-ring 20mm Hex.stp MCBH3M-G2 w 2 o-ring 22mm Hex.stp MCBH3M-G2-WB.stp MCBH3M-G2.stp MCBH3M.stp MCBH4F 2 O-ring 20mm Hex.stp MCBH4F 2 O-ring 22mm Hex.stp MCBH4F-G2 w 2 o-ring 20mm Hex.stp MCBH4F-G2 w 2 o-ring 22mm Hex.stp MCBH4F-G2-WB.stp MCBH4F-G2.stp MCBH4F.stp MCBH4M 2 O-ring 20mm Hex.stp MCBH4M 2 O-ring 22mm Hex.stp MCBH4M-G2 w 2 o-ring 20mm Hex.stp MCBH4M-G2 w 2 o-ring 22mm Hex.stp MCBH4M-G2-WB.stp MCBH4M-G2.stp MCBH4M.stp MCBH5F 2 O-ring 20mm Hex.stp MCBH5F 2 O-ring 22mm Hex.stp MCBH5F-WB.stp MCBH5F.stp MCBH5M 2 O-ring 20mm Hex.stp MCBH5M 2 O-ring 22mm Hex.stp MCBH5M WB.stp MCBH5M.stp MCBH6F 2 O-ring 20mm Hex.stp MCBH6F 2 O-ring 22mm Hex.stp MCBH6F-WB.stp MCBH6F.stp MCBH6M 2 O-ring 20mm Hex.stp MCBH6M 2 O-ring 22mm Hex.stp MCBH6M WB.stp MCBH6M.stp MCBH8F 2 O-ring 20mm Hex.stp MCBH8F 2 O-ring 22mm Hex.stp MCBH8F WB.stp MCBH8F.stp MCBH8M 2 O-ring 20mm Hex.stp MCBH8M 2 O-ring 22mm Hex.stp MCBH8M WB.stp MCBH8M.stp
MCDC10F.stp MCDC10M.stp MCDC12F.stp MCDC12M.stp MCDC16F.stp MCDC16M.stp MCDC1F.stp MCDC1M.stp MCDC21F.stp MCDC21M.stp MCDC2F-G2.stp MCDC2F.stp MCDC2M-G2.stp MCDC2M.stp MCDC3F-G2.stp MCDC3F.stp MCDC3M-G2.stp MCDC3M.stp MCDC4F-G2.stp MCDC4F.stp MCDC4M-G2.stp MCDC4M.stp MCDC5F.stp MCDC5M.stp MCDC6F.stp MCDC6M.stp MCDC8F.stp MCDC8M.stp
MCIL10F.stp MCIL10M.stp MCIL12F.stp MCIL12M.stp MCIL16F.stp MCIL16M.stp MCIL1F.stp MCIL1M.stp MCIL21F.stp MCIL21M.stp MCIL2F-G2.stp MCIL2F.stp MCIL2M-G2.stp MCIL2M.stp MCIL3F-G2.stp MCIL3F.stp MCIL3M-G2.stp MCIL3M.stp MCIL4F-G2.stp MCIL4F.stp MCIL4M.stp MCIL4M_G2.stp MCIL5F.stp MCIL5M.stp MCIL6F.stp MCIL6M.stp MCIL8F.stp MCIL8M.stp
MCOM10F.stp MCOM10M.stp MCOM12F.stp MCOM12M.stp MCOM16F.stp MCOM16M.stp MCOM21F.stp MCOM21M.stp MCOM2F-G2.stp MCOM2F.stp MCOM2M-G2.stp MCOM2M.stp MCOM3F-G2.stp MCOM3F.stp MCOM3M-G2.stp MCOM3M.stp MCOM4F-G2.stp MCOM4F.stp MCOM4M-G2.stp MCOM4M.stp MCOM5F.stp MCOM5M.stp MCOM6F.stp MCOM6M.stp MCOM8F.stp MCOM8M.stp
MCPBOF10F.stp MCPBOF10M.stp MCPBOF12F.stp MCPBOF12M.stp MCPBOF16F.stp MCPBOF16M.stp MCPBOF2F-G2.stp MCPBOF2F.stp MCPBOF2M-G2.stp MCPBOF2M.stp MCPBOF3F-G2.stp MCPBOF3F.stp MCPBOF3M-G2.stp MCPBOF3M.stp MCPBOF4F-G2.stp MCPBOF4F.stp MCPBOF4M-G2.stp MCPBOF4M.stp MCPBOF5F.stp MCPBOF5M.stp MCPBOF6F.stp MCPBOF6M.stp MCPBOF8F.stp MCPBOF8M.stp MCPBOF21F.stp MCPBOF21M.stp
MCBHRA2F-G2.stp MCBHRA2F.stp MCBHRA2M-G2.stp MCBHRA2M.stp MCBHRA3F-G2.stp MCBHRA3F.stp MCBHRA3M-G2.stp MCBHRA3M.stp MCBHRA4F-G2.stp MCBHRA4F.stp MCBHRA4M-G2.stp MCBHRA4M.stp MCBHRA5F.stp MCBHRA5M.stp MCBHRA6F.stp MCBHRA6M.stp MCBHRA8F.stp MCBHRA8M.stp MCBHRA12F MCBHRA12M MCBHRA16F.stp MCBHRA16M.stp MCBHRA8F 2 O-ring.stp MCBHRA8M 2 O-ring.stp MCBHRA2FAS 2 O-ring.stp MCBHRA2FAS G2 2 O-ring.stp MCBHRA2MAS 2 O-ring.stp MCBHRA2MAS G2 2 O-ring.stp MCBHRA3FAS 2 O-ring.stp MCBHRA3FAS G2 2 O-ring.stp MCBHRA3MAS 2 O-ring.stp MCBHRA3MAS G2 2 O-ring.stp MCBHRA4FAS 2 O-ring.stp MCBHRA4FAS G2 2 O-ring.stp MCBHRA4MAS 2 O-ring.stp MCBHRA4MAS G2 2 O-ring.stp MCBHRA5FAS 2 O-ring.stp MCBHRA5MAS 2 O-ring.stp MCBHRA6FAS 2 O-ring.stp MCBHRA6MAS 2 O-ring.stp MCBHRA8FAS 2 O-ring.stp MCBHRA8MAS 2 O-ring.stp MCBHRA10F RADLSA M MCBHRA10M RADLSA M MCBHRA12F RADLSA M MCBHRA12M RADLSA M MCBHRA16F RADLSA M MCBHRA16M RADLSA M
MCAT10F.stp MCAT10M.stp MCAT12F.stp MCAT12M.stp MCAT16F.stp MCAT16M.stp

X_B files

MCBH10F.x_b MCBH10M.x_b MCBH12F.x_b MCBH12M.x_b MCBH16F.x_b MCBH16M.x_b MCBH21F.x_b MCBH21M.x_b MCBH2F-G2.x_b MCBH2F.x_b MCBH2FNM.x_b MCBH2M-G2.x_b MCBH2M.x_b MCBH2MNM.x_b MCBH3F-G2.x_b MCBH3F.x_b MCBH3M-G2.x_b MCBH3M.x_b MCBH4F-G2.x_b MCBH4F.x_b MCBH4M-G2.x_b MCBH4M.x_b MCBH5F.x_b MCBH5M.x_b MCBH6F.x_b MCBH6M.x_b MCBH8F.x_b MCBH8M.x_b MCBH8F 2 O Ring 20Mm Hex MCBH2M 2 O Ring 20Mm Hex MCBH12F 2 O Ring 22Mm Hex
MCDC10F.x_b MCDC10M.x_b MCDC12F.x_b MCDC12M.x_b MCDC16F.x_b MCDC16M.x_b MCDC1F.x_b MCDC1M.x_b MCDC21F.x_b MCDC21M.x_b MCDC2F-G2.x_b MCDC2F.x_b MCDC2M-G2.x_b MCDC2M.x_b MCDC3F-G2.x_b MCDC3F.x_b MCDC3M-G2.x_b MCDC3M.x_b MCDC4F-G2.x_b MCDC4F.x_b MCDC4M-G2.x_b MCDC4M.x_b MCDC5F.x_b MCDC5M.x_b MCDC6F.x_b MCDC6M.x_b MCDC8F.x_b MCDC8M.x_b
MCIL10F.x_b MCIL10M.x_b MCIL12F.x_b MCIL12M.x_b MCIL16F.x_b MCIL16M.x_b MCIL1F.x_b MCIL1M.x_b MCIL21F.x_b MCIL21M.x_b MCIL2F-G2.x_b MCIL2F.x_b MCIL2M-G2.x_b MCIL2M.x_b MCIL3F-G2.x_b MCIL3F.x_b MCIL3M-G2.x_b MCIL3M.x_b MCIL4F-G2.x_b MCIL4F.x_b MCIL4M.x_b MCIL4M_G2.x_b MCIL5F.x_b MCIL5M.x_b MCIL6F.x_b MCIL6M.x_b MCIL8F.x_b MCIL8M.x_b
MCOM10F.x_b MCOM10M.x_b MCOM12F.x_b MCOM12M.x_b MCOM16F.x_b MCOM16M.x_b MCOM21F.x_b MCOM21M.x_b MCOM2F-G2.x_b MCOM2F.x_b MCOM2M-G2.x_b MCOM2M.x_b MCOM3F-G2.x_b MCOM3F.x_b MCOM3M-G2.x_b MCOM3M.x_b MCOM4F-G2.x_b MCOM4F.x_b MCOM4M-G2.x_b MCOM4M.x_b MCOM5F.x_b MCOM5M.x_b MCOM6F.x_b MCOM6M.x_b MCOM8F.x_b MCOM8M.x_b
MCPBOF10F.x_b MCPBOF10M.x_b MCPBOF12F.x_b MCPBOF12M.x_b MCPBOF16F.x_b MCPBOF16M.x_b MCPBOF2F-G2.x_b MCPBOF2F.x_b MCPBOF2M-G2.x_b MCPBOF2M.x_b MCPBOF3F-G2.x_b MCPBOF3F.x_b MCPBOF3M-G2.x_b MCPBOF3M.x_b MCPBOF4F-G2.x_b MCPBOF4F.x_b MCPBOF4M-G2.x_b MCPBOF4M.x_b MCPBOF5F.x_b MCPBOF5M.x_b MCPBOF6F.x_b MCPBOF6M.x_b MCPBOF8F.x_b MCPBOF8M.x_b MCPBOF21F.x_b MCPBOF21M.x_b
MCBHRA2F-G2.x_b MCBHRA2F.x_b MCBHRA2M-G2.x_b MCBHRA2M.x_b MCBHRA3F-G2.x_b MCBHRA3F.x_b MCBHRA3M-G2.x_b MCBHRA3M.x_b MCBHRA4F-G2.x_b MCBHRA4F.x_b MCBHRA4M-G2.x_b MCBHRA4M.x_b MCBHRA5F.x_b MCBHRA5M.x_b MCBHRA6F.x_b MCBHRA6M.x_b MCBHRA8F.x_b MCBHRA8M.x_b MCBHRA12F MCBHRA12M MCBHRA16F.x_b MCBHRA16M.x_b MCBHRA8F 2 O-ring.x_b MCBHRA8M 2 O-ring.x_b MCBHRA2FAS 2 O-ring.x_b MCBHRA2FAS G2 2 O-ring.x_b MCBHRA2MAS 2 O-ring.x_b MCBHRA2MAS G2 2 O-ring.x_b MCBHRA3FAS 2 O-ring.x_b MCBHRA3FAS G2 2 O-ring.x_b MCBHRA3MAS 2 O-ring.x_b MCBHRA3MAS G2 2 O-ring.x_b MCBHRA4FAS 2 O-ring.x_b MCBHRA4FAS G2 2 O-ring.x_b MCBHRA4MAS 2 O-ring.x_b MCBHRA4MAS G2 2 O-ring.x_b MCBHRA5FAS 2 O-ring.x_b MCBHRA5MAS 2 O-ring.x_b MCBHRA6FAS 2 O-ring.x_b MCBHRA6MAS 2 O-ring.x_b MCBHRA8FAS 2 O-ring.x_b MCBHRA8MAS 2 O-ring.x_b MCBHRA10F RADLSA M MCBHRA10M RADLSA M MCBHRA12F RADLSA M MCBHRA12M RADLSA M MCBHRA16F RADLSA M MCBHRA16M RADLSA M
MCAT10F.x_b MCAT10M.x_b MCAT12F.x_b MCAT12M.x_b MCAT16F.x_b MCAT16M.x_b

Related files

Micro Circular - 10 12 and 16 contacts.pdf
