SubConn Micro Circular - 5, 6, 8 and 9 contacts and G2 2, 3 and 4 contacts

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating: 300 V DC/AC rms
• 5, 6, 8 and 9 contacts current rating: 5 A per contact (max 20 A per connector)
• G2 2, 3 and 4 contacts current rating: 5 A per contact (max 20 A per connector)
• Insulation resistance: > 200 MΩ
• Contact resistance: < 0.01 Ω
• Wet matings: > 500
• Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 1,400 bar, 20,300 psi (mated), 800 bar, 11,600 psi (open face)
• Depth rating: PEEK 300 bar, 4,350 psi

Material specifications

• Connector body: Chloroprene rubber
• Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
• Bulkhead body (RA and WB): Brass, stainless steel, titanium or anodised aluminium
• 5, 6, 8, and 9 contacts and G2 2, 3 and 4 contacts: Female sockets in gold plated brass - UNS C36000, Male contacts in gold plated beryllium copper
• Location pin: Stainless steel AISI 303
• O-rings: Nitrile
• Locking sleeves: ABS or stainless steel
• Snap rings: Stainless steel AISI 302
• 5, 6, 8 and 9 conductor inline cable (2 ft, 60 cm or 16 ft, 5 m): 20 AWG, 0.52 mm2 synthetic rubber
• G2 2, 3 and 4 conductor inline cable (2 ft, 60 cm): 20 AWG, 0.52 mm2 synthetic rubber
• 5, 6, 8 and 9 contact bulkhead and PBOF leads (1 ft, 30 cm): 22 AWG, 0.33 mm2 coloured PTFE
• G2 2, 3 and 4 contact bulkhead and PBOF leads 1(ft, 30 cm): 20 AWG, 0.52 mm2 coloured PTFE
• OM leads (3", 7 cm): 20 AWG, 0.52 mm2 coloured PTFE

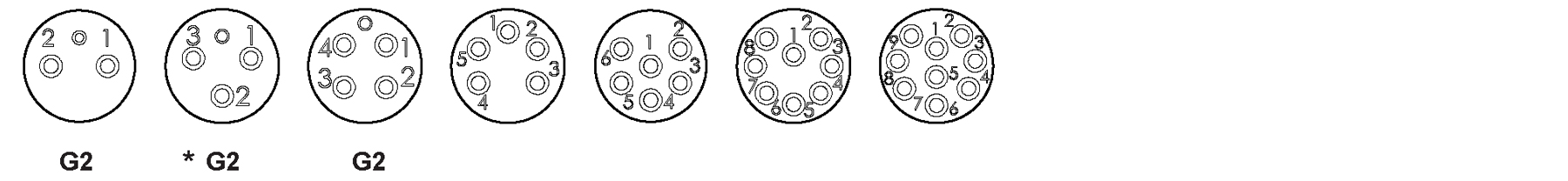

Face view (male)

Inline cable colour code

1: Black
2: White
3: Red
4: Green
5: Orange
6: Blue
7: White/black
8: Red/black
9: Green/black

* 3 conductor cable colour code: 1 black, 2 white, 3 green
