SubConn Micro Circular Double O-ring - 10, 12 and 16 contacts
Request a quote for: SubConn Micro Circular Double O-ring - 10, 12 and 16 contacts
Get your non-binding quote today and see how we can help.

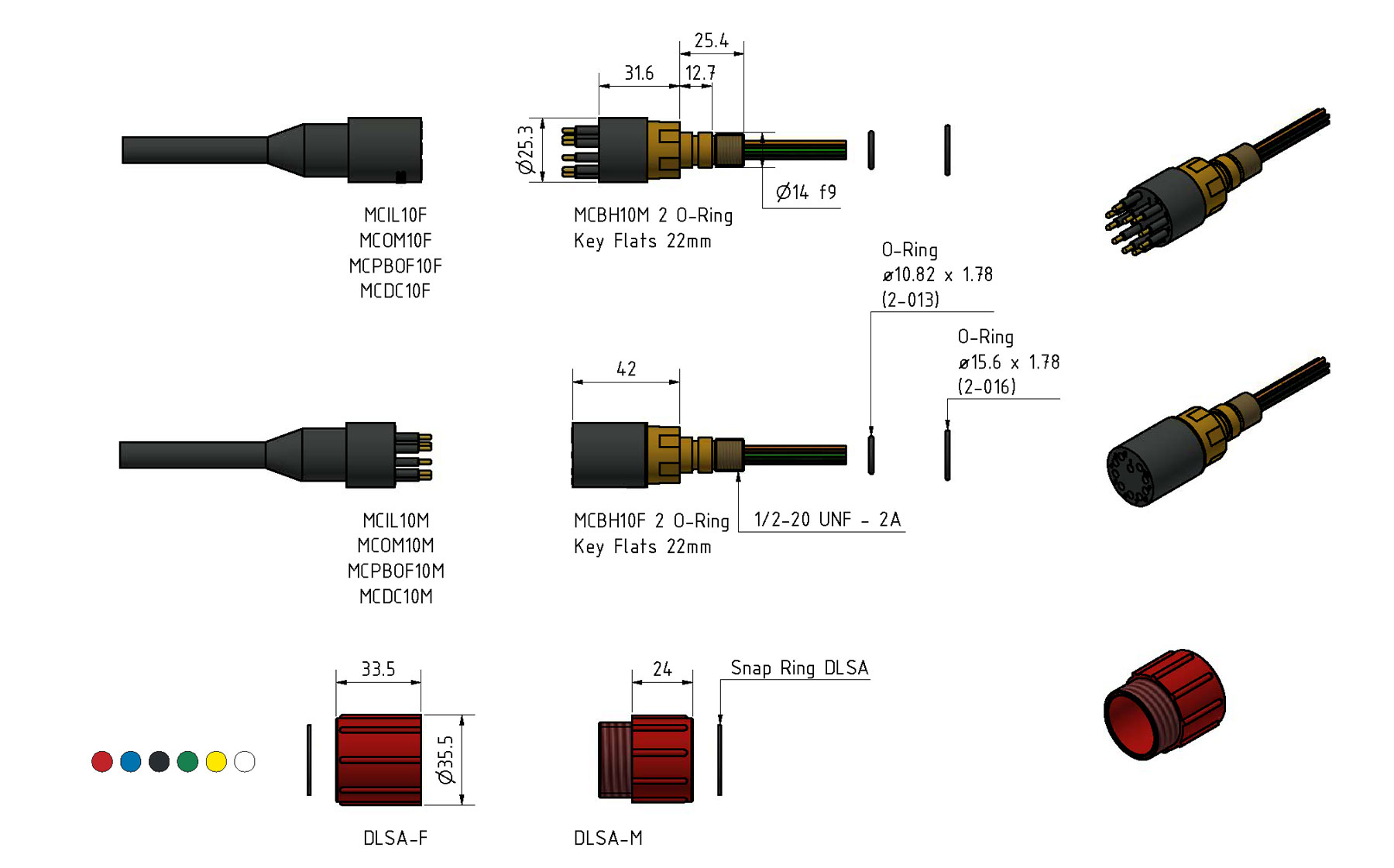

Drawing information
Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)
Connector specifications
- Voltage rating: 300 V DC/AC rms
- Current rating: 5 A per contact (max 30 A per connector)
- Insulation resistance: > 200 Mohm
- Contact resistance: < 0.01 ohm
- Wet matings: > 500 (open face rated)
- Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
- Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
- Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
- Qualified pressure tested: 800 bar, 11,600 psi
Material specifications
- Connector body: Chloroprene rubber
- Bulkhead body: Brass, titanium, anodised aluminium or stainless steel
- Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
- O-rings: Nitrile
- Locking sleeves: POM or stainless steel
- Snap rings: Stainless steel AISI 302
- Bulkhead leads (1 ft, 30 cm): 20 AWG, 0.52 mm2 coloured PTFE

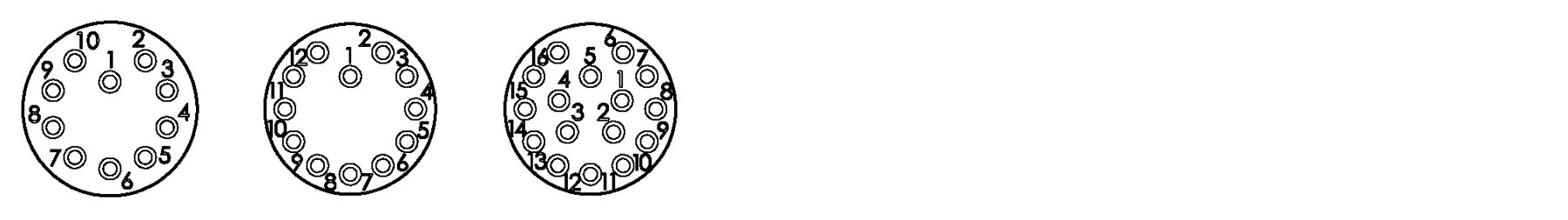

Face view (male)
3D files
Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.
