SubConn Micro Circular Double O-ring - 5, 6, 8 and 9 contacts and G2 2, 3 and 4 contacts

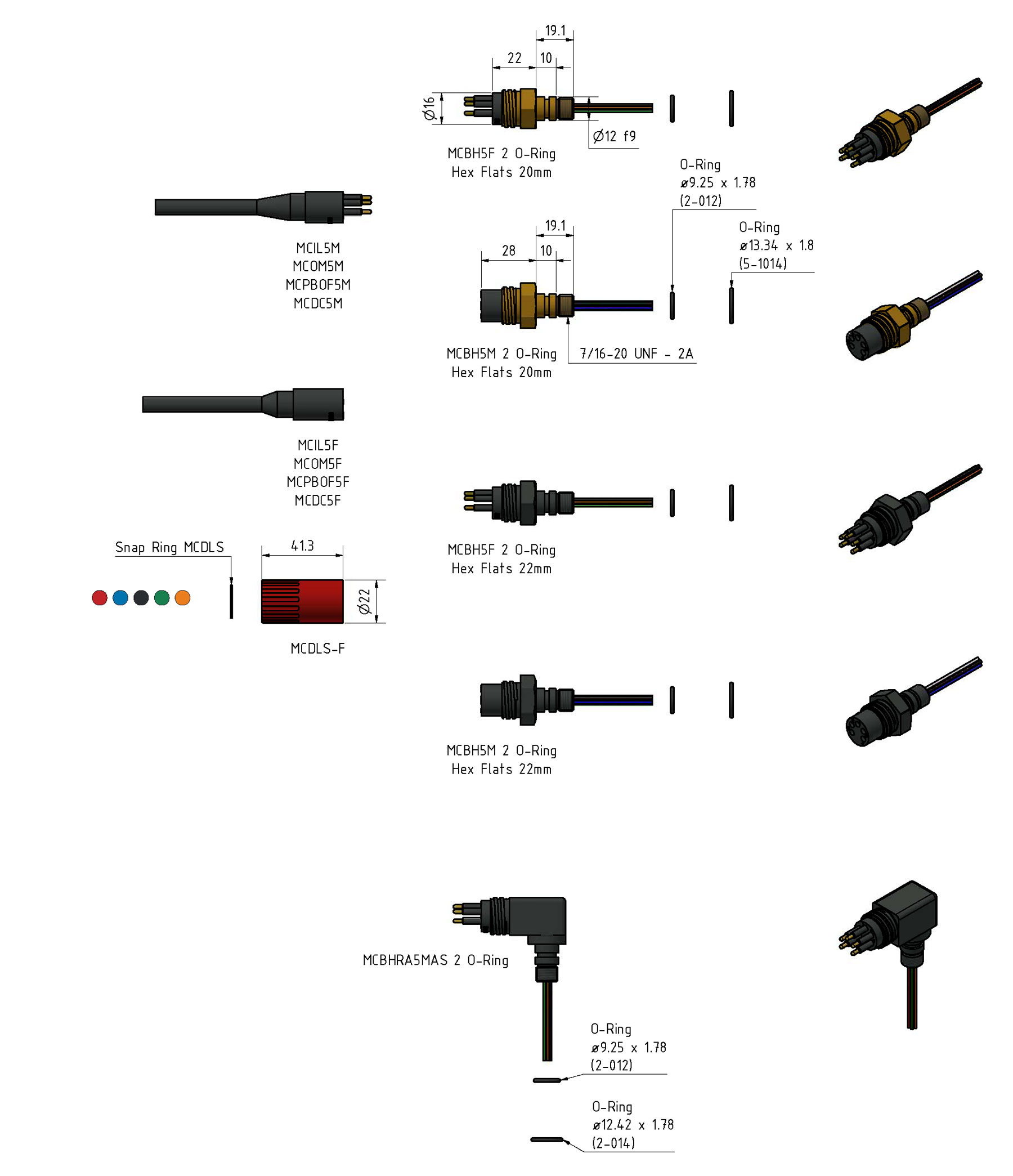

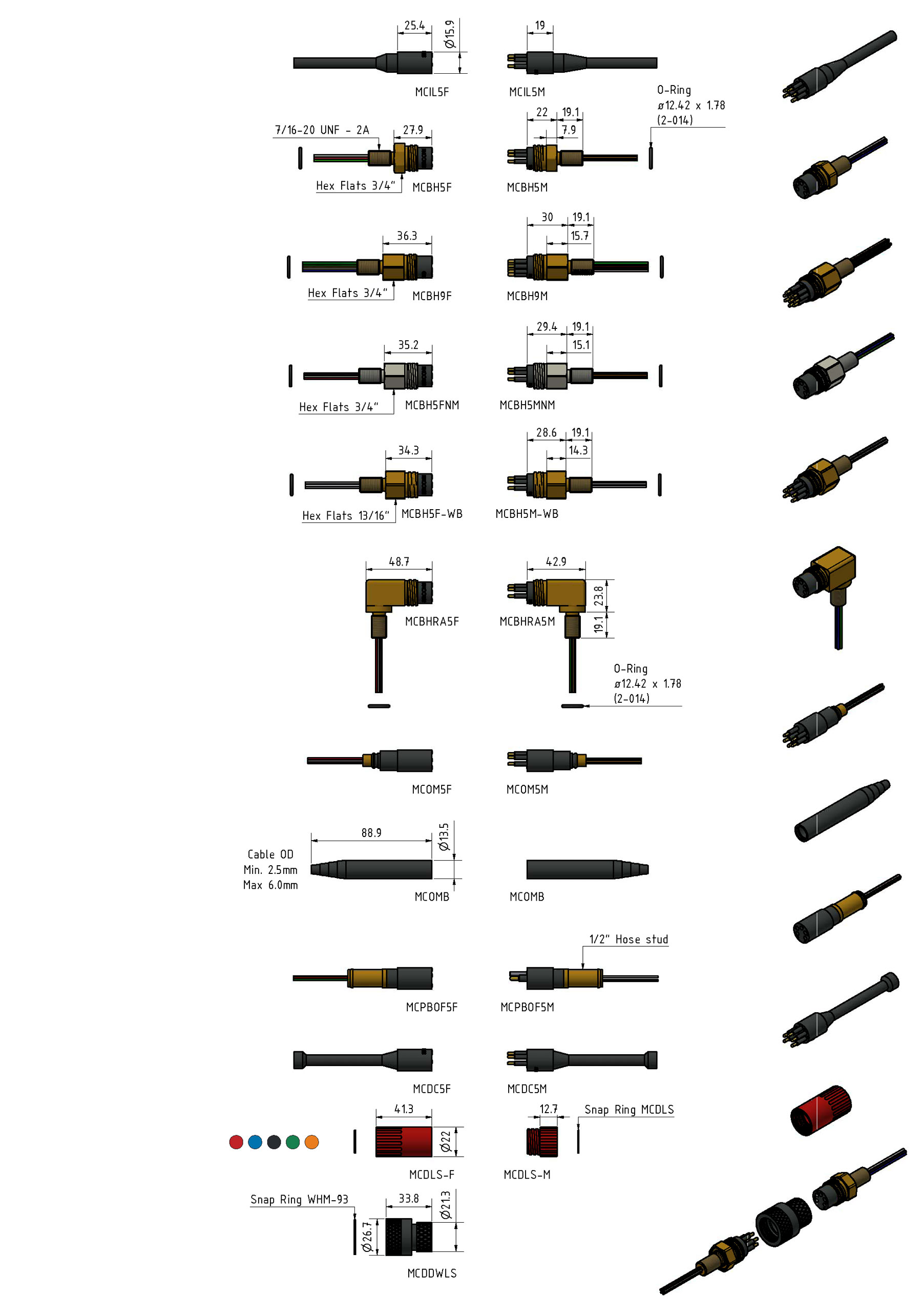

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating: 300 V DC/AC rms
• 5, 6, 8 and 9 contacts current rating: 5 A per contact (max 20 A per connector)
• G2 2, 3 and 4 contacts connector current rating: 5 A per contact (max 20 A per connector)
• Insulation resistance: > 200 MΩ
• Contact resistance: < 0.01 Ω
• Wet matings: > 500
• Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure teste:d 1,400 bar, 20,300 psi (mated), 800 bar, 11,600 psi (open face)
• Depth rating PEEK: 300 bar, 4,350 psi


Material specifications

• Connector body: Chloroprene rubber
• Bulkhead body with 20 mm hex flats: Brass, titanium or anodised aluminium
• Bulkhead body with 22 mm hex flats: Anodised aluminium or stainless steel
• Bulkhead RA body: Aluminium or titanium
• 5, 6, 8 and 9 contacts and G2 2, 3 and 4 contacts: Female sockets in gold plated brass UNS C36000, Male contacts in gold plated beryllium copper
• Location pin: Stainless steel AISI 303
• O-rings: Nitrile
• Locking sleeves: ABS or stainless steel
• Snap rings: Stainless steel AISI 302
• 5, 6, 8 and 9 contact bulkhead leads (1 ft, 30 cm): 22 AWG, 0.33 mm2 coloured PTFE
• G2 2, 3 and contact 4 bulkhead leads (1 ft, 30 cm): 20 AWG, 0.52 mm2 coloured PTFE

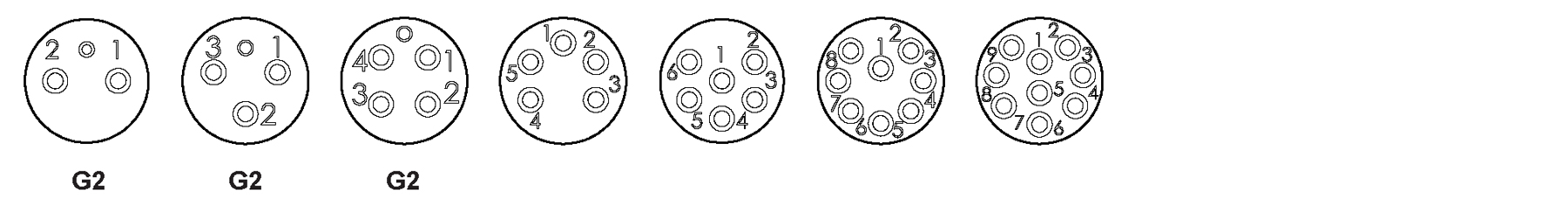

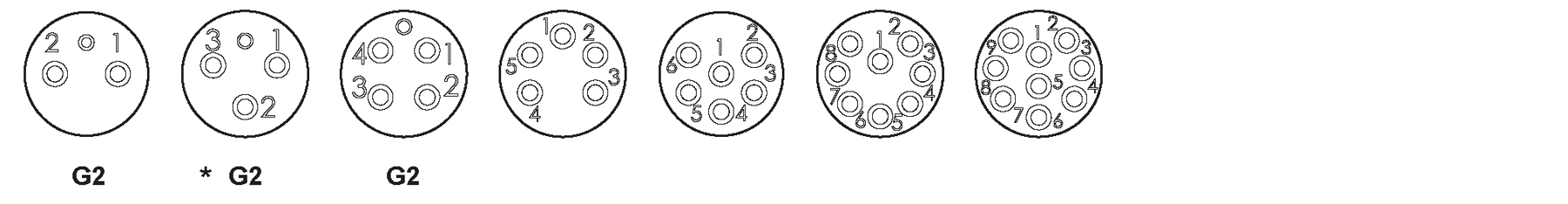

Face view (male)

Leads colour code

1: Black
2: White
3: Red
4: Green
5: Orange
6: Blue
7: White/black
8: Red/black
9: Green/black
