SubConn Penetrator - Water Blocked Right Angle

Request a quote for: SubConn Penetrator - Water Blocked Right Angle

Get your non-binding quote today and see how we can help.

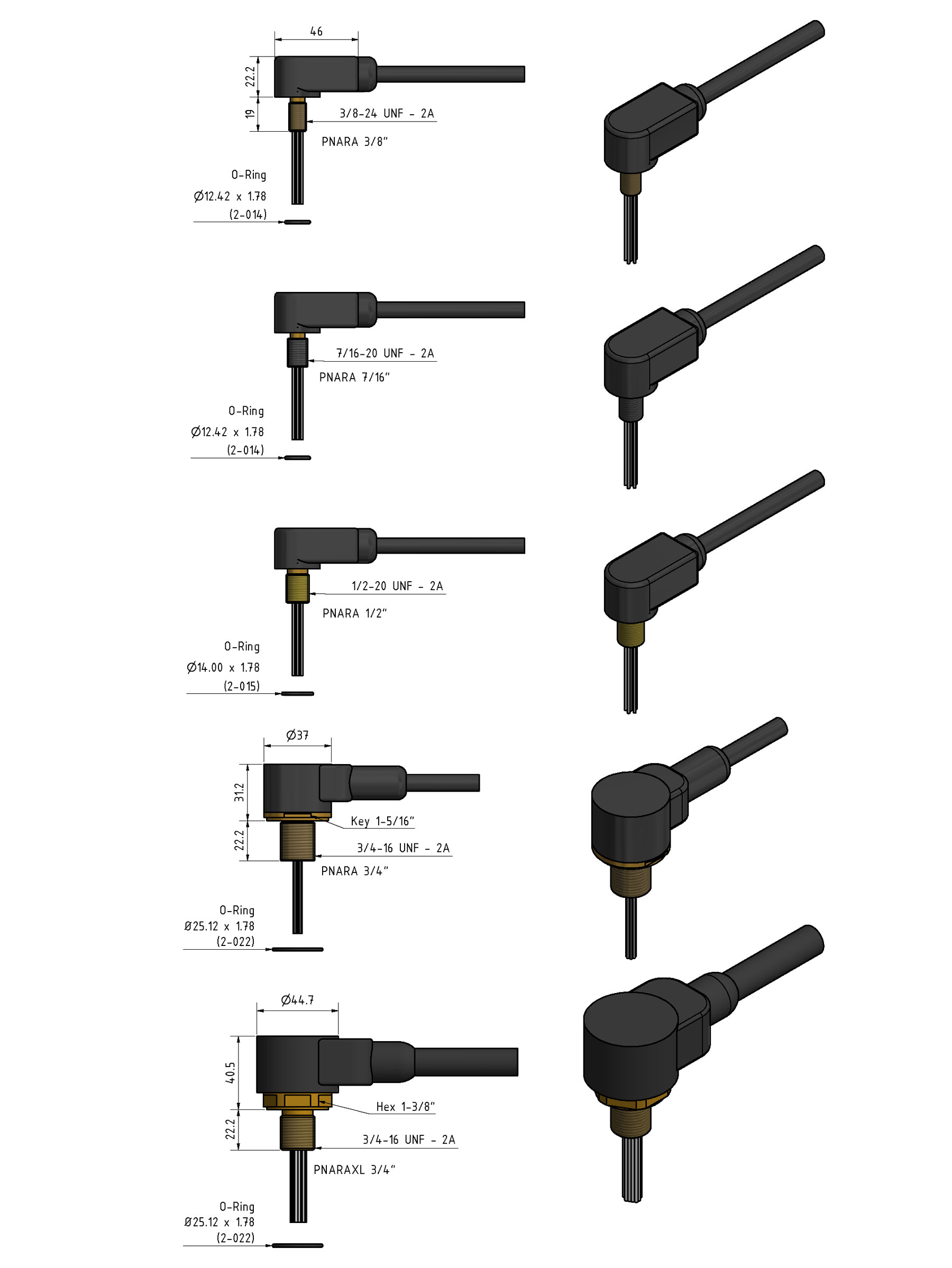

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)



Connector specifications

  • Voltage rating (all penetrators): 300/600 V DC/AC rms (depends on cable)
  • Current rating: Depends on wire and conductor size
  • Insulation resistance: > 200 Mohm
  • Temperature rating (water): - 4 to 60˚C, - 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 800 bar, 11,600 psi



Material specifications

  • Penetrator body: Chloroprene rubber
  • Penetrator metal part: Brass, stainless steel
  • Wire and conductor size: 18 AWG, 0.82 mm2 to 22 AWG, 0.33 mm2 (depends on wire quantity)
  • Penetrator wire leads (30 cm, 1 ft): PTFE
  • Cable outside diameter: Depends on penetrator and cable type
  • O-rings: Nitrile
  • Inline cable length: Customer specified
  • Inline cable type: Customer specified (SubConn® cables only)


Inline cable colour code

  • Depends on corresponding SubConn® connector and cable type.

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
