SubConn Penetrator - Water Blocked Straight

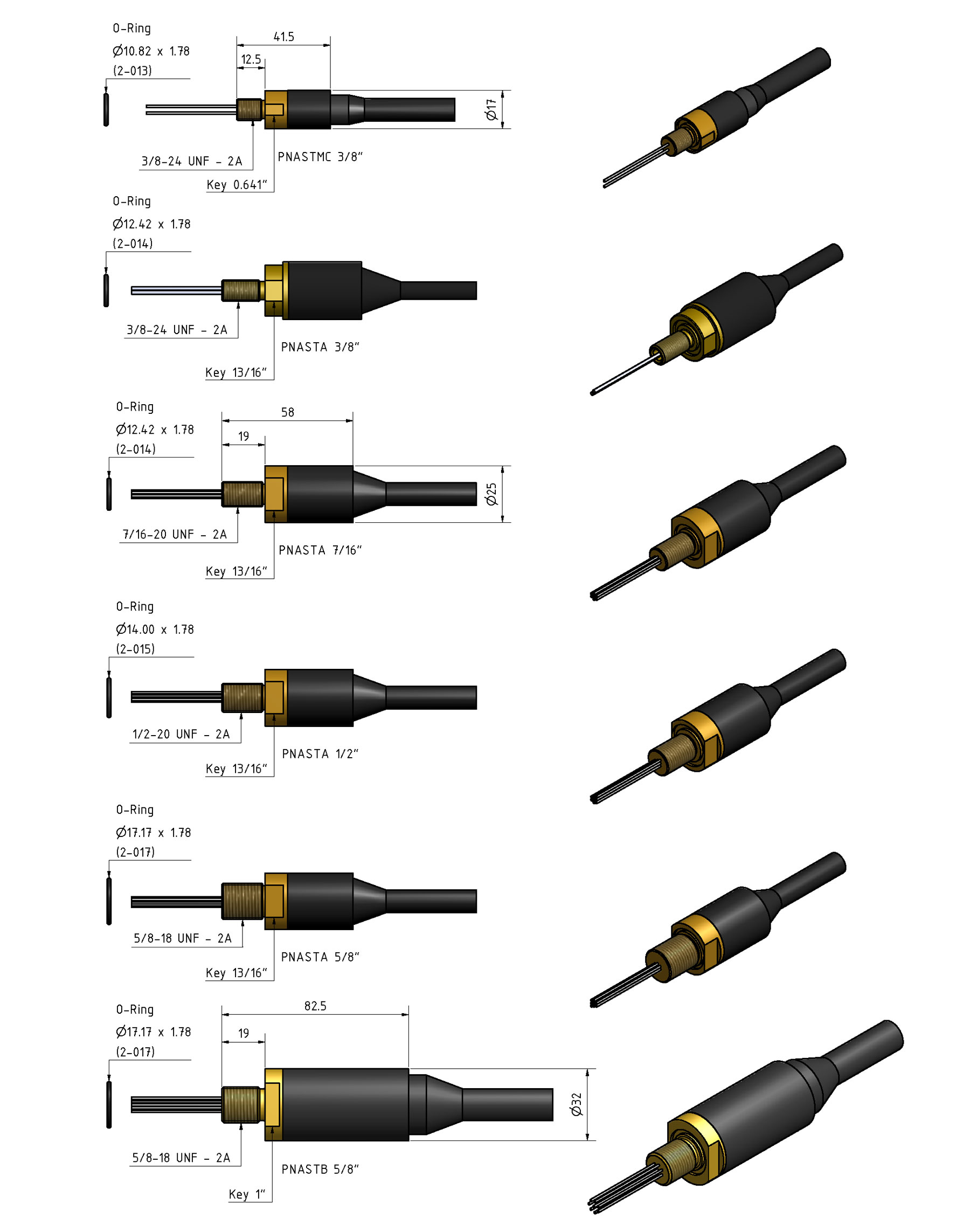

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating: 300/600 V DC/AC rms (depends on cable)
• Current rating: Depends on wire and conductor size
• Insulation resistance: > 200 MΩ
• Temperature rating (water): - 4 to 60˚C, - 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 800 bar, 11,600 psi

Material specifications

• Penetrator body: Chloroprene rubber
• Penetrator metal part: Brass, stainless steel
• Wire and conductor size: 18 AWG, 0.82 mm2 to 22 AWG, 0.33 mm2 (depends on wire quantity)
• Penetrator wire leads (30 cm, 1 ft): PTFE
• Cable outside diameter: Depends on penetrator and cable type
• O-rings: Nitrile
• Inline cable length: Customer specified
• Inline cable type: Customer specified (SubConn® cables only)

Cable colour code

Depends on corresponding SubConn^® connector and cable type.
