SubConn Power series


Request a quote for: SubConn Power series

Get your non-binding quote today and see how we can help.

The SubConn® Power series offers a high-performance, dependable connector solution to accommodate the ever growing power requirements of underwater system operators and industries. The series comprises five standard connectors, supported by a number of custom-made solutions.

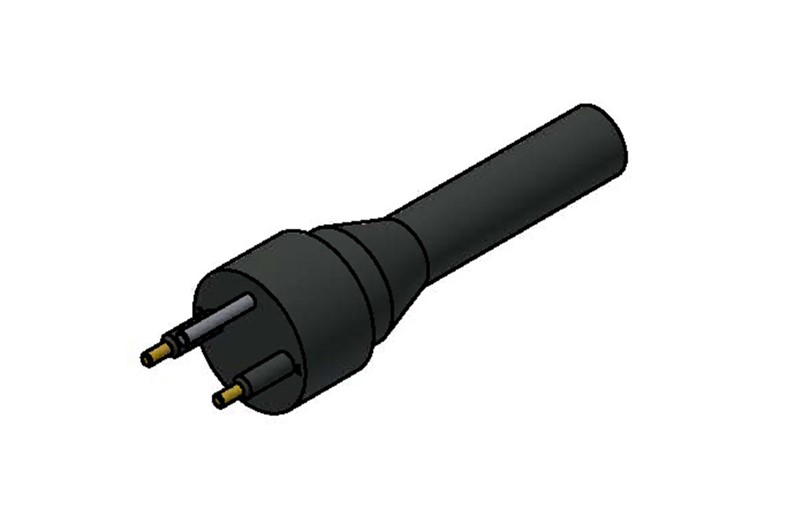

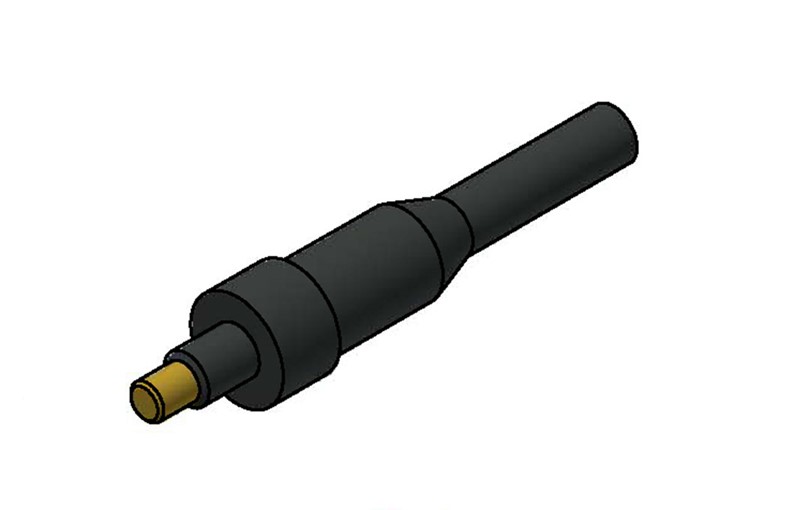

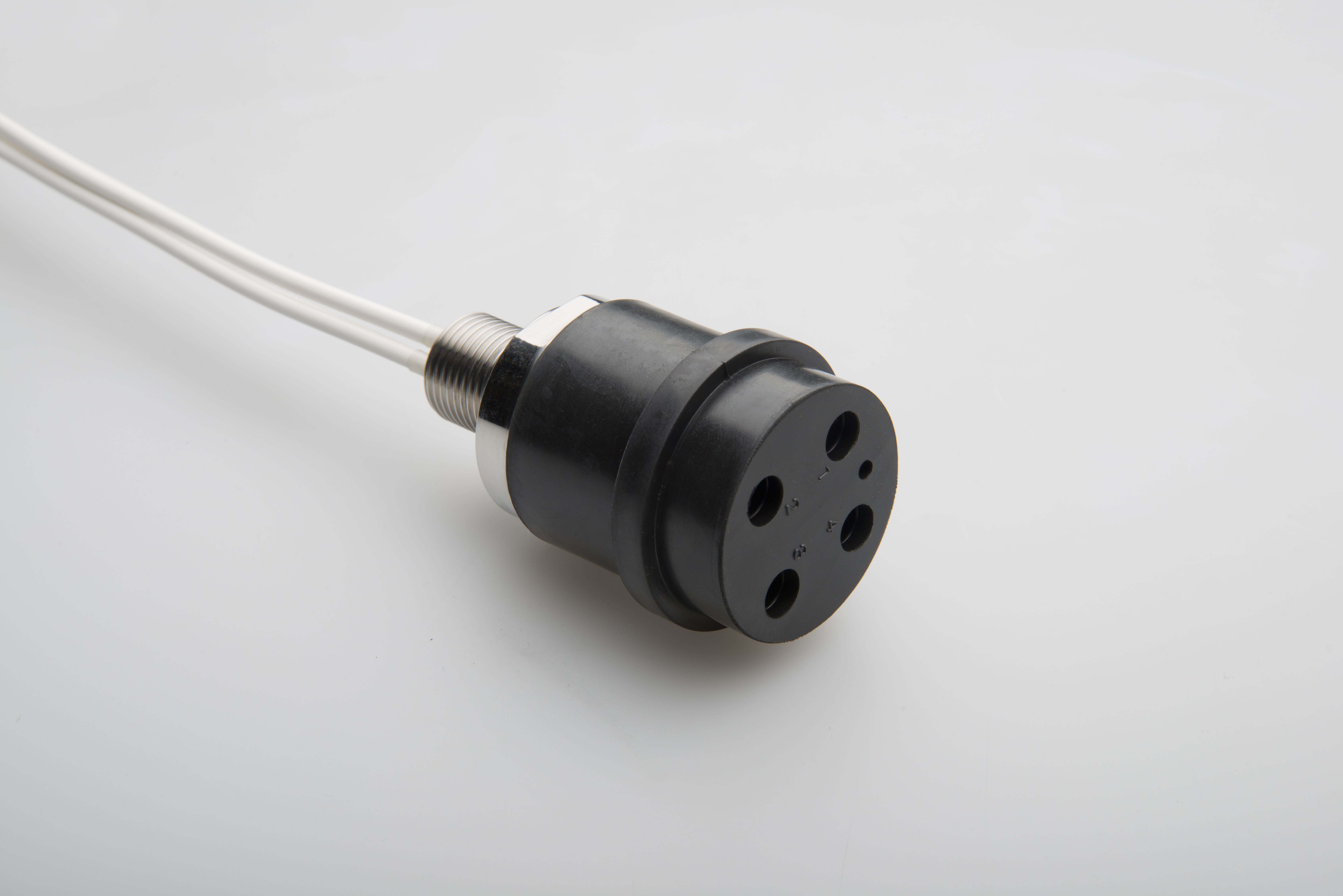

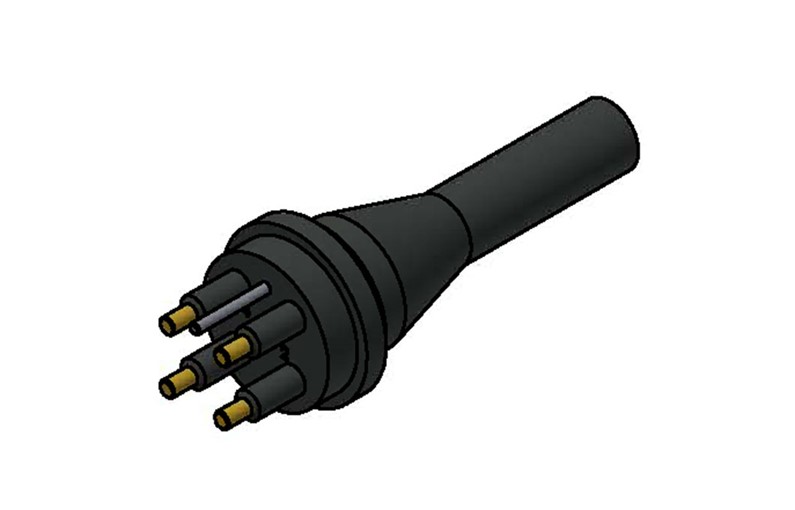

All based on the proven SubConn® connector and contact design, the SubConn® Power series includes a single contact power connector, three battery charging connectors (2, 3 and 4 contacts) and a 4-contact high power connector. The single contact power connector is designed for use with a selection of cable sizes and can be operated at up to 3 kV and 250 A. The battery charging connectors are suitable for carrying up to 25 A per contact. The 4-contact high power connector is suitable for 600 V at 50 A per contact and is supplied in standard SubConn® inline and bulkhead configurations.

For easy integration with systems and equipment, SubConn® Power series connectors are available with dedicated cables, polyoxymethylene (POM) or stainless steel locking sleeves and pressure-proof dummy connectors. All standard SubConn® cables for the SubConn® Power series are of the flexible and water-resistant synthetic rubber.



Applications

  • Power supply for offshore oil and gas, renewable energy and subsea systems
  • Power supply for remotely operated vehicles (ROV) and subsea trenching machines
  • Marine battery pack charging
  • Power supply for underwater pump units
  • Hazardous environment power supply



Options

  • Customised harness cables and direct moulding to compatible polyurethane (PUR) cables
  • Customer specified connector body material and cable lengths
  • Field installable versions for all SubConn® Power series connectors
  • Certified pressure testing to specific ocean depths
