RoHs/Reach directive
SubConn® connectors are in general compliant to latest revision of RoHs and Reach directive.
Rubber information
The measurements made on all rubber parts including 3D files are nominal values due to the fact that rubber shrinks during hardening.
Termination
- Maximum wire size for micro contacts is 18 AWG
- Maximum 2 screens or conductors can be terminated per contact
Cable
- Nominal static cable bending radius = 10 x cable OD
- Nominal dynamic cable bending radius = 15 x cable OD
- All special polyurethane (PUR) cable specifications can be found online at
Cable assembly
- All cable assemblies are measured from rubber connector face to rubber connector face
- Our standard cable assembly tolerances
- +/- 1,5” (38,1 mm) <3 m length and + - 3% ˃3 m
- Lower tolerances need approval from the production
- Min. assembly length 8" (203 mm)
Hoses for pressure balanced oil filled connectors
MacArtney holds a stock of recommended hoses for Pressure Balanced Oil Filled (PBOF) connectors.
- VersilonTM hose type C-210-A with 1/2” ID and 5/8” OD
- VersilonTM hose type C-210-A with 5/8” ID and 13/16” OD
- VersilonTM hose type C-210-A with 25.4 mm (1") ID and 31.8 mm (1 1/4") OD
Note: Please remember to order clamps at the same time as hoses.
Recommended oil for pressure balanced systems
- Recommended oil in oil compensated system
- DC 200/350 or PMX 200/350

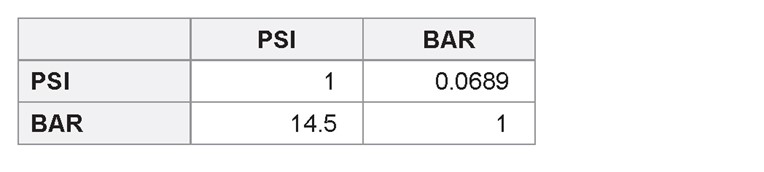

Pressure PSI/BAR
