NEXUS 8

Advanced multiplexer for subsea exploration

The MacArtney NEXUS 8 is a multiplexer capable of handling multibeam sonar, gigabit ethernet, HD video, and additional sensors carried over one single-mode optical fibre via CWDM (Coarse Wavelength Division Multiplexing).

The power switching is software controlled by a computer with at least one real or external USB com port.

The API (Application Programming Interface) is open source and can be integrated into customer software for monitoring purposes. The included software continuously monitors power consumption, sensor voltage, telemetry link, and leak alarm. Programmable eFuses protect all sensor power outputs.

The multiplexer has a Ground Fault Indicator (GFI) to detect ground faults on the sensor interfaces. The GFI and system software can be used to locate a fault source by turning on and off external sensors to shorten the time spent on failure analysis.

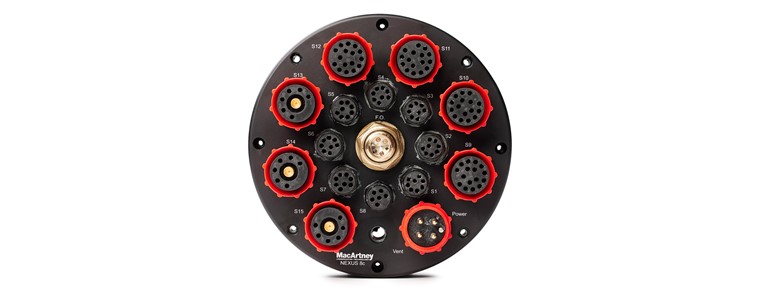

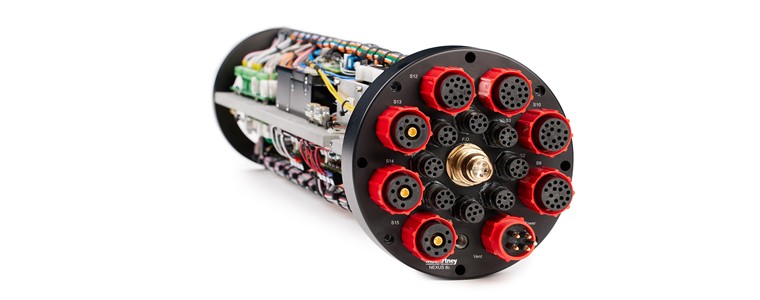

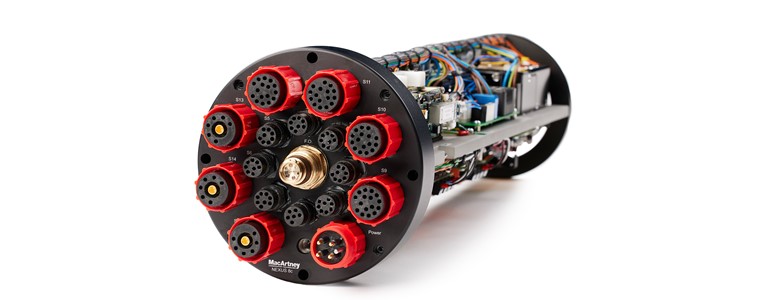

The subsea housing is manufactured from hard anodised aluminium as standard. Connectivity interfaces include SubConn^® anodised aluminium connectors, SubConn® coax (HD video) connectors, and a MacArtney OptoLink fibre optical connector. Options include a 6,000 MSW depth rating and pressure housings manufactured from titanium or high-tensile duplex steel.

Features and Benefits

• Interfaces most standard survey sensors
• Software-controlled power switching for sensors
• Interface for Gigabit Ethernet-based multibeam sonar
• Three HD video interfaces (full broadcast quality)
• Three light outputs (0-10V or RS485 control)
• Operates on one single-mode optical fibre
• FOCAL^TM inside

Applications

• ROV/ROTV multiplexer for HD video and multibeam sonar survey sensor setup
• Cable trencher systems
• Drop camera systems
• Towed camera and sensor systems
• Seabed monitoring applications, including landers and observatory systems

Options

• Customised subsea controls
• Titanium or high tensile duplex steel housing for the subsea unit
• 6,000 m depth rating
