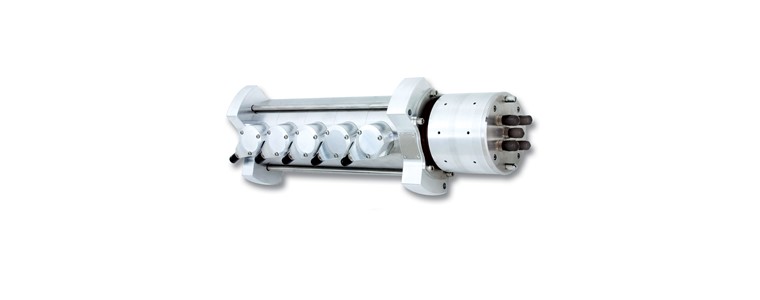

Fibre Optic Rotary Joint Model 242

1_FORJ_Model 242.jpg

Request a quote for: Fibre Optic Rotary Joint Model 242

Get your non-binding quote today and see how we can help.

This multi-pass, singlemode FORJs provide high bandwidthtransfer of optical signals on up to six separate singlemode optical fibres.

The FO242 is a multi-pass, singlemode fibre optic rotary joint (FORJ). It is passive and bidirectional, and allows the transfer of optical signals across a rotational interface on 2 to 6 separate singlemode optical fibres.

The FO242 can be combined with our electrical and / or fluid slip rings giving a single, compact package for optical signals, electrical power and fluid transfer.

Other options include fluid-filling for pressure compensation permitting operation at any ocean depth, and the combination of the FO190 to include up to 19 multimode passes.


Features

  • 2 to 6 singlemode channels
  • Can be combined with our electrical slips, fluid unions and the FO190 multimode fiber optic rotary joint
  • Alternative drive coupling arrangements are available (consult factory for specification details)
  • Tested to 10,000 psi (69,000 kPa) when fluid-filled
  • Stainless steel and aluminum construction
  • Connectorized interfaces, for easy fiber cable replacement
  • Rugged design (MIL-STD-167-1 ship vibration and MIL-STD-810D functional shock (40 g))


Typical Applications

  • Remotely operated vehicles
  • Floating production systems
  • Undersea telemetry
  • Seismic streamers
  • Radar antennas
  • Cable reels
