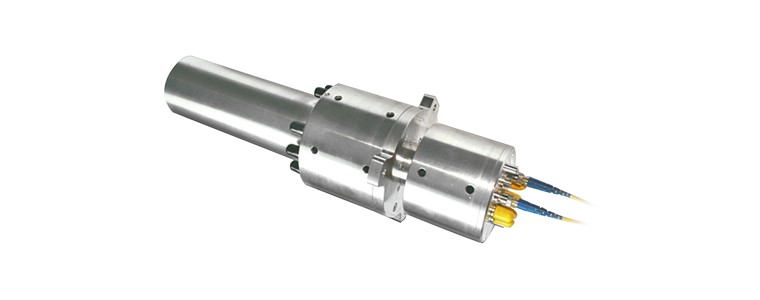

Fibre Optic Rotary Joint Model 291

1_FORJ_Model 291.jpg

Request a quote for: Fibre Optic Rotary Joint Model 291

Get your non-binding quote today and see how we can help.

The FO291 is a multi-pass, singlemode fiber optic rotary joint (FORJ). It is passive and bidirectional, and allows the transfer of optical signals across a rotational interface on 2 to 9 separate singlemode optical fibers.

The FO291 can be combined with our electrical and / or fluid slip rings, giving a single, compact package for optical signals, electrical power and fluid transfer, with ISO 9000 quality.

Other options include fluid-filling for pressure compensation permitting operation at any ocean depth, and the combination of the model 190 to include up to a total of 19 multimode passes.

Features

  • 2 to 9 singlemode channels
  • Can be combined with our electrical slip rings, fluid rotary unions and the model 190 multimode fiber optic rotary joint
  • Alternative drive coupling arrangements are available (consult factory for specification details)
  • Tested to 10,000 psi (69,000 kPa) when fluid-filled
  • Aluminum and stainless steel construction
  • Connectorized interfaces, for easy fiber cable replace-ment
  • Rugged design
    • MIL-STD-167-1 ship vibration
    • MIL-STD-810 functional shock (40g)

Benefits

  • Can be integrated into existing slip ring designs
  • Passive bidirectional optical transmission
  • Can be combined with our electrical slips and fluid unions
  • Long life

Applications

  • Remotely operated vehicles
  • Floating production systems
  • Undersea telemetry
  • Seismic streamers
  • Radar antennas
  • Cable reels
