SubConn Ethernet Circular Double O-ring - 8 and 13 contacts

Request a quote for: SubConn Ethernet Circular Double O-ring - 8 and 13 contacts

Get your non-binding quote today and see how we can help.

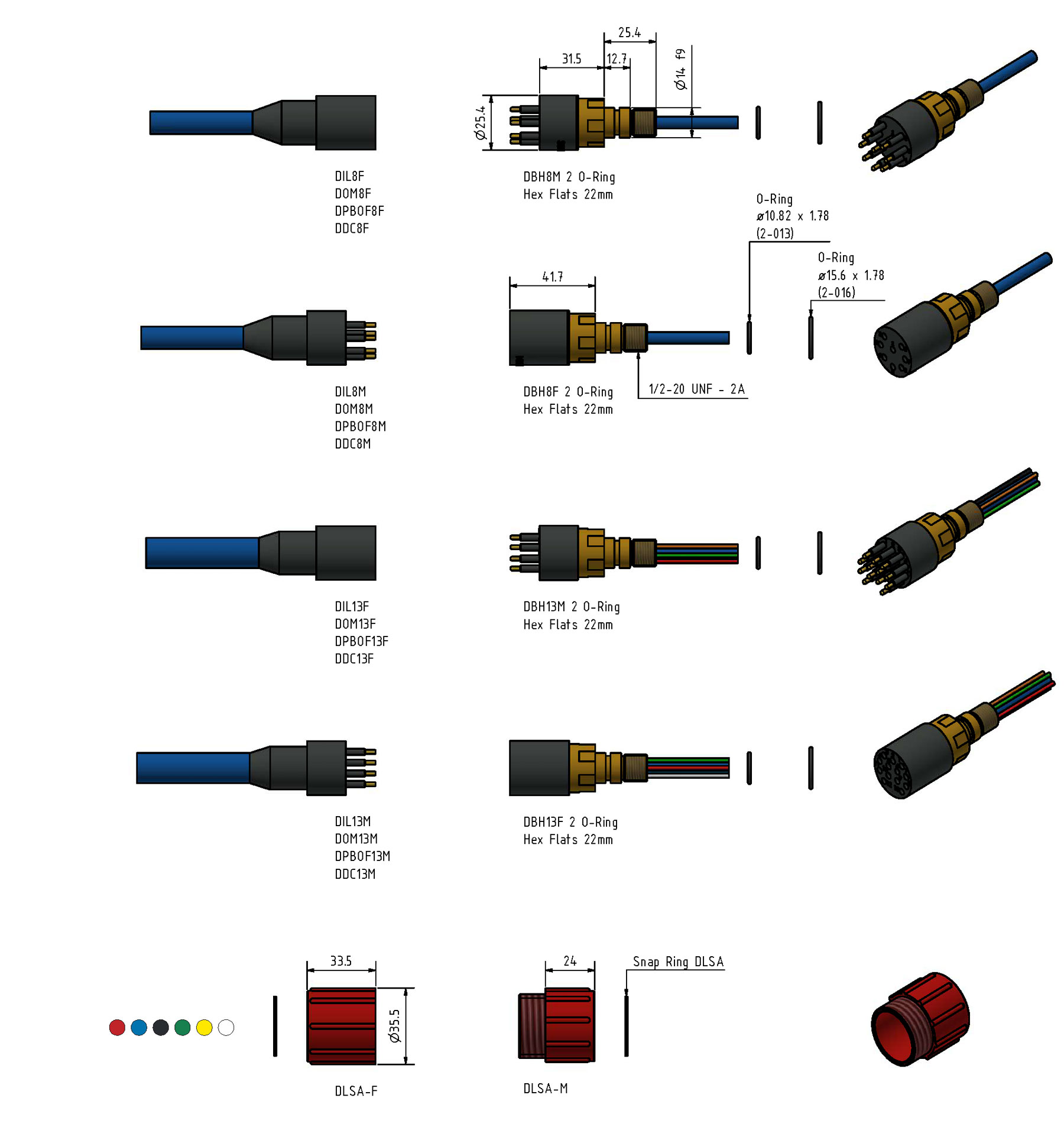

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 600 V DC/AC rms (13 contacts only)
  • Voltage rating on data wire: 250 V DC/AC rms
  • Current rating on power wire: 4 A per contact (max 16 A per connector) (13 contacts only)
  • Data rate: 1 Gbit/s
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
    Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 600 bar, 8,700 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Bulkhead body: Brass, stainless steel, titanium, anodised aluminium
  • Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
  • O-rings: Nitrile
  • Locking sleeves: POM or stainless steel
  • Snap rings: Stainless steel AISI 302
  • Bulkhead leads (3.3 ft, 100 cm): CAT 5E patch cable, 5 x 20 AWG, 0.52 mm2 coloured PTFE (13 contacts only), incl. RJ 45 connector (not installed)

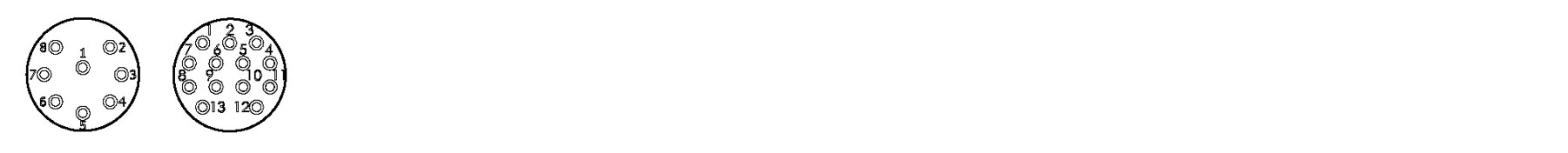

Face view (male)

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
