SubConn Metal Shell 2000 - 2, 3 and 4 contacts

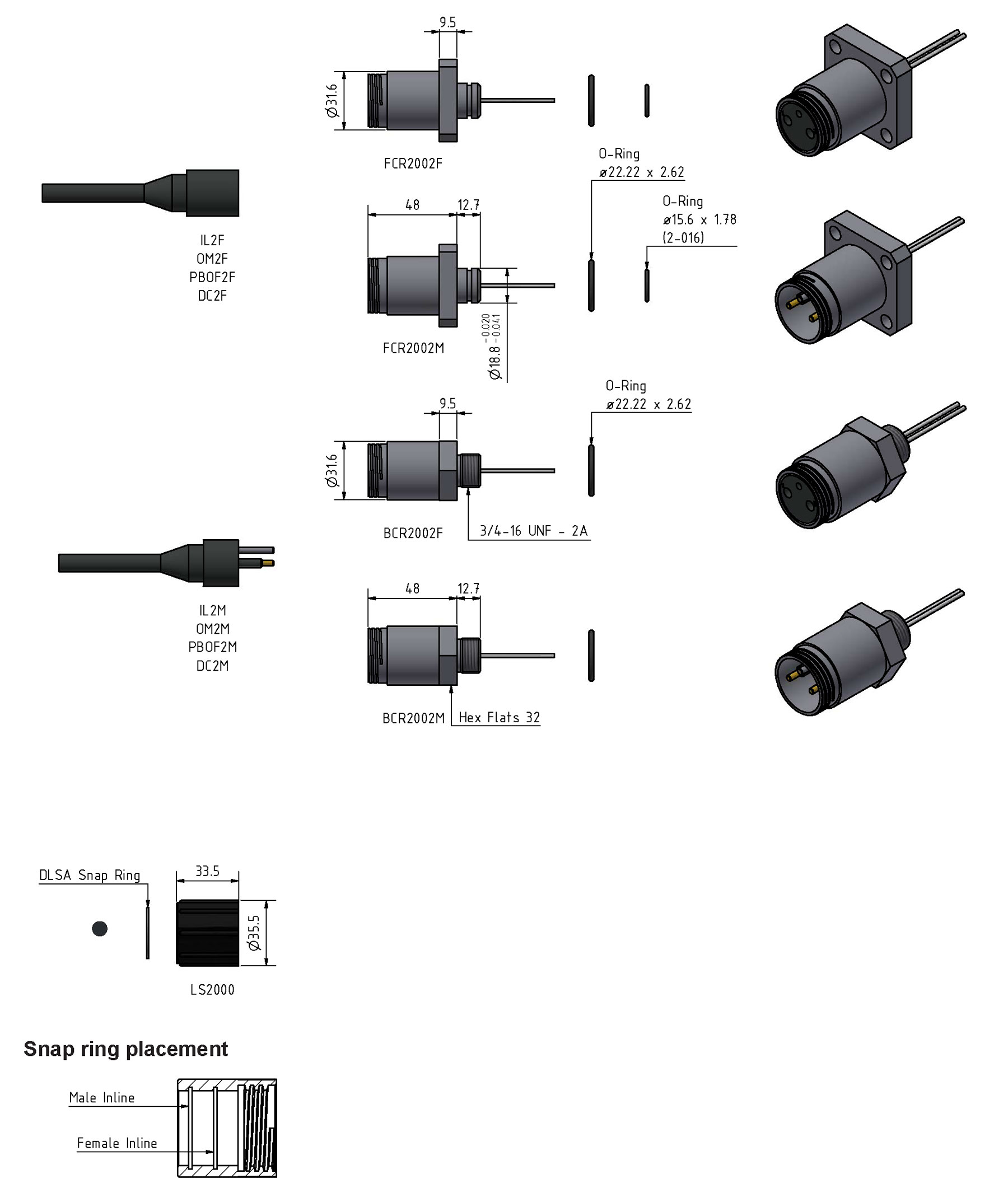

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• 2, 3 and 4 contacts voltage rating: 600 V DC/AC rms
• 2, 3 and 4 contacts current rating: 10 A per contact (max 30 A per connector)
• Insulation resistance: > 200 MΩ
• Contact resistance: < 0.01 Ω
• Wet matings: > 500
• Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 1,400 bar, 20,300 psi (mated), 800 bar, 11,600 psi (open face)

Material specifications

• Connector body: Chloroprene rubber
• Connector housing: Stainless steel AISI 316 (other materials on request)
• 2, 3 and 4 contacts: Brass UNS - C36000, Male contacts in gold plated beryllium copper
• Location pin: Stainless steel AISI 303
• O-rings: Nitrile
• Locking sleeves: POM or stainless steel
• Snap rings: Stainless steel AISI 302
• 2, 3 and 4 contact bulkhead leads (1 ft, 30 cm): 18 AWG, 0.82 mm2 white tagged PTFE

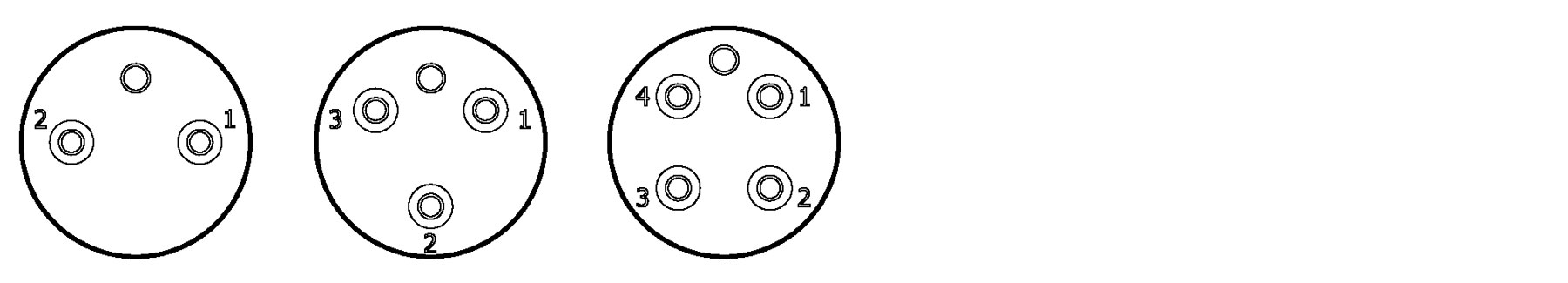

Face view (male)
