SubConn Metal Shell 2400 - 6, 8 and 10 contacts
Request a quote for: SubConn Metal Shell 2400 - 6, 8 and 10 contacts
Get your non-binding quote today and see how we can help.

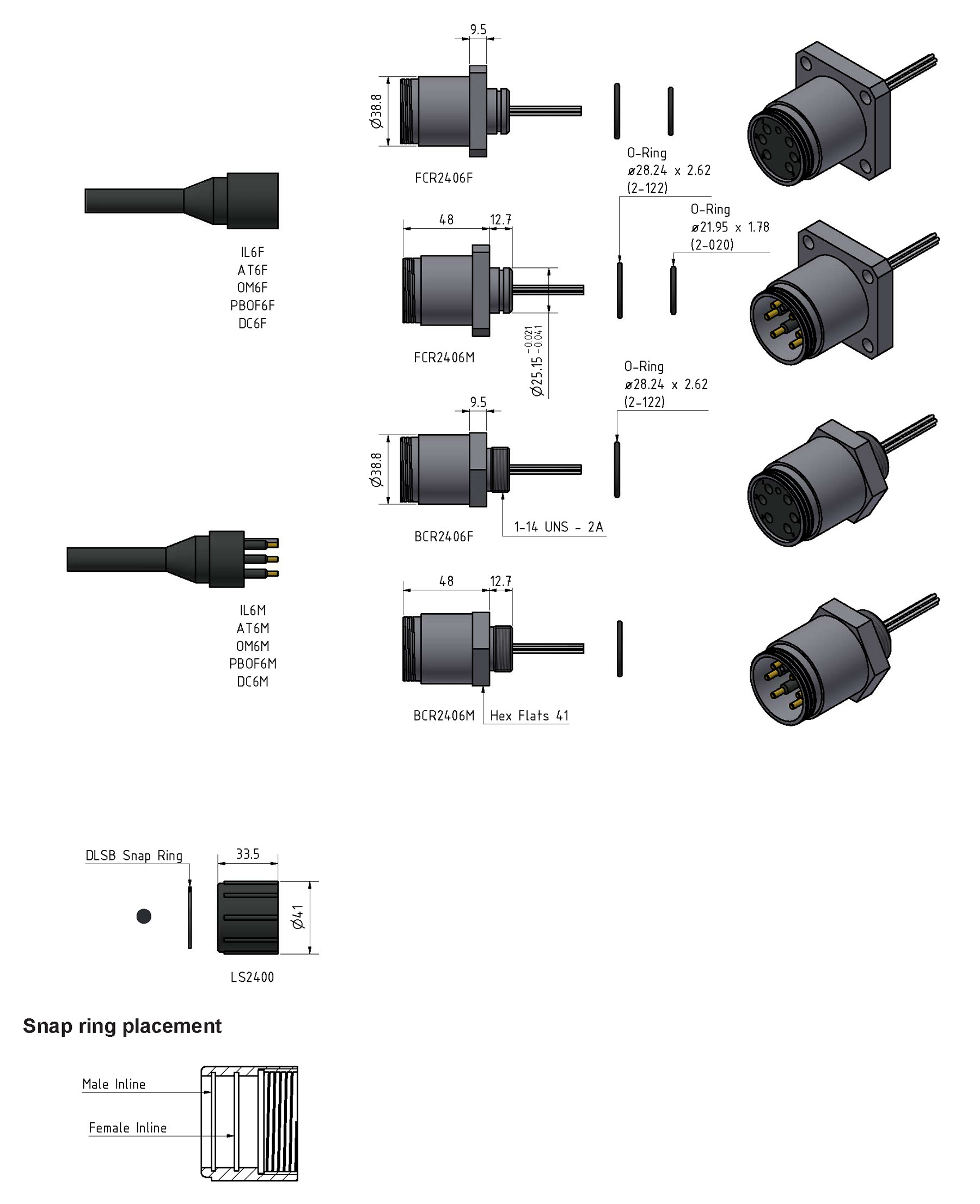

Drawing information
Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)
Connector specifications
- Voltage rating: 600 V DC/AC rms
- Current rating: 10 A per contact (max 50 A per connector)
- Insulation resistance: > 200 Mohm
- Contact resistance: < 0.01 ohm
- Wet matings: > 500 (open face rated)
- Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
- Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
- Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
- Qualified pressure tested: 800 bar, 11,600 psi
Material specifications
- Connector body: Chloroprene rubber
- Connector housing: Stainless steel AISI 316 (other materials on request)
- Contacts: Brass UNS - C36000
- Location pin: Stainless steel AISI 303
- O-rings: Nitrile
- Locking sleeves: POM or stainless steel
- Snap rings: Stainless steel AISI 302
- Bulkhead leads: (1 ft, 30 cm) 18 AWG, 0.82 mm2 white tagged PTFE

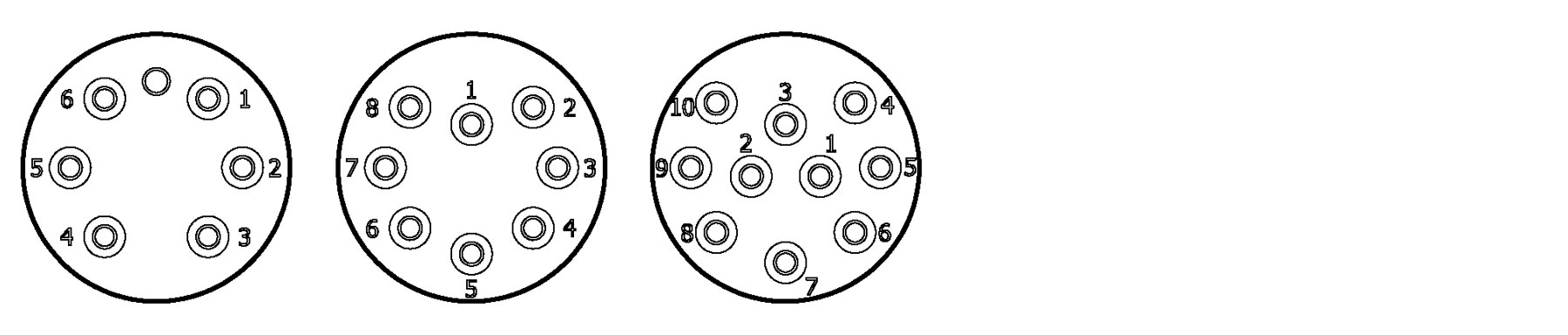

Face view (male)
3D files
Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.
