SubConn Micro Low Profile - 3 contacts

Request a quote for: SubConn Micro Low Profile - 3 contacts

Get your non-binding quote today and see how we can help.

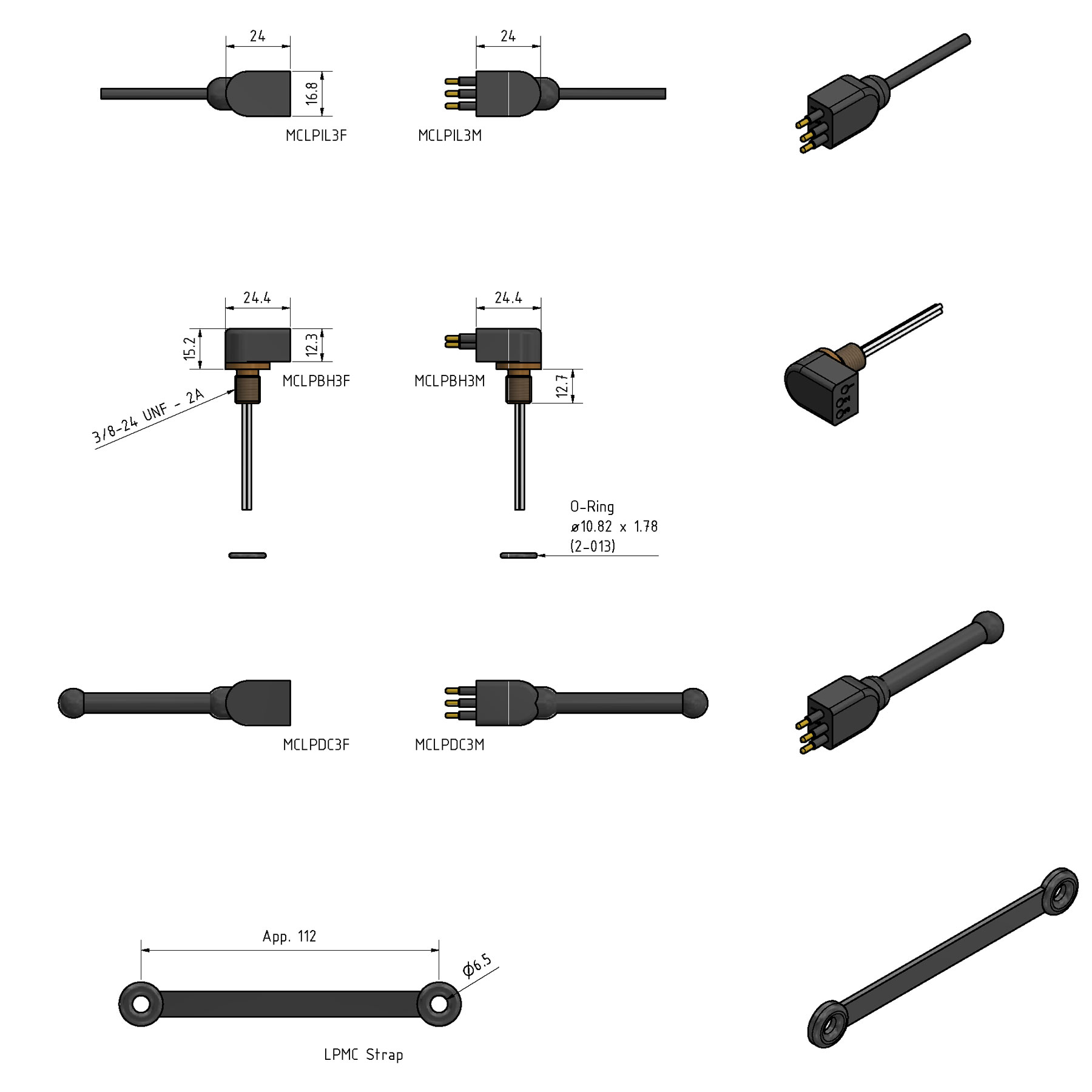

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 300 V DC/AC rms
  • Current rating: 5 A per contact (max 10 A per connector)
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 800 bar, 11,600 psi
  • Depth rating PEEK: 300 bar, 4,350 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Bulkhead body: Brass or stainless steel
  • Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
  • O-rings: Nitrile
  • Locking strap: Chloroprene rubber
  • Inline cable (2 ft, 60 cm): 20 AWG, 0.52 mm2 synthetic rubber
  • Bulkhead leads (1 ft, 30 cm): 20 AWG, 0.52 mm2 coloured PTFE

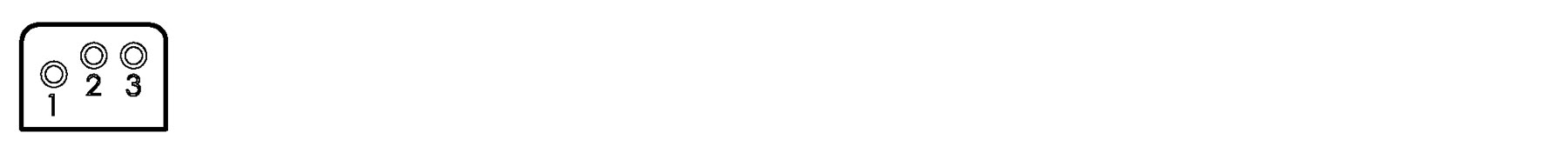

Face view (male)



Inline cable colour code

1: Black
2: White
3: Red


Nominal cable outside diameter (OD)

3 conductor cable 0.250’’, 6.35 mm

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
