SubConn Micro Low Profile - 7 and 9 contacts

Request a quote for: SubConn Micro Low Profile - 7 and 9 contacts

Get your non-binding quote today and see how we can help.

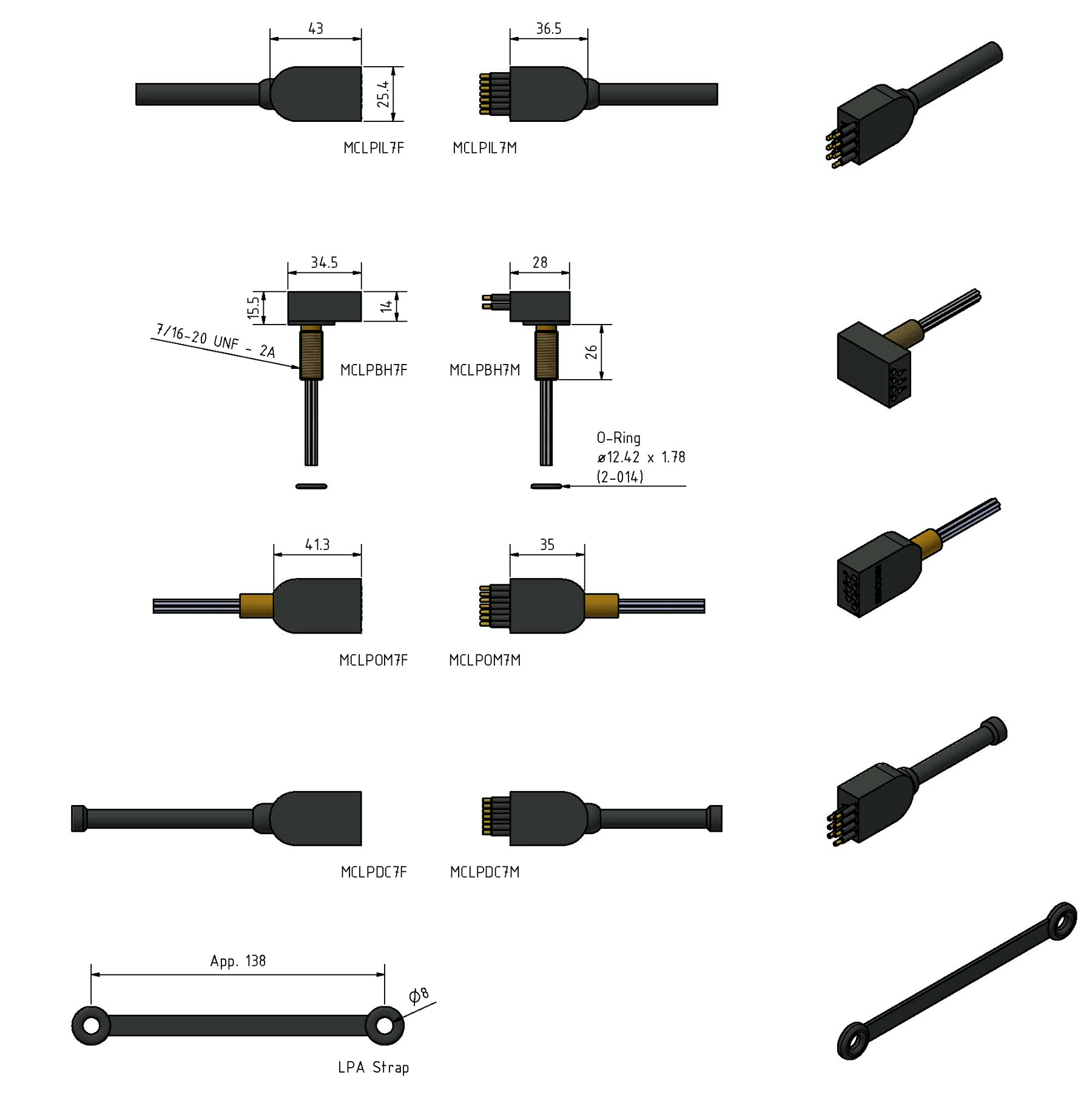

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 300 V DC/AC rms
  • Current rating: 5 A per contact (max 20 A per connector)
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0.01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Qualified pressure tested: 800 bar, 11,600 psi
  • Depth rating PEEK: 300 bar, 4,350 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
  • Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
  • O-rings: Nitrile
  • Locking strap: Chloroprene rubber
  • Inline cable (2 ft, 60 cm): 20 AWG, 0.52 mm2 synthetic rubber
  • Bulkhead leads (1 ft, 30 cm): 20 AWG, 0.52 mm2 coloured PTFE
  • OM leads (3", 7 cm): 20 AWG, 0.52 mm2 coloured PTFE

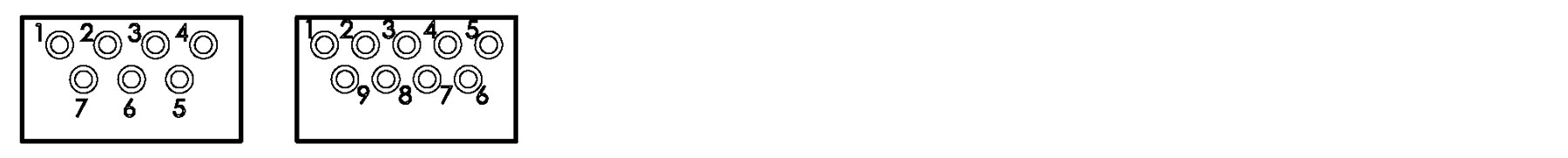

Face view (male)


Inline cable colour code

1: Black
2: White
3: Red
4: Green
5: Orange
6: Blue
7: White/black
8: Red/black*
9: Green/black
10: Orange/black**

* Micro 7 contacts connector uses an 8 conductor cable (only 7 conductors are used)
** Micro 9 contacts connector uses a 10 conductor cable (only 9 conductors are used)


Nominal cable outside diameter (OD)

8 conductor cable 0.363’’, 9.2 mm
10 conductor cable 0.406’’, 10.3 mm

7 and 9 conductor cables are not available, therefore 8 and 10 conductor cables are to be used.

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
