SubConn Nano - 6 contacts

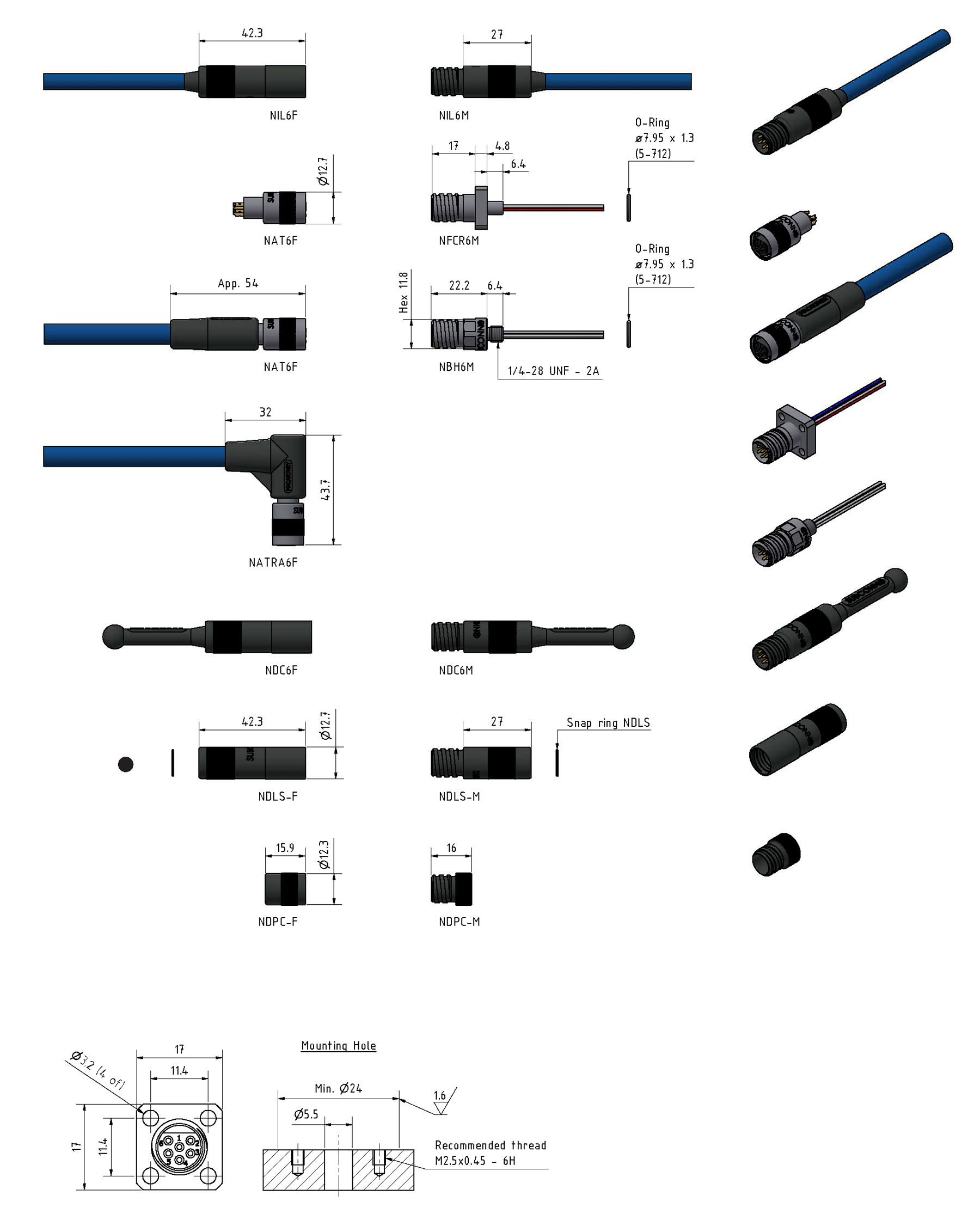

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector specifications

• Voltage rating: 300 V DC/AC rms
• Contacts current rating: 3 A per contact (max 10 A per connector)
• Insulation resistance: 200 MΩ
• Contact resistance: < 0.01 Ω
• Wet/splash matings: >500
• Temperature rating (water): -4 to 60˚C, 25 to 140˚F
• Temperature rating (air): -40 to 60˚C, - 40 to 140˚F
• Storage temperature rating: 40 to 60˚C, - 40 to 140˚F
• Qualified pressure tested: 700 bar (open face)
• Open face rated: 700 bar

Material specifications

• Connector body: Chloroprene rubber, Titanium
• Bulkhead body: Titanium
• Contacts: Female sockets in gold plated brass UNS - C36000, Male contacts in gold plated beryllium copper
• O-rings: Nitrile
• Locking sleeves (NAT6F): Anodised titanium
• Locking sleeves (NIL6): POM
• Bulkhead leads (12"): 24 AWG, 0,2 mm2 coloured PTFE

Face view (male)

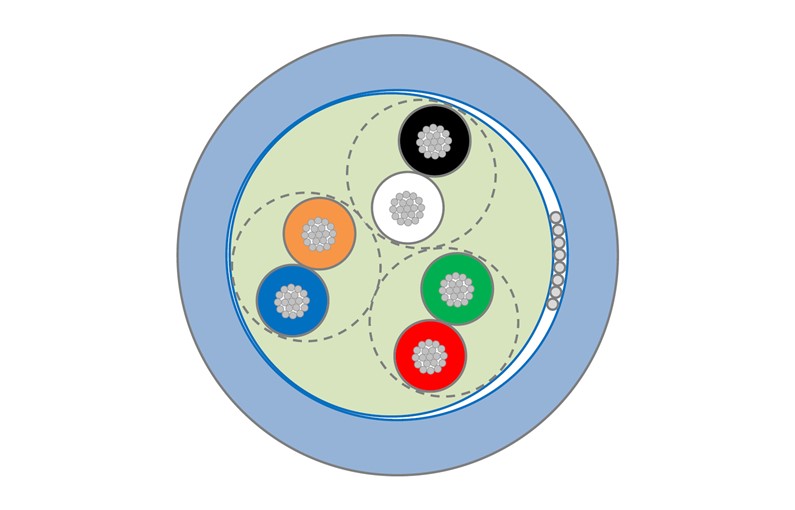

Inline cable colour code

1-2: Black/white*
3-4: Red/Green*
5-6: Orange/Blue*

* Twisted pairs

Leads colour code

1: Black
2: White
3: Red
4: Green
5: Orange
6: Blue
