SubConn Power Battery - 2, 3 and 4 contacts

Request a quote for: SubConn Power Battery - 2, 3 and 4 contacts

Get your non-binding quote today and see how we can help.

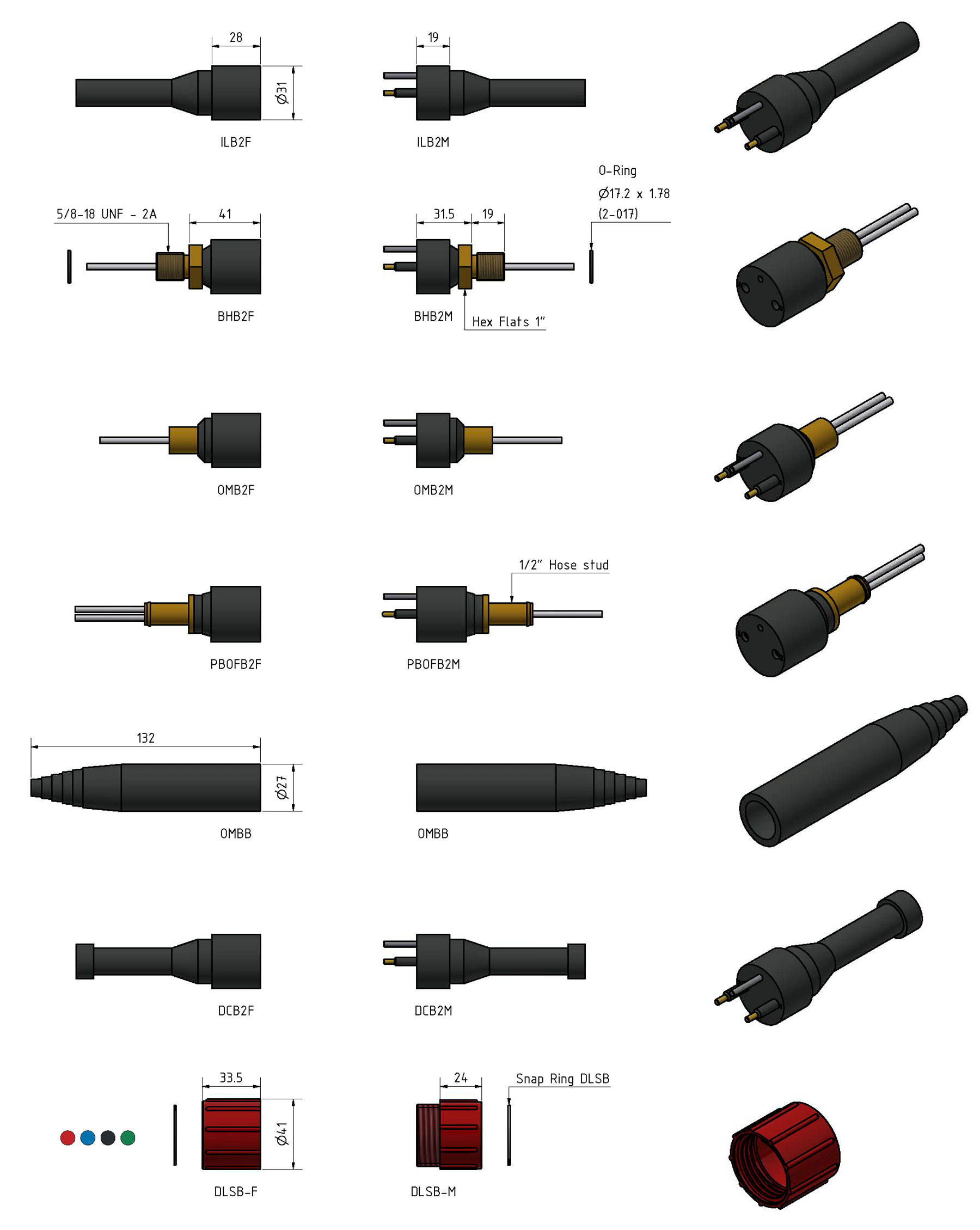

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)


Connector specifications

  • Voltage rating: 600 V DC/AC rms
  • Current rating: 25 A per contact (max 50 A per connector)
  • Insulation resistance: > 200 Mohm
  • Contact resistance: < 0,01 ohm
  • Wet matings: > 500 (open face rated)
  • Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
  • Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
  • Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
  • Design depth rating: 1,400 bar, 20,000 psi
  • Qualified pressure tested: 800 bar, 11,600 psi
  • Depth rating PEEK: 300 bar, 4,350 psi


Material specifications

  • Connector body: Chloroprene rubber
  • Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
  • Contacts: Gold plated brass UNS - C36000
  • Location pin: Stainless steel AISI 303
  • O-rings: Nitrile
  • Locking sleeves: POM or stainless steel
  • Snap rings: Stainless steel AISI 302
  • 2 and 3 conductor inline cable (2 ft, 60 cm): 10 AWG, 5.26 mm2 synthetic rubber
  • 4 conductor inline cable (2 ft, 60 cm): 12 AWG, 3.30 mm2 synthetic rubber
  • 2 and 3 contact bulkhead and PBOF leads (1 ft, 30 cm): 10 AWG, 5.26 mm2 white tagged PTFE
  • 2 and 3 contact OM leads (3", 7 cm): 10 AWG, 5.26 mm2 white tagged PTFE
  • 4 contact bulkhead and PBOF leads (1 ft, 30 cm): 12 AWG, 3.31 mm2 white tagged PTFE
  • 4 contact OM leads (3", 7 cm): 12 AWG, 3.31 mm2 white tagged PTFE

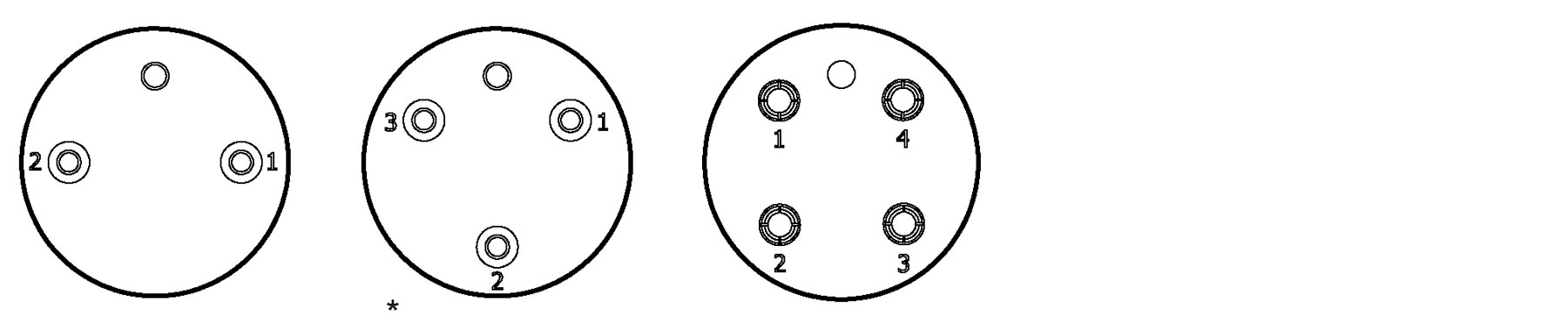

Face view (male)




Inline cable colour code

1: Black
2: White
3: Red
4: Green

(3 conductor cable colour code: 1 black, 2 white, 3 green)


Nominal cable outside diameter (OD)

2 conductor cable 0.640”, 16.3 mm
3 conductor cable 0.671”, 17.0 mm
4 conductor cable 0.660”, 16.8 mm

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
