SubConn Metal Shell 2000 - 2, 3, 4 contacts and Micro 10 and 12 contacts

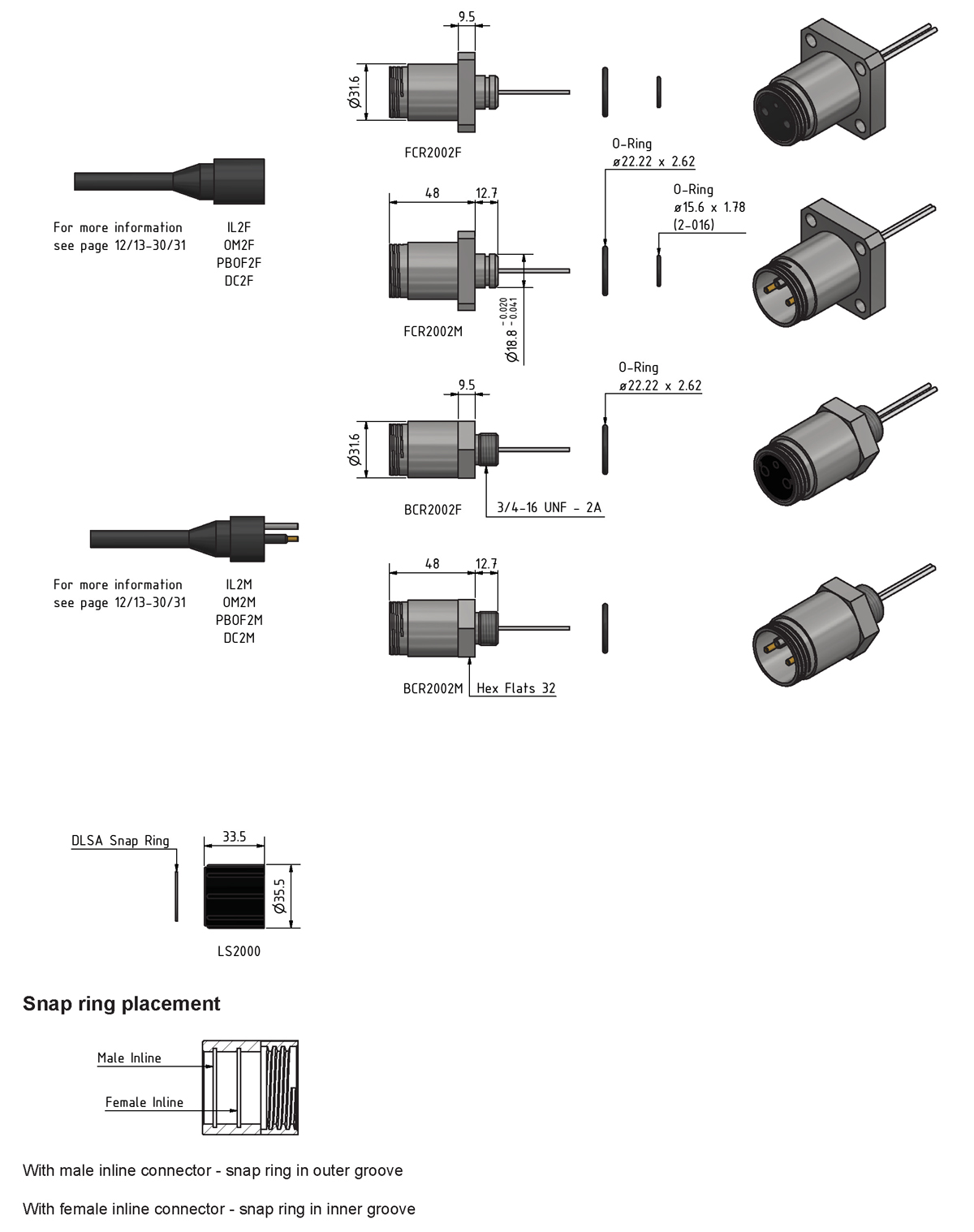

Drawing information
Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)
Connector specifications
- 2, 3 and 4 contacts voltage rating: 600 V DC/AC rms
- 10 and 12 contacts voltage rating: 300 V DC/AC rms
- 2, 3 and 4 contacts current rating: 10 A per contact (max 30 A per connector)
- 10 and 12 contacts current rating: 5 A per contact (max 30 A per connector)
- Insulation resistance: > 200 Mohm
- Contact resistance: < 0.01 ohm
- Wet matings: > 500 (open face rated)
- Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
- Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
- Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
- Qualified pressure tested: 800 bar, 11,600 psi
Material specifications
- Connector body: Chloroprene rubber
- Connector housing: Stainless steel AISI 316 (other materials on request)
- 2, 3 and 4 contacts: Brass UNS - C36000
- 10 and 12 contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
- Location pin: Stainless steel AISI 303
- O-rings: Nitrile
- Locking sleeves: POM or stainless steel
- Snap rings: Stainless steel AISI 302
- 2, 3 and 4 contact: bulkhead leads (1 ft, 30 cm) 18 AWG, 0.82 mm2 white tagged PTFE
- 10 and 12 contact: bulkhead leads (1 ft, 30 cm) 20 AWG, 0.52 mm2 white tagged PTFE

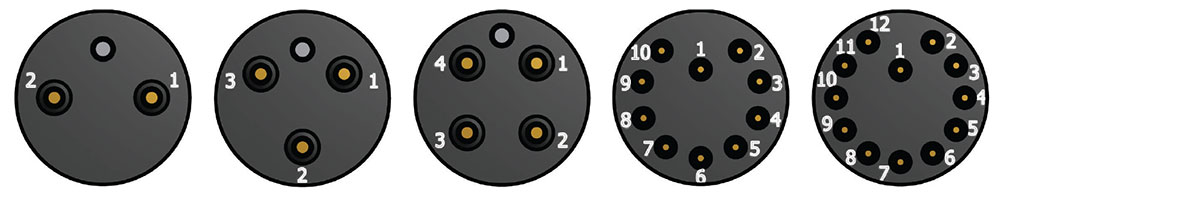

Face view (male)
3D files
Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.
