SubConn Power series

Request a Quote

SubConn_Power_BH1M.jpg SubConn_Power_HPBH4F.jpg SubConn_Power_HPIL4M.jpg

The SubConn® Power series offers a high-performance, dependable connector solution to accommodate the ever growing power requirements of underwater system operators and industries. The series comprises five standard connectors, supported by a number of custom-made solutions.

All based on the proven SubConn® connector and contact design, the SubConn® Power series includes a single contact power connector, three battery charging connectors (2, 3 and 4 contacts) and a 4-contact high power connector. The single contact power connector is designed for use with a selection of cable sizes and can be operated at up to 3 kV and 250 A. The battery charging connectors are suitable for carrying up to 25 A per contact. The 4-contact high power connector is suitable for 600 V at 50 A per contact and is supplied in standard SubConn® inline and bulkhead configurations.

For easy integration with systems and equipment, SubConn® Power series connectors are available with dedicated cables, polyoxymethylene (POM) or stainless steel locking sleeves and pressure-proof dummy connectors. All standard SubConn® cables for the SubConn® Power series are of the flexible and water-resistant chloroprene rubber.



Applications

  • Power supply for offshore oil and gas, renewable energy and subsea systems
  • Power supply for remotely operated vehicles (ROV) and subsea trenching machines
  • Marine battery pack charging
  • Power supply for underwater pump units
  • Hazardous environment power supply



Options

  • Customised harness cables and direct moulding to compatible polyurethane (PUR) cables
  • Customer specified connector body material and cable lengths
  • Field installable versions for all SubConn® Power series connectors
  • Certified pressure testing to specific ocean depths

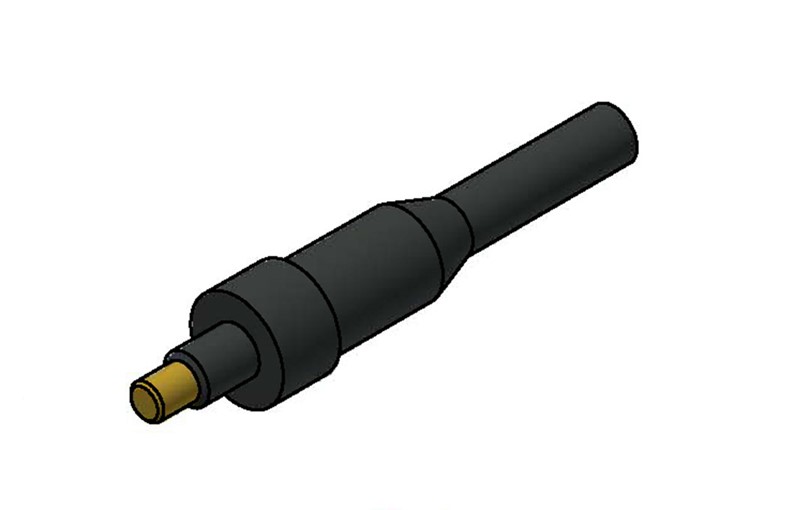

SubConn Power - 1 contact

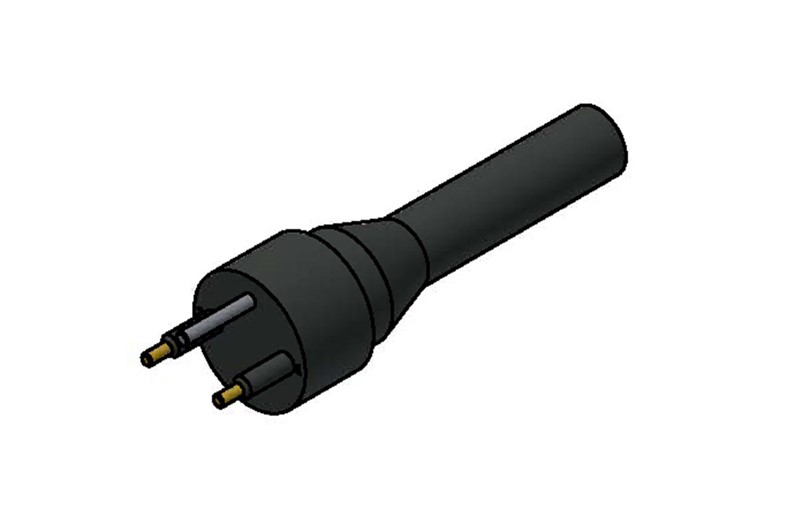

SubConn Power Battery - 2, 3 and 4 contacts

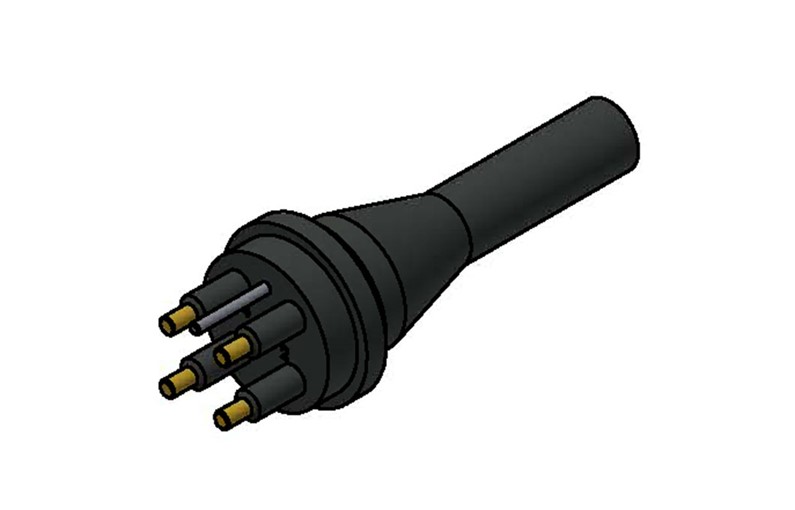

SubConn High Power - 4 contacts

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

Power
Attachable (AT)
HPAT4F.stp HPAT4M.stp
Bulkhead (BH)
Adapter.stp BH1F(3KV).stp BH1F.stp BH1M(3 KV).stp BH1M.stp BHB2F.stp BHB2M.stp BHB3F.stp BHB3M.stp BHB4F.stp BHB4M.stp HPBH4F.stp HPBH4M.stp
Dummy connector (DC)
DC1F.stp DC1M.stp DCB2F.stp DCB2M.stp DCB3F.stp DCB3M.stp DCB4F.stp DCB4M.stp HPDC4F.stp HPDC4M.stp
Inline (IL)
HPIL4F.stp HPIL4M.stp IL1F.stp IL1M.stp ILB2F.stp ILB2M.stp ILB3F.stp ILB3M.stp ILB4F.stp ILB4M.stp
Overmould (OM)
HPOM4F.stp HPOM4M.stp OM1F.stp OM1M.stp OMB2F.stp OMB2M.stp OMB3F.stp OMB3M.stp OMB4F.stp OMB4M.stp
Pressure balanced oil filled (PBOF)
HPPBOF4F.stp HPPBOF4M.stp PBOFB2F.stp PBOFB2M.stp PBOFB3F.stp PBOFB3M.stp PBOFB4F.stp PBOFB4M.stp

X_B files

Power
Bulkhead (BH)
BH1F(3KV).x_b BH1F.x_b BH1M(3 KV).x_b BH1M.x_b HPBH4F.x_b
Dummy connector (DC)
DC1F.x_b DC1M.x_b
Inline (IL)
IL1F.x_b IL1M.x_b HPIL4F.x_b HPIL4M.x_b
Overmould (OM)
OM1F.x_b OM1M.x_b
Pressure balanced oil filled (PBOF)
PBOFB2F.x_b PBOFB2M.x_b PBOFB3F.x_b PBOFB3M.x_b PBOFB4F.x_b PBOFB4M.x_b
